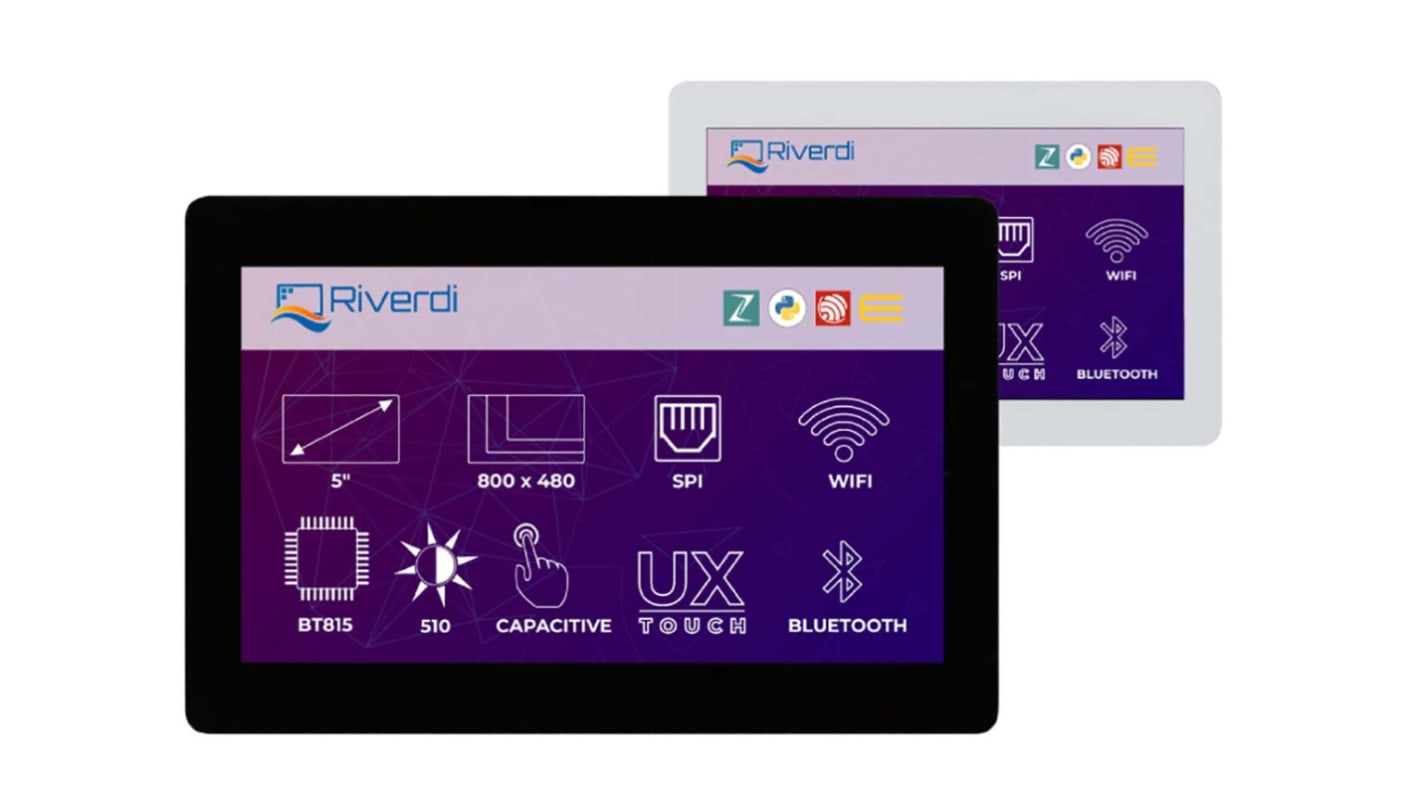

Riverdi RVT50UQENWC04 TFT LCD Colour Display / Touch Screen, 5in, 800 x 480pixels
- N° de stock RS:
- 193-1174
- Référence fabricant:
- RVT50UQENWC04
- Fabricant:
- Riverdi
Sous-total (1 unité)*
111,42 €
(TVA exclue)
134,82 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Dernier stock RS
- 1 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité |
|---|---|
| 1 + | 111,42 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 193-1174
- Référence fabricant:
- RVT50UQENWC04
- Fabricant:
- Riverdi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Riverdi | |
| Diagonal Display Size | 5in | |
| Interface Type | SPI | |
| Resolution | 800 x 480pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 108 x 65mm | |
| Supply Voltage | 7 V | |
| Touch Screen Type | Capacitive | |
| Backlight Type | LED | |
| AC or DC Input Voltage | dc | |
| Dimensions | 136 x 9.2 x 92.8mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 510cd/m² | |
| Operating Temperature Range | -20 → +70°C | |
| Voltage Rating | 3.3V | |
| Display Type | TFT | |
| Viewing Area Height | 108mm | |
| Viewing Area Width | 64.8mm | |
| Depth | 9.2mm | |
| Width | 136mm | |
| Height | 92.8mm | |
| Current Rating | 1.1A | |
| Sélectionner tout | ||
|---|---|---|
Marque Riverdi | ||
Diagonal Display Size 5in | ||
Interface Type SPI | ||
Resolution 800 x 480pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 108 x 65mm | ||
Supply Voltage 7 V | ||
Touch Screen Type Capacitive | ||
Backlight Type LED | ||
AC or DC Input Voltage dc | ||
Dimensions 136 x 9.2 x 92.8mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 510cd/m² | ||
Operating Temperature Range -20 → +70°C | ||
Voltage Rating 3.3V | ||
Display Type TFT | ||
Viewing Area Height 108mm | ||
Viewing Area Width 64.8mm | ||
Depth 9.2mm | ||
Width 136mm | ||
Height 92.8mm | ||
Current Rating 1.1A | ||
- Pays d'origine :
- PL
The Riverdi RiTFT-50-IOT series Intelligent Display Solutions has a TFT, Transmissive, Normally white type of LCD. It has a RGB Vertical Stripe Pixel Arrangement.
Input Voltage 3.3 V
Colour Depth 16.7M
Interface Connection WiFi, Bluetooth, USB
Colour Depth 16.7M
Interface Connection WiFi, Bluetooth, USB
