4D Systems SK-gen4-IoD-24T LCD Colour Display Touch Screen, 60.96 mm, 240 x 320 pixel

N° de stock RS:: 136-9924
Référence fabricant:: SK-gen4-IoD-24T
Fabricant:: 4D Systems

4D Systems SK-gen4-IoD-24T LCD Colour Display Touch Screen, 60.96 mm, 240 x 320 pixel

Offre groupée disponible

Sous-total (1 unité)*

88,01 €

(TVA exclue)

106,49 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

16 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 - 4	88,01 €
5 - 9	85,72 €
10 +	83,60 €

*Prix donné à titre indicatif

N° de stock RS:: 136-9924
Référence fabricant:: SK-gen4-IoD-24T
Fabricant:: 4D Systems

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	4D Systems
	Diagonal Display Size	60.96mm
	Product Type	LCD Colour Display
	Interface Type	UART
	Screen Resolution	240 x 320 pixel
	Current	200mA
	Touch Screen	Yes
	Viewing Area Dimensions	37 x 49 mm
	Touch Screen Type	Resistive
	Backlight Type	LED
	Minimum Supply Voltage	5V dc
	Maximum Supply Voltage	5V dc
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Height	7.2mm
	Depth	48.96mm
	Width	44.8mm
	Standards/Approvals	CE
	Brightness	182cd/m²
	Series	gen4
	Display Type	LCD
	Contrast Ratio	250:1

	Sélectionner tout
	Marque 4D Systems
	Diagonal Display Size 60.96mm
	Product Type LCD Colour Display
	Interface Type UART
	Screen Resolution 240 x 320 pixel
	Current 200mA
	Touch Screen Yes
	Viewing Area Dimensions 37 x 49 mm
	Touch Screen Type Resistive
	Backlight Type LED
	Minimum Supply Voltage 5V dc
	Maximum Supply Voltage 5V dc
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Height 7.2mm
	Depth 48.96mm
	Width 44.8mm
	Standards/Approvals CE
	Brightness 182cd/m²
	Series gen4
	Display Type LCD
	Contrast Ratio 250:1

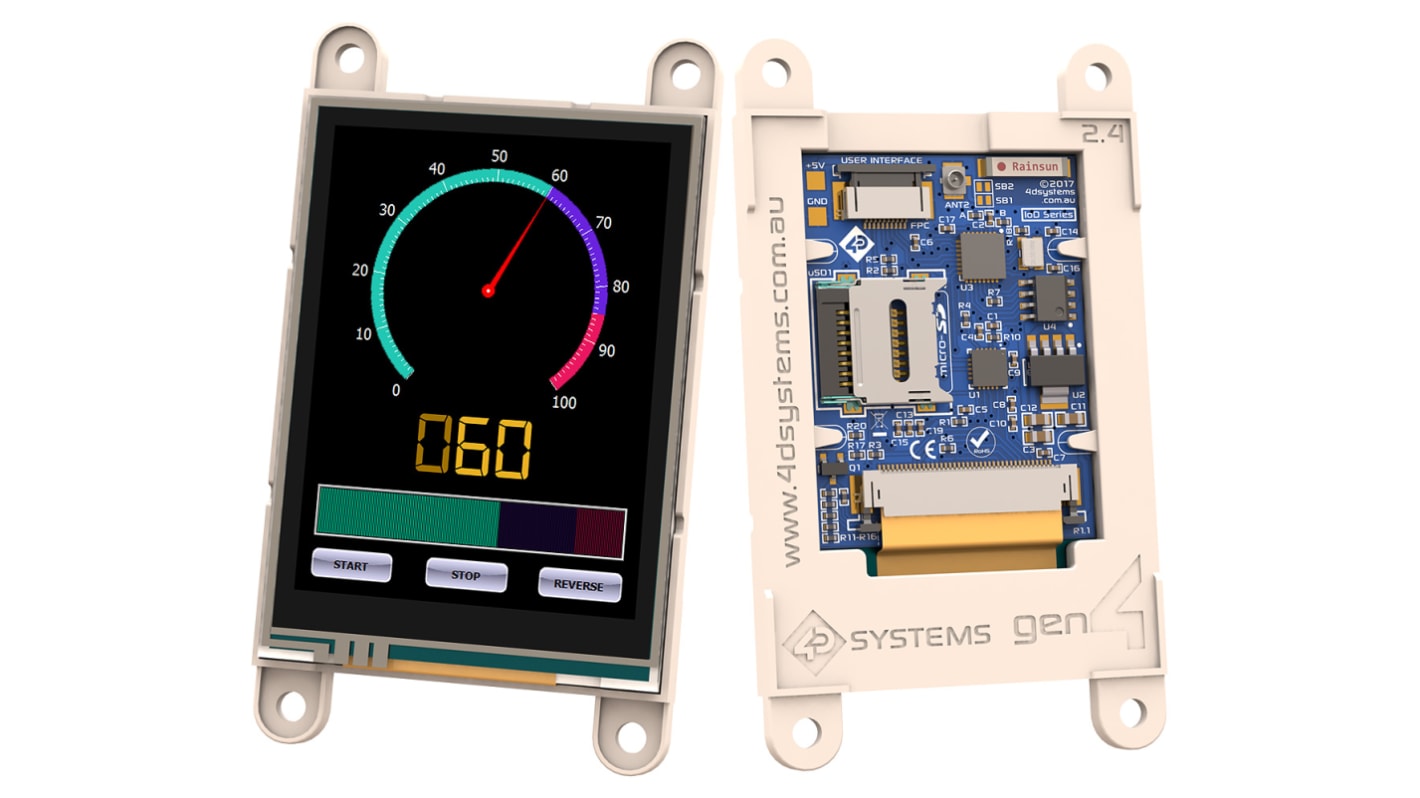

gen4-IoD WiFi LCD Display Starter Kit with Resistive Touch

The gen4-IoD (Internet of Displays) series from 4D Systems is a range of WiFi enabled touchscreen LCD displays that provide a compact and easy to integrate solution for human-machine interface (HMI) applications.

The processing and WiFi capability is provided by the Espressif ESP8266 SoC. The ESP8266 can utilise the on-board ceramic chip antenna, or an external antenna via a U.FL connector if desired.

The design of the gen4 series makes integrating an HMI display into a final product easy. The display module features a 10-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module, as the display circuitry fits comfortably within the mounting base to maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities.

gen4-IoD displays are programmed using the intuitive Workshop4, 4D System’s IDE that provides multiple development environments and an extensive library of graphics and touch functions. Alternatively the Arduino IDE can also be used.

Features

320 x 240 resolution with RGB 65k true to life colours

Built-in WiFi connectivity

802.11 b/g/n/e/i support

4-wire resistive touch

4 Mbit (512 kb) of flash memory for user application code and data

128 kb of SRAM of which 80 kb is available for the user

10-pin FFC connection for all signals, power, communication and programming

On-board microSD connector for multimedia storage and data logging

4.0 V to 5.5 V operation (single supply)

CE, REACH and RoHS compliant

Kit Contents

1 x gen4-IoD LCD Display Module

1 x gen4-IoD Programming Adaptor

1 x 10-way FFC Cable

1 x 4 GB Industrial microSD Card

4D Systems gen4 LCD Display Modules

Note

Kits that do not include a microSD card are available; see 4D Systems parts gen4-IoD-24T, gen4-IoD-28T and gen4-IoD-32T.
