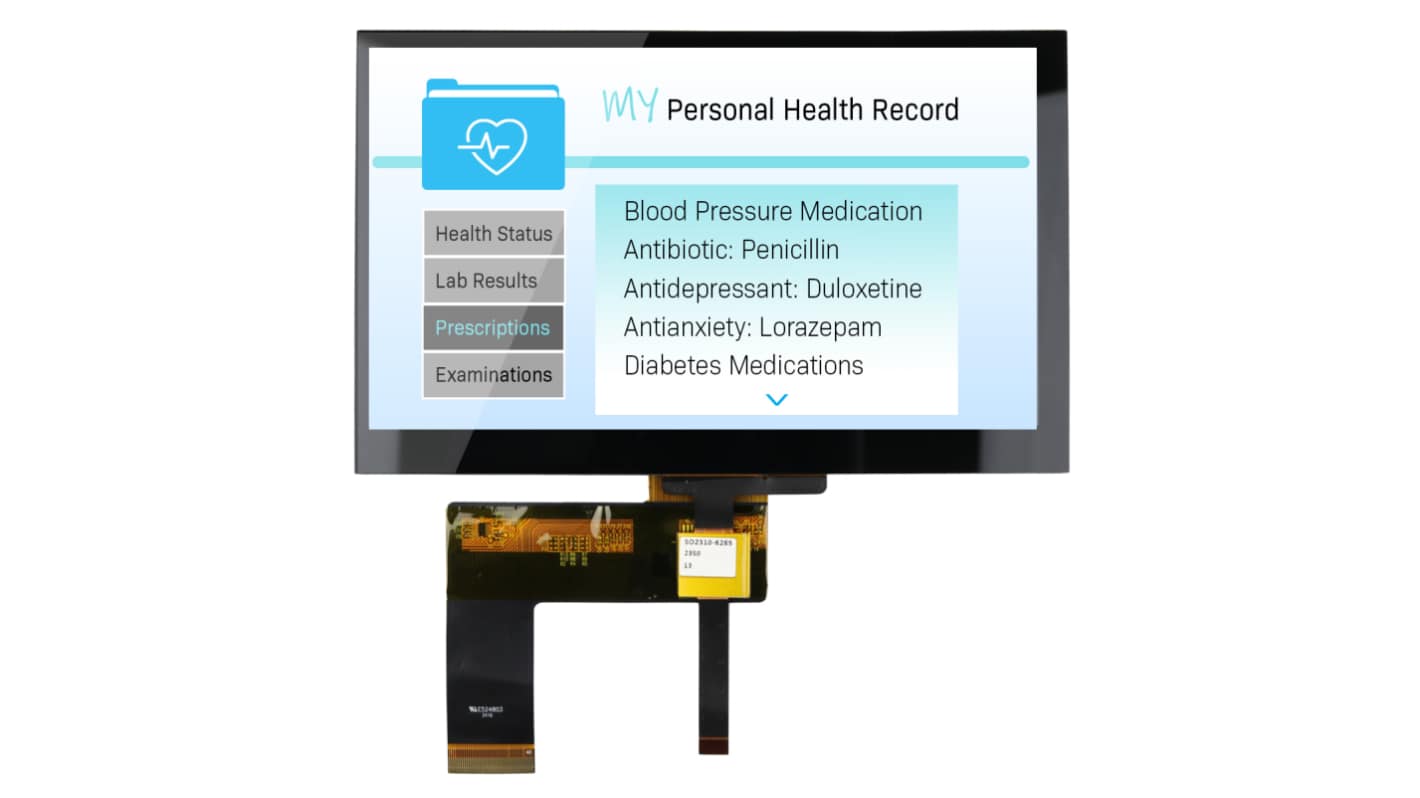

NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0-800480AF-ASXP-CTP IPS TFT TFT LCD Display / Touch Screen, 7in, 800 x 480pixels

Voir la catégorie

Sous-total (1 unité)*

80,96 €

(TVA exclue)

97,96 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • 5 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +80,96 €

*Prix donné à titre indicatif

N° de stock RS:
218-684
Référence fabricant:
NHD-7.0-800480AF-ASXP-CTP
Fabricant:
NEWHAVEN DISPLAY INTERNATIONAL
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

NEWHAVEN DISPLAY INTERNATIONAL

Diagonal Display Size

7in

Interface Type

24-bit

Resolution

800 x 480pixels

Touch Screen

Yes

Viewing Area Dimensions

154.90 x 86.85mm

Supply Voltage

3.3 V

Touch Screen Type

Capacitive

Backlight Type

LED

Display Mode

Transmissive

Dimensions

165 x 104 x 5.25mm

Display Matrix Technology

IPS TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Brightness

850cd/m²

Voltage Rating

3.3V

Standards Met

RoHS Compliant

Height

127mm

Width

211.67mm

Viewing Area Height

127mm

Display Type

TFT

Operating Temperature Range

-20 → 70°C

Viewing Area Width

211.67mm

Pays d'origine :
CN
The NEWHAVEN DISPLAY INTERNATIONAL 7 inch IPS TFT LCD has EMI shielding, and a high brightness LED backlight with 850 nits. The display offers stunning sharpness, superior color reproduction, better image consistency, and high contrast with full viewing angles due to the IPS technology built into this Liquid Crystal Display. The super bright backlight allows this TFT to be sunlight readable in bright conditions including direct sun. This transmissive LCD boasts impressive quality and brightness and includes a capacitive touch panel, making it an excellent choice for projects that desire high-end visual output with multi-touch functionality.

EMI Shielded FPC and 10 point multitouch
Optical features normally black and transmissive
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
