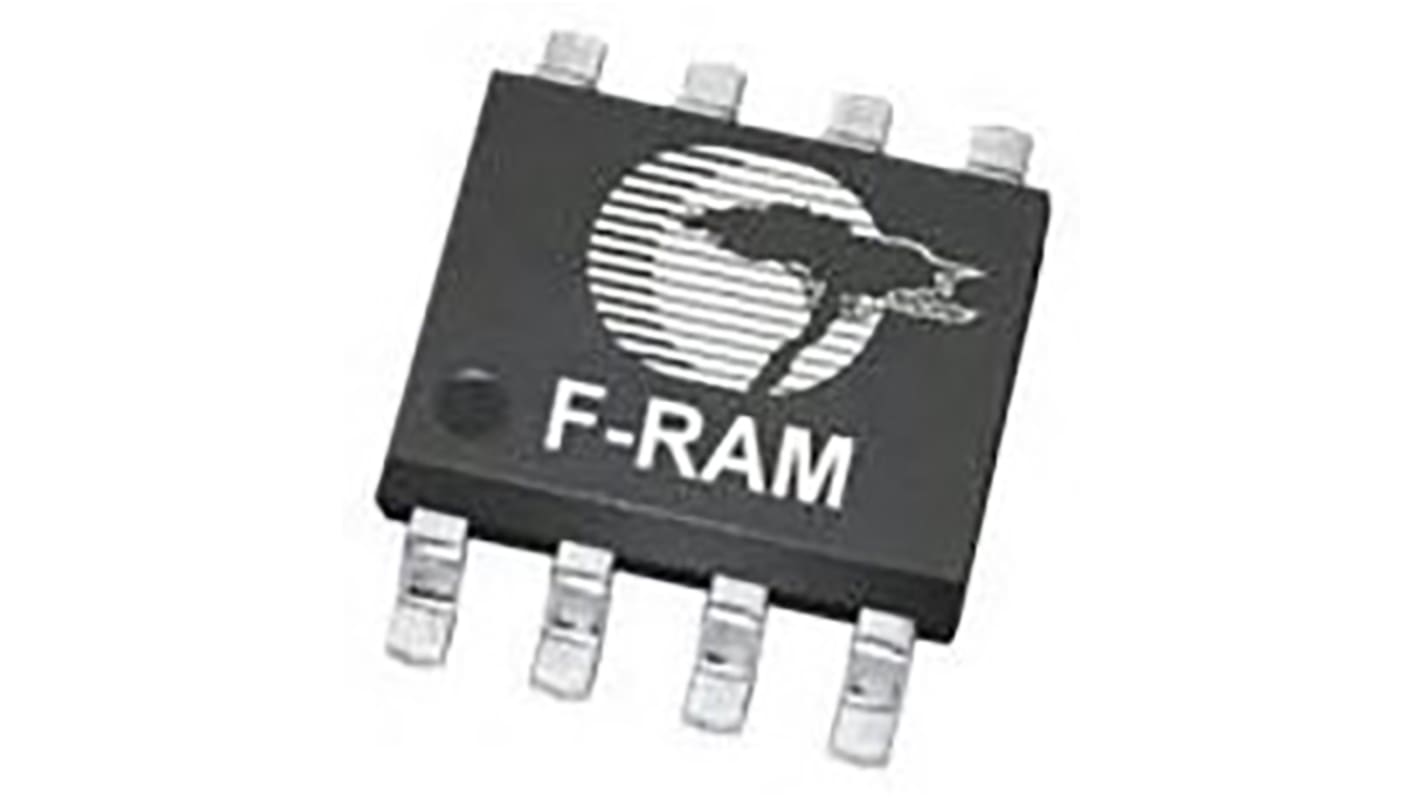

Infineon 64 kB SPI FRAM 8-Pin SOIC
- N° de stock RS:
- 181-7439
- Référence fabricant:
- CY15B064Q-SXE
- Fabricant:
- Infineon
Sous-total (1 tube de 97 unités)*
567,062 €
(TVA exclue)
686,178 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 97 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le tube* |
|---|---|---|
| 97 + | 5,846 € | 567,06 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 181-7439
- Référence fabricant:
- CY15B064Q-SXE
- Fabricant:
- Infineon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Infineon | |
| Memory Size | 64kB | |
| Product Type | FRAM | |
| Organisation | 8K x 8 bit | |
| Interface Type | SPI | |
| Data Bus Width | 8bit | |
| Maximum Random Access Time | 25ns | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 16MHz | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Width | 4.8mm | |
| Standards/Approvals | No | |
| Height | 1.5mm | |
| Length | 3.8mm | |
| Maximum Operating Temperature | 125°C | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Number of Words | 8K | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque Infineon | ||
Memory Size 64kB | ||
Product Type FRAM | ||
Organisation 8K x 8 bit | ||
Interface Type SPI | ||
Data Bus Width 8bit | ||
Maximum Random Access Time 25ns | ||
Mount Type Surface | ||
Maximum Clock Frequency 16MHz | ||
Package Type SOIC | ||
Pin Count 8 | ||
Width 4.8mm | ||
Standards/Approvals No | ||
Height 1.5mm | ||
Length 3.8mm | ||
Maximum Operating Temperature 125°C | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Number of Words 8K | ||
Automotive Standard AEC-Q100 | ||
Infineon FRAM, 64kB Memory Size, 3.6V Maximum Supply Voltage - CY15B064Q-SXE
This FRAM is a non-volatile memory device designed for serial interfaces in embedded and automotive environments. It operates from a low-voltage supply and delivers fast read/write responsiveness over an SPI connection, making it suitable for systems that require frequent data logging and persistent storage across power cycles. The component is supplied in a compact surface-mount package compatible with standard board assembly.
Features and Benefits:
• Operates up to 16MHz for high-speed serial transfers
• Provides 64kB storage with 8K words for data retention
• 25ns random access enables rapid read/write operations
• 8-bit data bus simplifies interfacing with microcontrollers
• Accepts 3.0V-3.6V supply for low-power system integration
• Qualified to automotive stress levels for harsh environments
• Provides 64kB storage with 8K words for data retention
• 25ns random access enables rapid read/write operations
• 8-bit data bus simplifies interfacing with microcontrollers
• Accepts 3.0V-3.6V supply for low-power system integration
• Qualified to automotive stress levels for harsh environments
Applications
• Suitable for vehicle data logging and parameter storage
• Ideal for industrial control systems requiring endurance
• Used with sensor hubs needing frequent non-volatile writes
• Can be used for calibration and configuration memory in ECUs
• Suitable for embedded systems demanding fast persistent memory
• Ideal for industrial control systems requiring endurance
• Used with sensor hubs needing frequent non-volatile writes
• Can be used for calibration and configuration memory in ECUs
• Suitable for embedded systems demanding fast persistent memory
What temperature range can the device tolerate in demanding installations?
It supports operation from -40°C to 125°C, enabling use across industrial and automotive thermal profiles.
How is the device packaged for PCB assembly and space-constrained designs?
It is supplied in a surface-mount SOIC package with an 8-pin footprint suited to automated placement.
What interface and signalling does it use for communication with controllers?
Communication is via an SPI serial interface, providing synchronous serial transfers for host controllers.
How does the device address automotive reliability requirements?
It meets automotive-grade AEC-Q100 standards appropriate for in-vehicle electronic applications.
