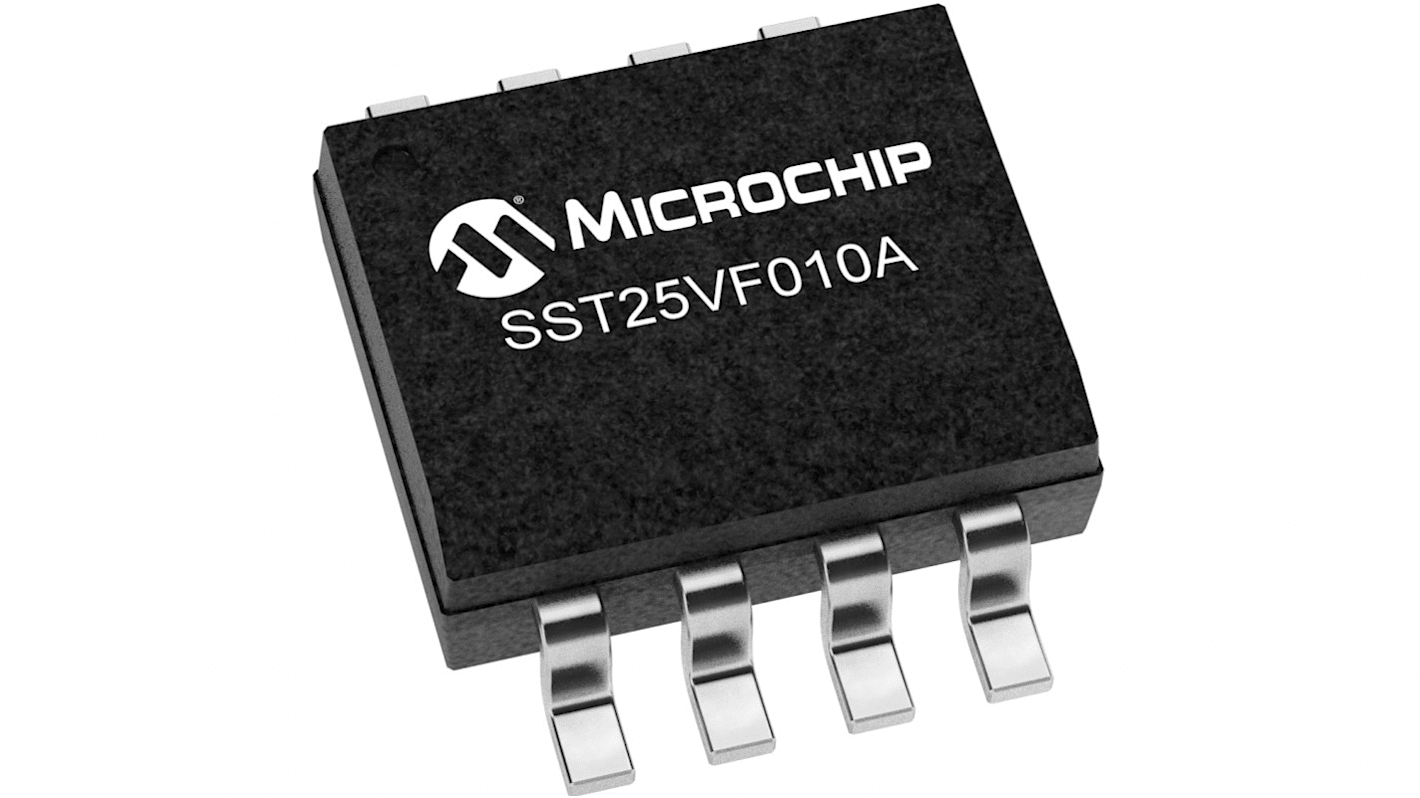

Microchip Split Gate 1 MB SPI Flash Memory 8-Pin SOIC, SST25VF010A-33-4I-SAE-T
- N° de stock RS:
- 264-8826
- Référence fabricant:
- SST25VF010A-33-4I-SAE-T
- Fabricant:
- Microchip
Offre groupée disponible
Sous-total (1 paquet de 10 unités)*
8,90 €
(TVA exclue)
10,80 €
(TVA incluse)
Ajouter 90 unités pour bénéficier d'une livraison gratuite
En stock
- 3 270 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 10 - 40 | 0,89 € | 8,90 € |
| 50 - 90 | 0,868 € | 8,68 € |
| 100 - 240 | 0,845 € | 8,45 € |
| 250 - 990 | 0,822 € | 8,22 € |
| 1000 + | 0,803 € | 8,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 264-8826
- Référence fabricant:
- SST25VF010A-33-4I-SAE-T
- Fabricant:
- Microchip
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Microchip | |
| Product Type | Flash Memory | |
| Memory Size | 1MB | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 256K x 8 | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 80MHz | |
| Cell Type | Split Gate | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 3.6V | |
| Timing Type | Synchronous | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 5 mm | |
| Length | 6mm | |
| Standards/Approvals | RoHS, JEDEC | |
| Automotive Standard | No | |
| Supply Current | 10mA | |
| Series | SST25VF | |
| Sélectionner tout | ||
|---|---|---|
Marque Microchip | ||
Product Type Flash Memory | ||
Memory Size 1MB | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 256K x 8 | ||
Mount Type Surface | ||
Maximum Clock Frequency 80MHz | ||
Cell Type Split Gate | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 3.6V | ||
Timing Type Synchronous | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 5 mm | ||
Length 6mm | ||
Standards/Approvals RoHS, JEDEC | ||
Automotive Standard No | ||
Supply Current 10mA | ||
Series SST25VF | ||
The Microchip serial flash memory features a four-wire, SPI-compatible interface that allows for a low pin-count package occupying less board space and ultimately lowering total system costs. This SPI serial flash memory is manufactured with SST proprietary, high performance CMOS Super flash Technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches.
Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
Write protection through Block-Protection bits in status register
Low power consumption
Flexible erase capability– uniform 4 Kbyte sectors– uniform 32 Kbyte overlay blocks
End-of-Write Detection– Software Status
Non-Pb (lead-free) devices are RoHS compliant
-40°C to +85°C industrial temperature range
