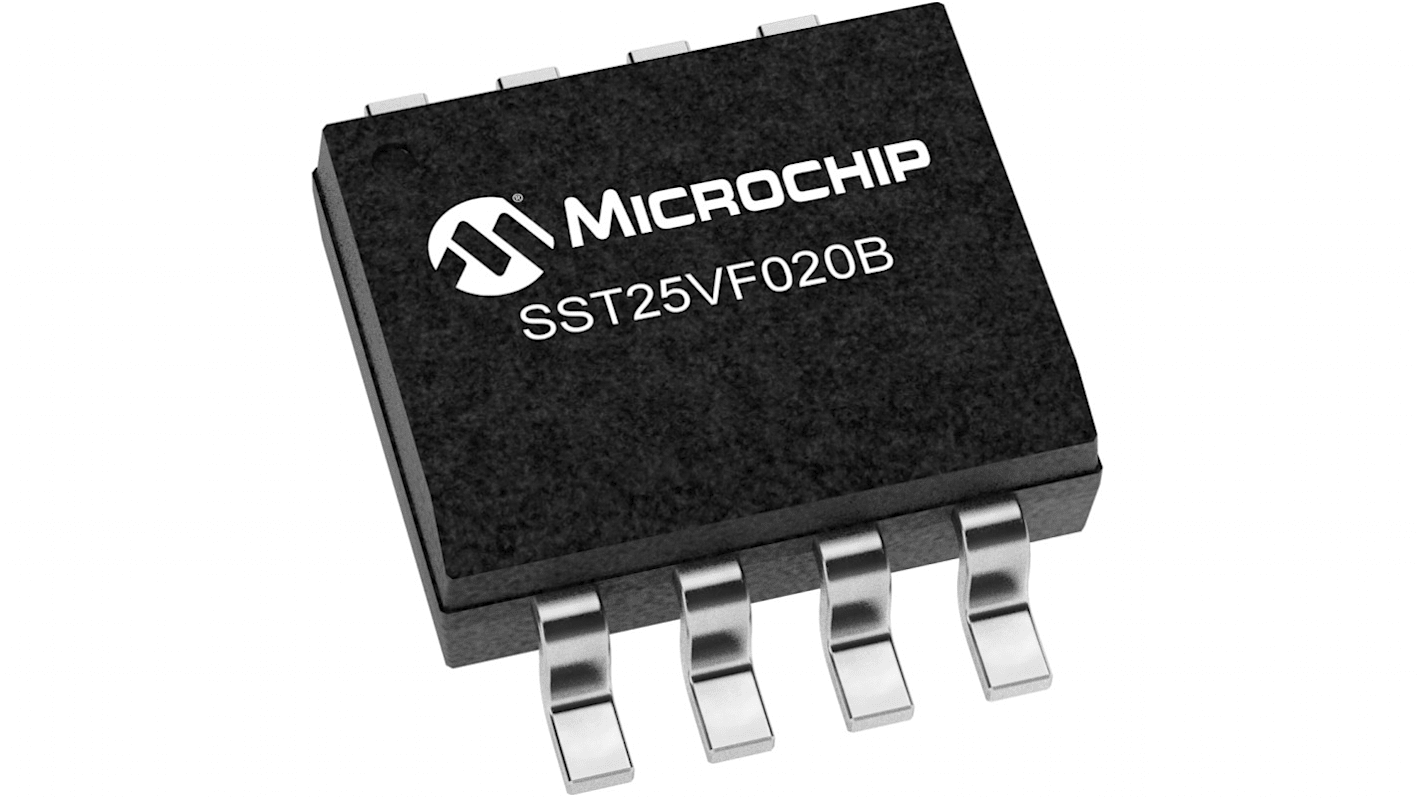

Microchip 2Mbit SPI Flash Memory 8-Pin SOIC, SST25VF020B-80-4I-SAE-T

Voir l’ensemble des Flash Memory

Sous-total (1 bobine de 3300 unités)*

2 494,80 €

(TVA exclue)

3 019,50 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • Expédition à partir du 16 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
la bobine*
3300 +0,756 €2 494,80 €

*Prix donné à titre indicatif

N° de stock RS:
264-8827
Référence fabricant:
SST25VF020B-80-4I-SAE-T
Fabricant:
Microchip
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Microchip

Memory Size

2Mbit

Interface Type

SPI

Package Type

SOIC

Pin Count

8

The Microchip Serial flash memory features a four-wire, SPI compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. This memory is enhanced with improved operating frequency and even lower power consumption. This SPI serial flash memory is manufactured with SST proprietary, high performance CMOS Super flash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. The SST25VF020B device significantly improve performance and reliability, while lowering power consumption.

Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
Superior Reliability-endurance: 100,000 Cycles (typical)- greater than 100 years data retention
Low power consumption:– active read current: 10 mA (typical)– standby current: 5 μA (typical)
All non-Pb (lead-free) devices are RoHS compliant
-40°C to +85°C industrial temperature range
