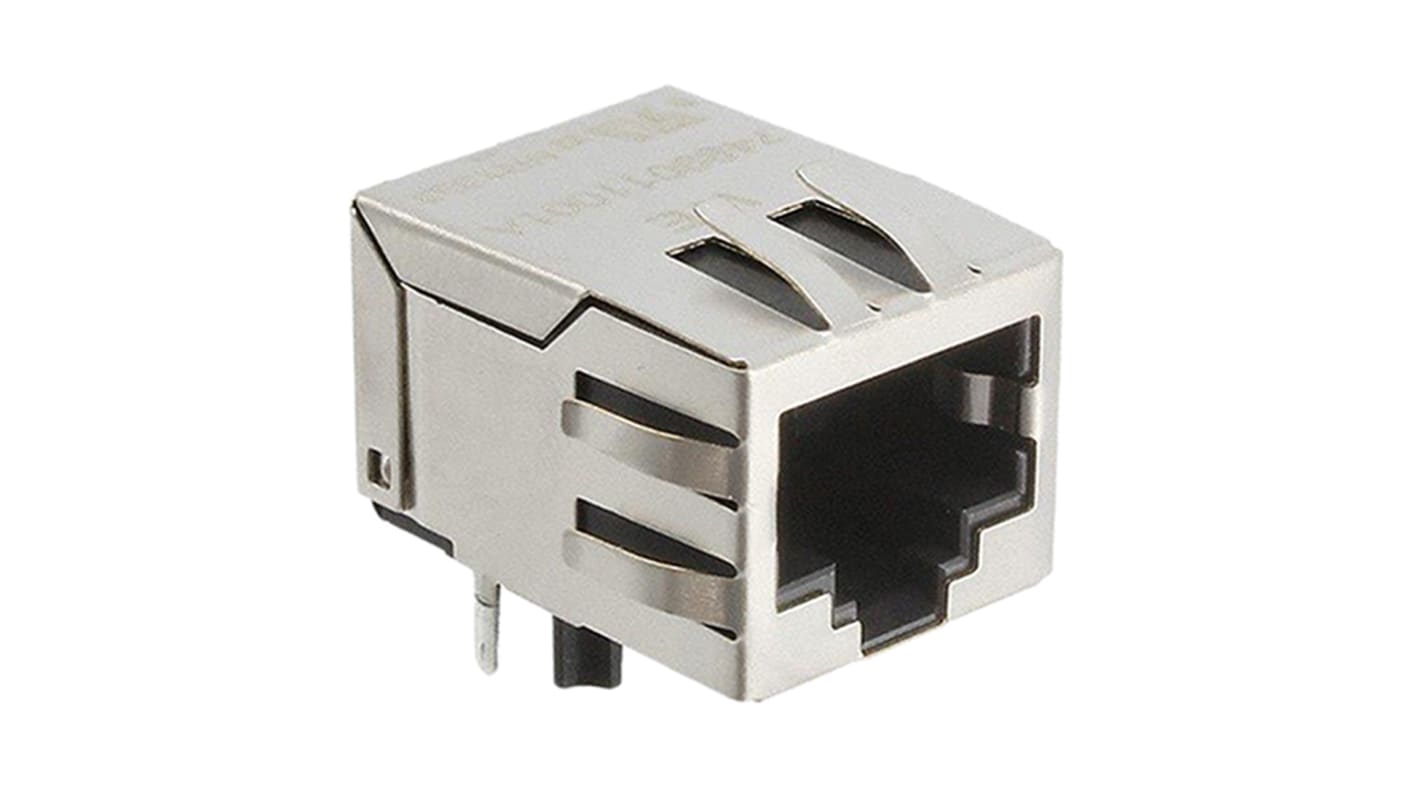

Wurth Elektronik 74991 Series RJ45 Connector Female, Through Hole Shielded Right Angle 1 Port 8 Way
- N° de stock RS:
- 898-8138
- Référence fabricant:
- 7499111001A
- Fabricant:
- Wurth Elektronik
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
9,16 €
(TVA exclue)
11,08 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 26 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 9,16 € |
| 5 - 9 | 8,65 € |
| 10 - 19 | 7,73 € |
| 20 + | 7,12 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 898-8138
- Référence fabricant:
- 7499111001A
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| LED | Yes | |
| Minimum Operating Temperature | 0°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 70°C | |
| Depth | 13.95mm | |
| Length | 21.84mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Width | 16mm | |
| Series | 74991 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
LED Yes | ||
Minimum Operating Temperature 0°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 70°C | ||
Depth 13.95mm | ||
Length 21.84mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Width 16mm | ||
Series 74991 | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- CN
WE-RJ45 LAN Transformer Design Kit
Sample kit components of the SMD Multilayer Inductors WE-RJ45WE-RJ45
Please refer to the data sheet for kit contents
