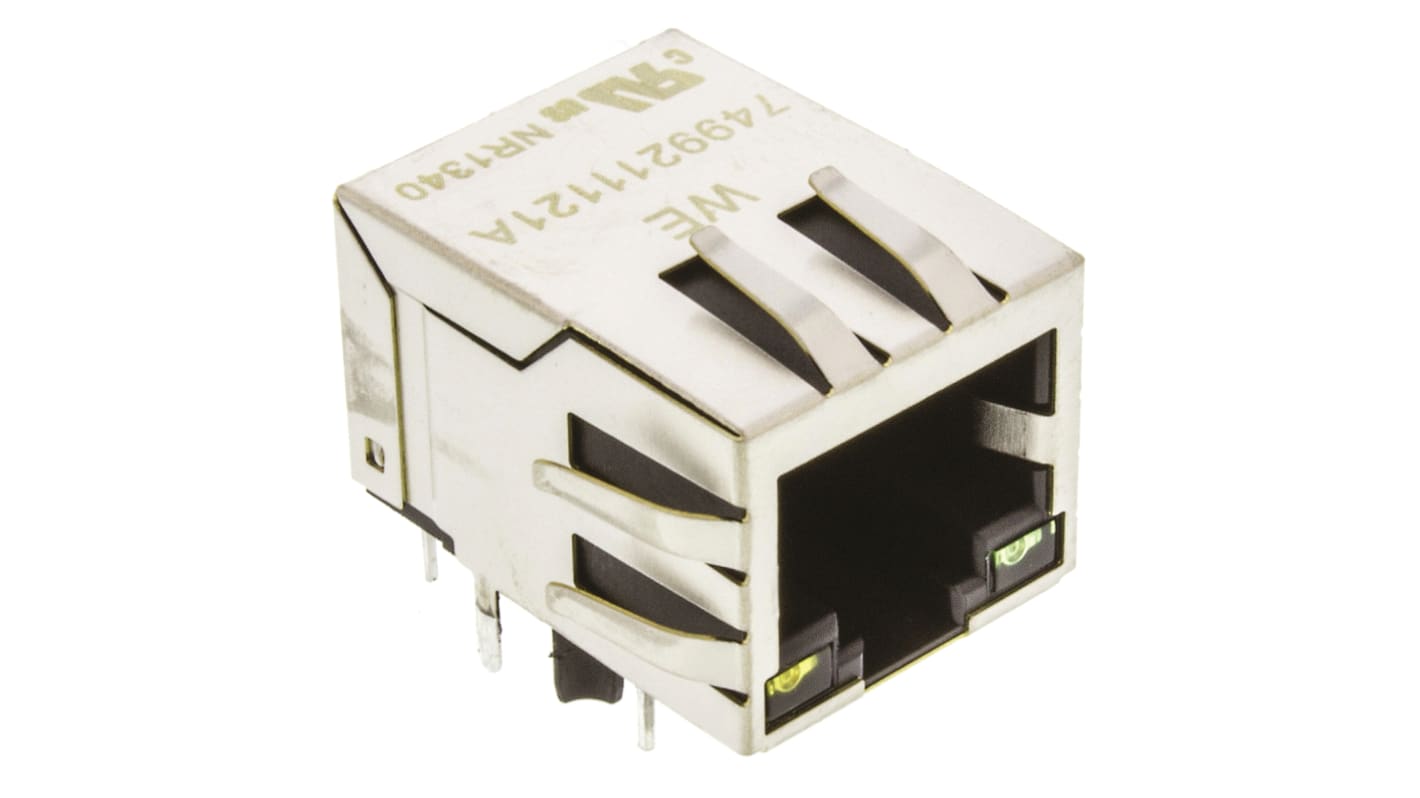

Wurth Elektronik 74992 Series RJ45 Connector Female, Through Hole Shielded Right Angle 1 Port 8 Way
- N° de stock RS:
- 735-0276
- Numéro d'article Distrelec:
- 301-90-003
- Référence fabricant:
- 7499211121A
- Fabricant:
- Wurth Elektronik
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
7,74 €
(TVA exclue)
9,37 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 9 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 35 unité(s) expédiée(s) à partir du 17 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 7,74 € |
| 10 - 24 | 6,95 € |
| 25 - 49 | 6,77 € |
| 50 - 99 | 6,59 € |
| 100 + | 6,42 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 735-0276
- Numéro d'article Distrelec:
- 301-90-003
- Référence fabricant:
- 7499211121A
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Magnetic Jack | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| Magnetic | Yes | |
| LED | Yes | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Series | 74992 | |
| Length | 13.95mm | |
| Depth | 21.84mm | |
| Width | 15.88mm | |
| Contact Material | Ferrite | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Magnetic Jack | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
Magnetic Yes | ||
LED Yes | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Series 74992 | ||
Length 13.95mm | ||
Depth 21.84mm | ||
Width 15.88mm | ||
Contact Material Ferrite | ||
Contact Plating Gold | ||
- Pays d'origine :
- CN
Würth RJ Data Sockets with integrated transformer/ common mode choke
A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.
Features & Benefits
350 μH min. OCL with 8 mA bias;Complies with IEEE 802.3;Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.
