HARTING RJ Industrial Series RJ45 Connector Male, Cable, Cat5 Shielded Straight 1 Port 4 Way
- N° de stock RS:
- 465-9678
- Numéro d'article Distrelec:
- 144-50-821
- Référence fabricant:
- 09451511100
- Fabricant:
- HARTING
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
14,30 €
(TVA exclue)
17,30 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 200 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 49 | 14,30 € |
| 50 - 99 | 13,72 € |
| 100 - 249 | 13,14 € |
| 250 - 499 | 10,67 € |
| 500 + | 9,56 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 465-9678
- Numéro d'article Distrelec:
- 144-50-821
- Référence fabricant:
- 09451511100
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 4 | |
| Connector Gender | Male | |
| Connector Type | RJ45 | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| LED | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | IDC | |
| Maximum Operating Temperature | 70°C | |
| Depth | 52.6mm | |
| Hazardous Area Certification | No | |
| Series | RJ Industrial | |
| Standards/Approvals | No | |
| Length | 13.97mm | |
| Contact Plating | Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 4 | ||
Connector Gender Male | ||
Connector Type RJ45 | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP20 | ||
LED No | ||
Minimum Operating Temperature -40°C | ||
Termination Type IDC | ||
Maximum Operating Temperature 70°C | ||
Depth 52.6mm | ||
Hazardous Area Certification No | ||
Series RJ Industrial | ||
Standards/Approvals No | ||
Length 13.97mm | ||
Contact Plating Nickel | ||
- Pays d'origine :
- RO
Harting RJ Industrial Series RJ45 Connector, 13.97mm Length, IP20 - 09451511100
This RJ45 connector is a shielded, straight cable‑mounted RJ45 plug designed for industrial Ethernet field assembly. It provides a four‑contact, male Interface terminated by insulation displacement connection for Cat5 data transmission and is suitable for use where compact, robust cable connections are required in automation and electrical systems.
Features & Benefits
• 360° shielding ensures minimised electromagnetic interference
• IDC termination enables fast, reliable field assembly
• Rated for −40 to 70°C supports wide temperature use
• Cat5 performance delivers up to 100 MHz data transmission
• Withstands ≥750 mating cycles for extended service life
• IDC termination enables fast, reliable field assembly
• Rated for −40 to 70°C supports wide temperature use
• Cat5 performance delivers up to 100 MHz data transmission
• Withstands ≥750 mating cycles for extended service life
**Applications**
• Suitable for factory automation Ethernet link installations
• Ideal for connecting field controllers to switches in control cabinets
• Used for industrial sensor and actuator network cabling
• Can be used for PROFINET copper connections in plant sites
• Ideal for connecting field controllers to switches in control cabinets
• Used for industrial sensor and actuator network cabling
• Can be used for PROFINET copper connections in plant sites
What conductor sizes can be accommodated with this connector?
It accepts stranded conductors 0.22–0.32 mm² and solid conductors 0.26–0.32 mm², corresponding to AWG24–22 for stranded and AWG23–22 for solid.
How does the product cope with mechanical and environmental stress?
The housing is polyamide with a UL94 V‑0 flammability rating, vibration resistance across 10–500 Hz at 10 g, and operation at up to 95% non‑condensing relative humidity.
What protection rating and ingress limitations apply?
The connector provides IP20 protection in the mated condition and is intended for applications where Basic contact protection is sufficient.
Which transmission speeds are supported by the connector?
It supports 10 Mbit/s and 100 Mbit/s operation consistent with Cat5/Class D performance up to 100 MHz.
What is included for field assembly in the pack?

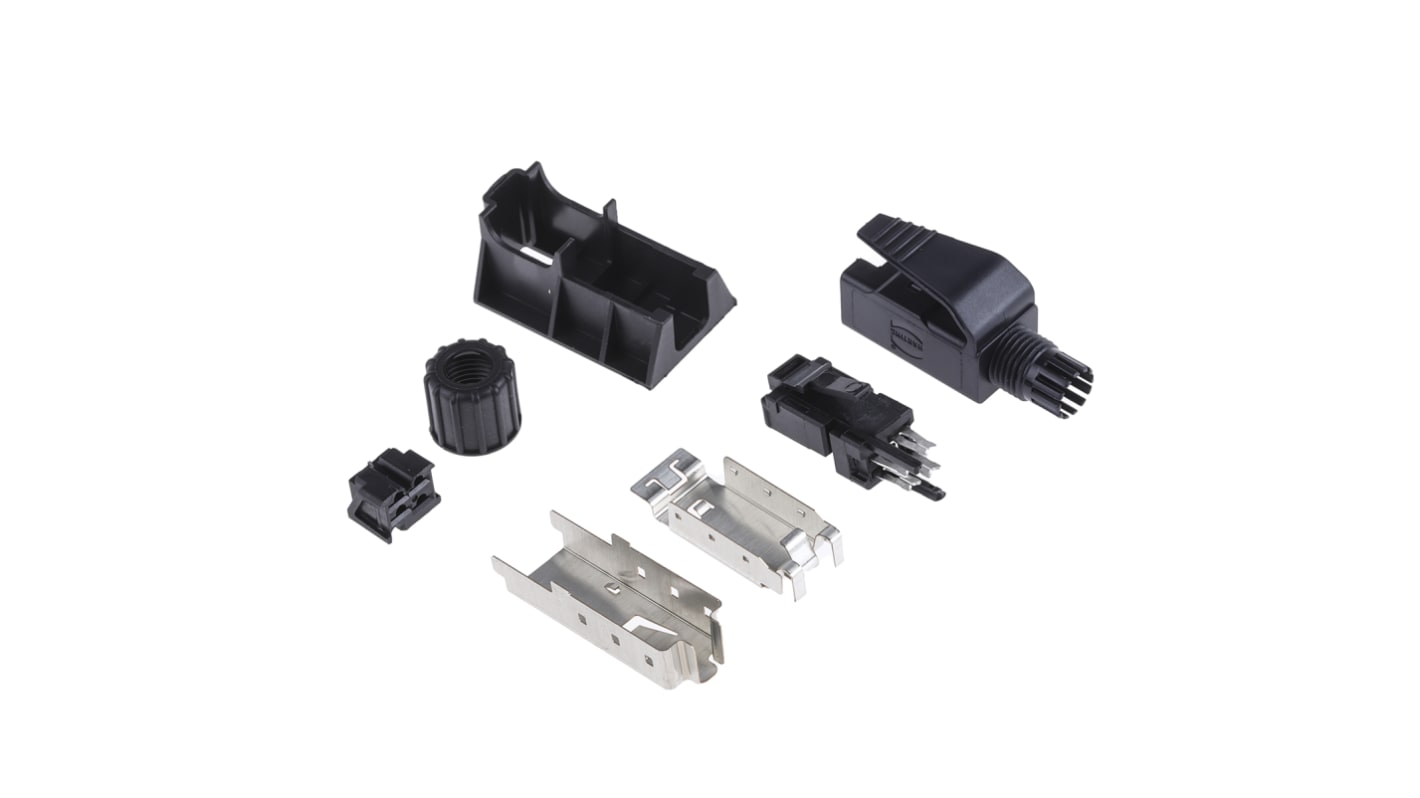

The supply includes the hood with shielding, a splicing element, a cable gland and assembly instructions for on‑site termination.
