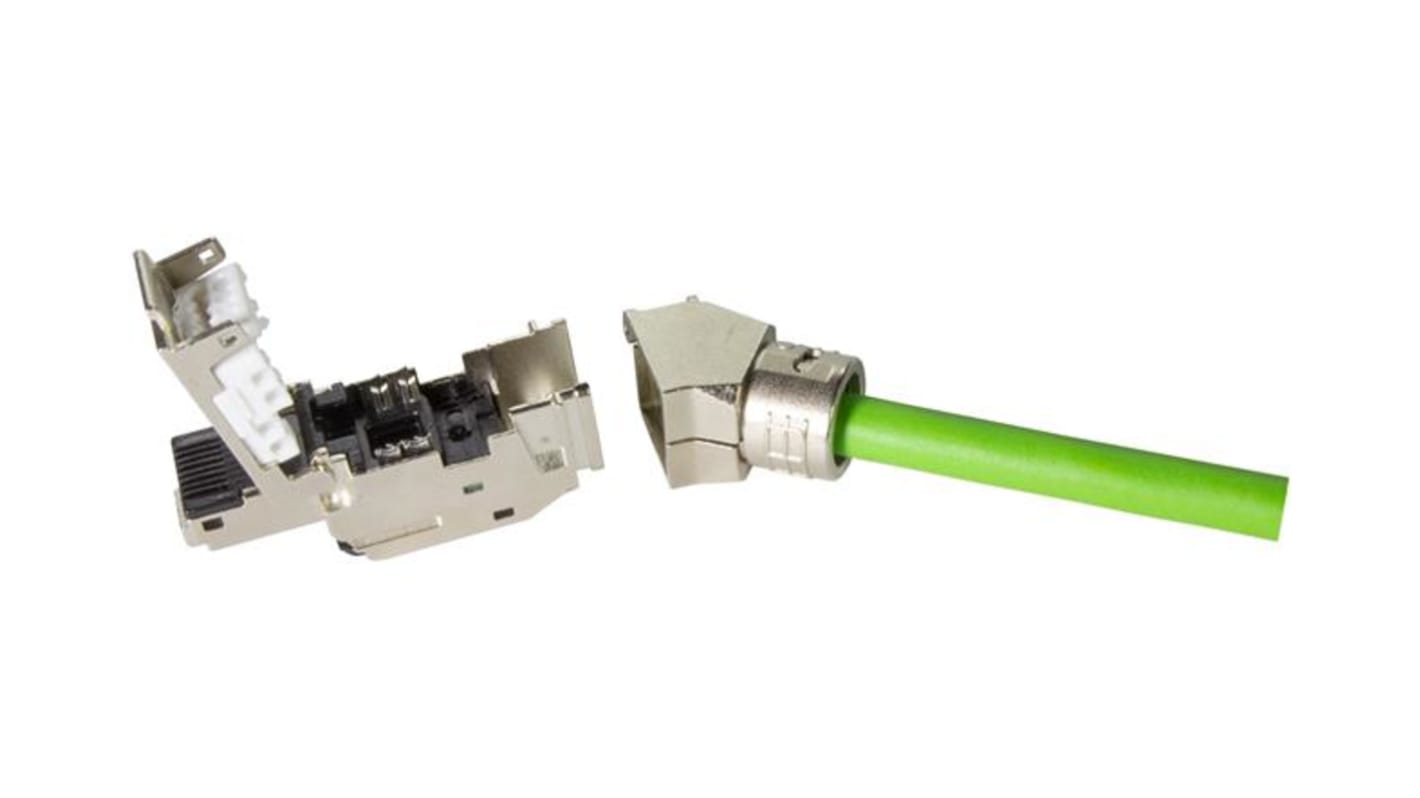

HARTING HARTING RJ Industrial Series Male RJ45 Connector, Cat5 Angled 1 Port 1 -Way

The Harting RJ45 Plug features IDC termination for secure and reliable connections. It is fully shielded with 360° shielding contact, providing excellent protection against interference. The plug is rated for a voltage of 50 V AC and 60 V DC. It supports Cat. 5 Class D transmission characteristics, operating up to 100 MHz. Compatible with data rates of 10 Mbit/s and 100 Mbit/s, it is suitable for high speed networking. The plug operates in temperatures ranging from 40°C to +85°C, ensuring durability in various environments.

IP20 protection
Polycarbonate insert
Copper alloy contacts
Zinc die cast housing
Very robust full metal design
Straight and angled version with variable cable outlet (angled versions one part and 6 different cable outlet directions)
Big cable diameter from 4.5 to 9 mm
Simple and fast cable fastening with bayonet lock and very robust patented cable clamp
Wide range IDC for solid and stranded wires from AWG 26 to AWG 22
No side cutter needed anymore with integrated cutting blades behind the IDC contacts cut the single wires to the right length
