HARTING 9451 Series RJ45 Connector Female, Cable, Cat5 Shielded Angled 1 Port 4 Way
- N° de stock RS:
- 765-9072
- Référence fabricant:
- 09451511121
- Fabricant:
- HARTING
Offre groupée disponible
Sous-total (1 unité)*
24,58 €
(TVA exclue)
29,74 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 7 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 24,58 € |
| 10 - 24 | 20,92 € |
| 25 - 49 | 18,46 € |
| 50 + | 16,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 765-9072
- Référence fabricant:
- 09451511121
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Mount Type | Cable | |
| Number of Ways | 4 | |
| Connector Gender | Female | |
| Connector Type | Plug | |
| Shield Type | Shielded | |
| Orientation | Angled | |
| IP Rating | IP20 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 16.12mm | |
| Depth | 69.3mm | |
| Series | 9451 | |
| Width | 13.7mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Mount Type Cable | ||
Number of Ways 4 | ||
Connector Gender Female | ||
Connector Type Plug | ||
Shield Type Shielded | ||
Orientation Angled | ||
IP Rating IP20 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Length 16.12mm | ||
Depth 69.3mm | ||
Series 9451 | ||
Width 13.7mm | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Contact Plating Gold over Nickel | ||

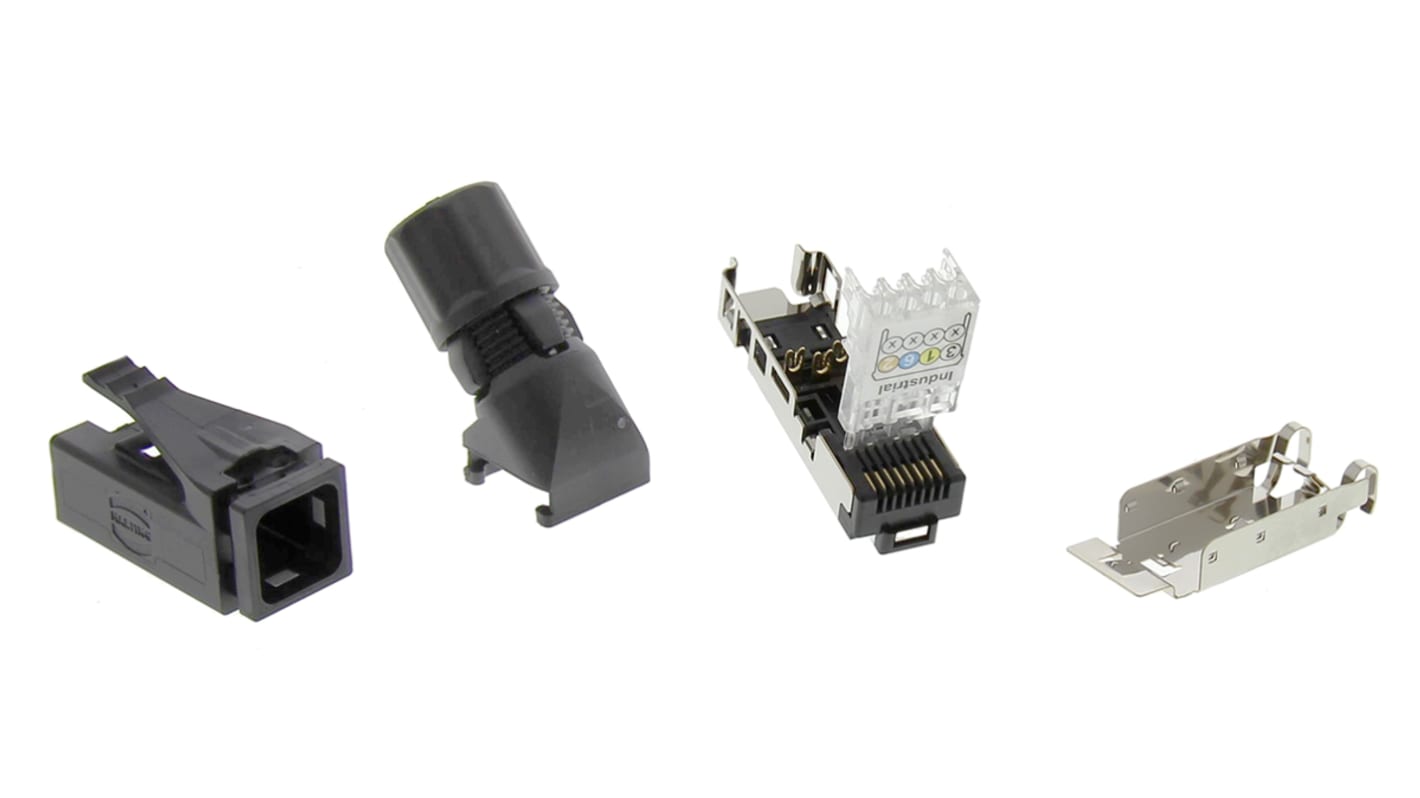

Harting RJ Industrial® Cat5 PROFINET RJ45 Connector Set
RJ Industrial® cat5 PROFINET RJ45 4 pole ethernet-data connector sets with a compact design which is field assembled using HARAX® for quick tool-less IDC termination. These RJ Industrial® cat5 plug connectors have a mating face to RJ45 IEC 60 603-74, a data transmission rate of 10/100 Mbit/s Ethernet, and are fully shielded with 360° contact. The housings of these RJ45 PROFINET connector plug sets are made from black UL 94-V0 polyamide and can be connected to cables which have a cross section of AWG 27 to AWG 22 (solid or stranded) and a 1.6 mm maximum conductor diameter. All models are highly reliable and excellent quality.
Features & Benefits
Stock number 765-9078 is a straight RJ45 4 pole connector which accepts a cable diameter of 4.5 mm to 9 mm.;Stock number 765-9072 is a 45° angled RJ45 4 pole connector with 4 cable outlet options which accepts a cable diameter of 4.5 mm to 8 mm.
Note
Cable not included.
Standards
Transmission performance: Category 5 / Class D up to 100 MHz acc. to ISO/IEC 11 801:2002, EN 50 173-1
Connector standard to acc. to IEC 60 603-7
Connector standard to acc. to IEC 60 603-7
