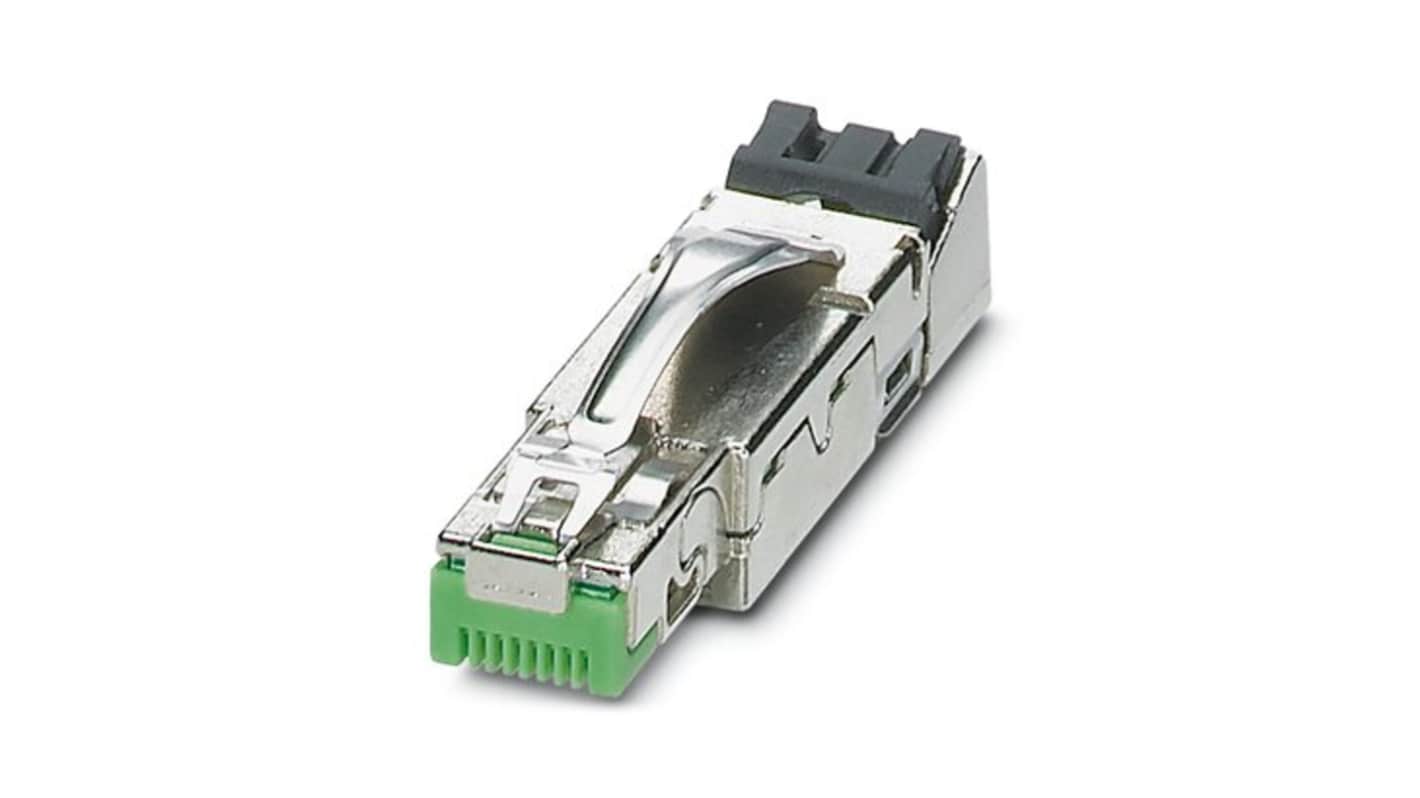

Phoenix Contact CUC Series RJ45 Connector, Cat5 Straight 1 Port
- N° de stock RS:
- 281-703
- Référence fabricant:
- 1406335
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
27,96 €
(TVA exclue)
33,83 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 1 unité(s) expédiée(s) à partir du 12 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 27,96 € |
| 10 + | 25,73 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 281-703
- Référence fabricant:
- 1406335
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Connector Type | RJ45 | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 53mm | |
| Standards/Approvals | IEC 60068-2-27, RoHS, IEC 60068-2-6 | |
| Series | CUC | |
| Width | 13.65mm | |
| Hazardous Area Certification | No | |
| Depth | 14.4mm | |
| Contact Material | Copper Tin | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Connector Type RJ45 | ||
Orientation Straight | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Length 53mm | ||
Standards/Approvals IEC 60068-2-27, RoHS, IEC 60068-2-6 | ||
Series CUC | ||
Width 13.65mm | ||
Hazardous Area Certification No | ||
Depth 14.4mm | ||
Contact Material Copper Tin | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- PL
The Phoenix Contact RJ45 connector delivers exceptional reliability and efficiency for data connectivity needs. Designed for seamless integration, it boasts a robust build with a high degree of vibration resistance and 360° shielding. Its easy, tool-free assembly makes it an ideal choice for both field repairs and servicing, facilitating quick and hassle-free installations.
Designed for a wide range of cable cross sections ensuring versatility in applications
Constructed with high quality materials ensuring durability and longevity
Adaptable for both solid and stranded cables catering to diverse installation environments
Functional in extreme temperature ranges suited for various operational conditions
