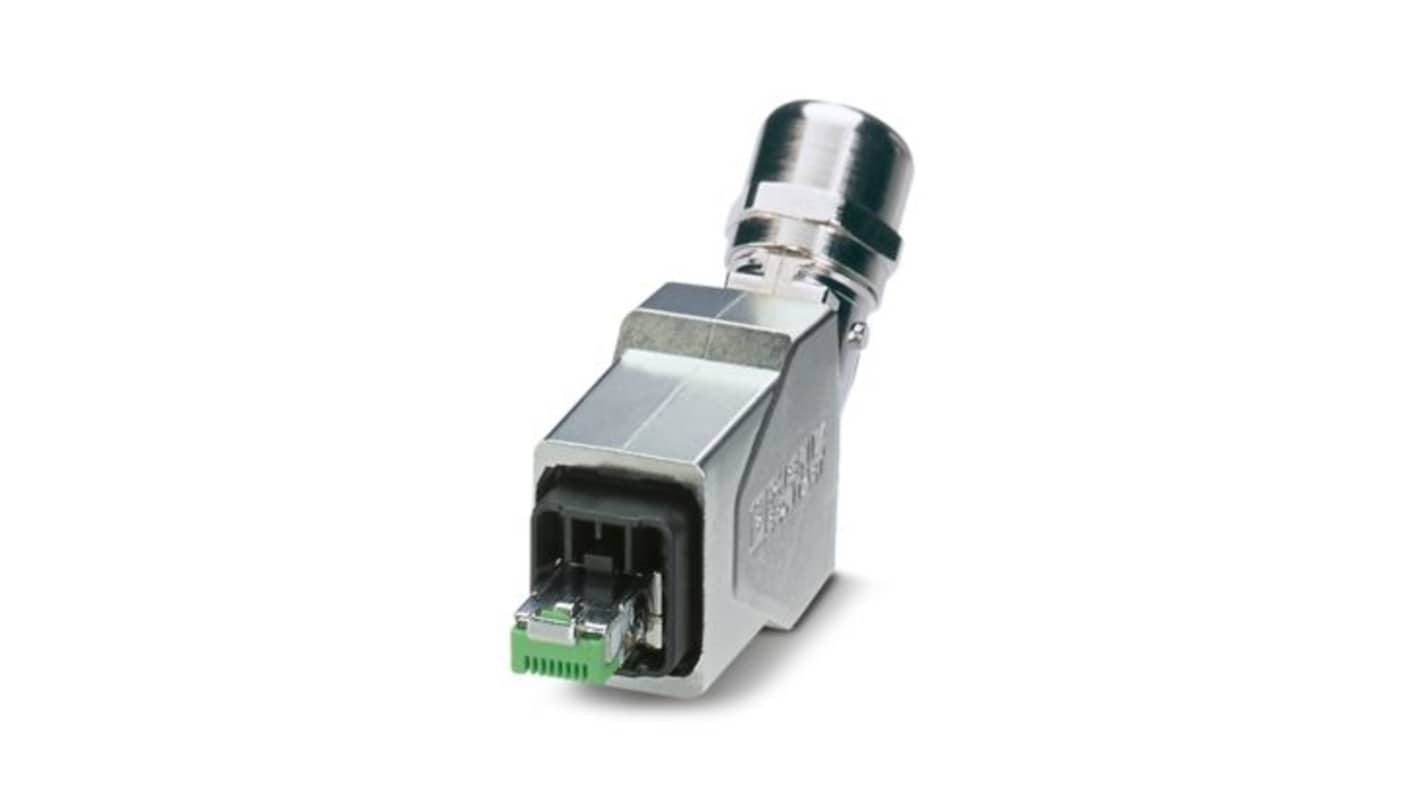

Phoenix Contact CUC Series RJ45 Connector Male, Through Hole, Cat5 Shielded Straight 8 Way
- N° de stock RS:
- 496-900
- Référence fabricant:
- 1422663
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 496-900
- Référence fabricant:
- 1422663
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Gender | Male | |
| Connector Type | RJ45 | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP65, IP67 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Width | 22mm | |
| Standards/Approvals | cULus Recognised | |
| Length | 80mm | |
| Series | CUC | |
| Contact Plating | Nickel Plated | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Gender Male | ||
Connector Type RJ45 | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP65, IP67 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Width 22mm | ||
Standards/Approvals cULus Recognised | ||
Length 80mm | ||
Series CUC | ||
Contact Plating Nickel Plated | ||
- Pays d'origine :
- PL
The Phoenix Contact RJ45 connector is expertly designed for robust and reliable networking solutions. Made with high-quality metal casing, it ensures durability while maintaining performance efficiency. Its advanced degree of protection, rated IP65/IP67, makes it ideal for challenging environments where dust or moisture could affect connectivity. This connector supports data transmission at speeds of up to 1 Gbps, providing seamless integration into existing network infrastructures. With its angled cable outlet and IDC fast connection method, installation is straightforward, reducing downtime and enhancing user experience. Compliant with industry standards, this RJ45 connector meets the stringent PROFINET Cabling and Interconnection Technology Guideline, ensuring it delivers the quality required for professional applications.
Sleek metal housing ensures longevity and resilience
Angled outlet assists in tight installation spaces
Designed for easy and efficient installation with IDC fast connection
Offers high speed data transfer critical for modern networking
Complies with PROFINET guidelines for assured performance
IP65 and IP67 rating provides excellent protection against environmental factors
Shielded design mitigates electromagnetic interference ensuring signal integrity
