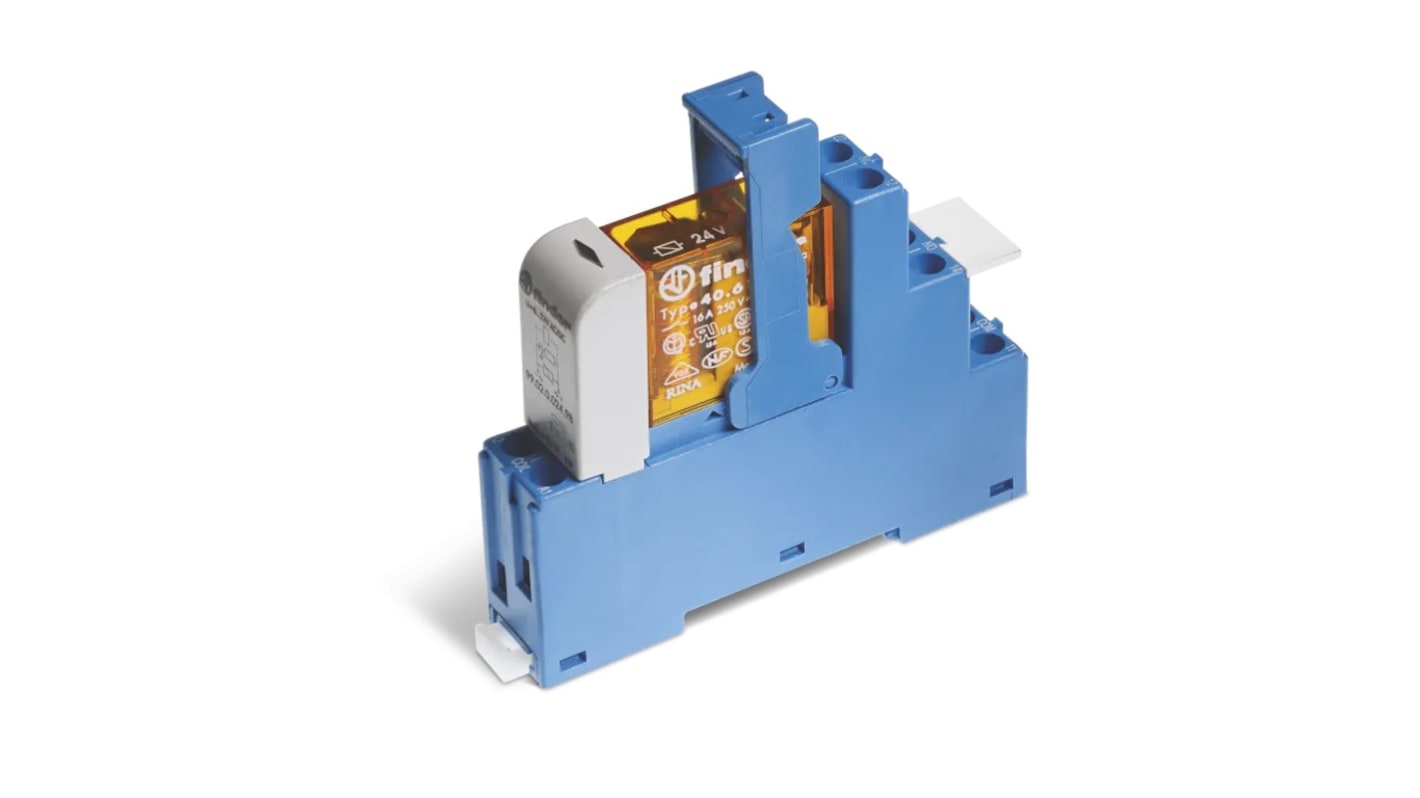

Finder 48 Series Interface Relay Module, DIN Rail Mount, 110V Coil, SPDT, 1-Pole, 16A Load

Voir la catégorie

Sous-total (1 unité)*

19,35 €

(TVA exclue)

23,41 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 19 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +19,35 €

*Prix donné à titre indicatif

N° de stock RS:
286-8574
Référence fabricant:
48.61.8.110.1060SPA
Fabricant:
Finder
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Finder

Coil Voltage

110V

Contact Configuration

SPDT

Mounting Type

DIN Rail

Number of Poles

1

Series

48

Load Current Rating

16A

Load Voltage Rating

250/400V ac

Switching Voltage

250/400V ac

Contact Material

Silver Alloy

Standards Met

cURus, EAC

Life

100000 Cycles

Operating Temperature Range

-40 → +70°C

Accessory Type

Interface Relay

Turn On Time

7ms

Relay Type

Interface Relay

Maximum Operating Temperature

+70°C

Turn Off Time

4ms

Minimum Operating Temperature

-40°C

Pays d'origine :
IT

Finder Series 48 Interface Relay Module, 110V Coil Voltage, SPDT Contact Configuration - 48.61.8.110.1060SPA


This interface relay module is designed specifically for efficient control applications, featuring a robust SPDT relay configuration. With a coil voltage of 110V, it operates effectively within a range of -40 to +70°C. The module mounts easily onto DIN rails, maximising space in electrical distribution panels while maintaining a compact width of 15.8 mm. Rated for a load current of 16 A and with a load voltage capacity of up to 400V AC, this product ensures reliable operation in various industrial settings.

Features & Benefits


• Increased reliability with 100,000 cycles of electrical life
• Rapid switching capabilities with 7 ms turn-on and 4 ms turn-off times
• Adaptability for various applications with a load voltage rating of 250/400V AC
• Safe operation ensured by compliance with cURus and EAC standards
• Durable contact material made from AgNi for effective performance
• Versatile use in automation systems addressing specific industry demands

Applications


• Utilised in control panels for efficient automation
• Ideal for building automation systems requiring precise switching
• Suitable for use in electrical distribution panels for safety
• Commonly found in lifts and lift systems for reliable operation
• Employed in carousel warehouses for streamlined logistics tracking

What is the benefit of the module's coil voltage rating for specific applications?


The 110V coil voltage allows for compatibility with standard electrical systems, enhancing flexibility and integration in diverse automation setups. This rating also ensures the module can handle higher voltage operations effectively.

How does the contact configuration of this relay enhance its usability?


The SPDT configuration provides versatility in circuit connections, enabling it to function effectively in both control and signalling applications, perfect for various industrial automation tasks.

What are the implications of a -40 to +70°C operational range on its usage?


This wide temperature range means that the module can be used in harsh environments, making it suitable for industries such as shipbuilding, where conditions may fluctuate significantly without compromising performance.
