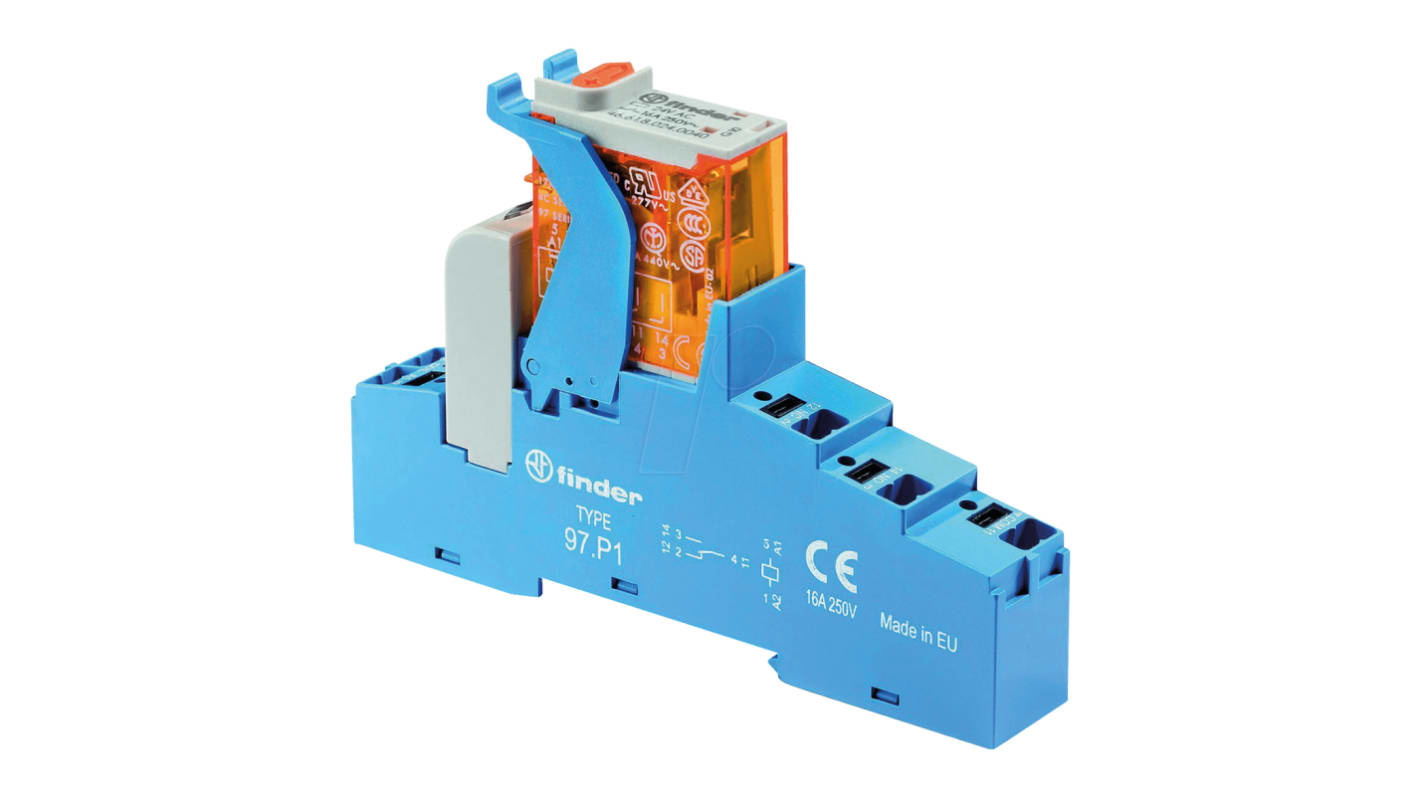

Finder 4C Series Interface Relay, DIN Rail, 110V ac Coil, SPDT, 9.4mA
- N° de stock RS:
- 123-2826
- Référence fabricant:
- 4C.P1.8.110.0060SPA
- Fabricant:
- Finder
Sous-total (1 unité)*
22,72 €
(TVA exclue)
27,49 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 16 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 22,72 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-2826
- Référence fabricant:
- 4C.P1.8.110.0060SPA
- Fabricant:
- Finder
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Coil Resistance | 6900Ω | |
| Coil Voltage | 110V ac | |
| Product Type | Interface Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | 4C | |
| Terminal Type | Push-in | |
| Switching Current | 16A | |
| Switching AC Voltage | 440V ac | |
| Coil Current | 9.4mA | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 50°C | |
| Height | 95.5mm | |
| Width | 66.8mm | |
| Standards/Approvals | RoHS | |
| Length | 15.8mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Coil Resistance 6900Ω | ||
Coil Voltage 110V ac | ||
Product Type Interface Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series 4C | ||
Terminal Type Push-in | ||
Switching Current 16A | ||
Switching AC Voltage 440V ac | ||
Coil Current 9.4mA | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 50°C | ||
Height 95.5mm | ||
Width 66.8mm | ||
Standards/Approvals RoHS | ||
Length 15.8mm | ||
- Pays d'origine :
- IT
4C Series with Instant Eject Relays
Ideal interface for PLC and electronic systems
Instant ejection of relay using plastic retaining clip
Supply status indication and coil suppression module as standard
440Vac switching voltage
Width: 15.8mm
Contact material: AgNi
Approvals
CE, CSA, Gost, IMQ, VDE
