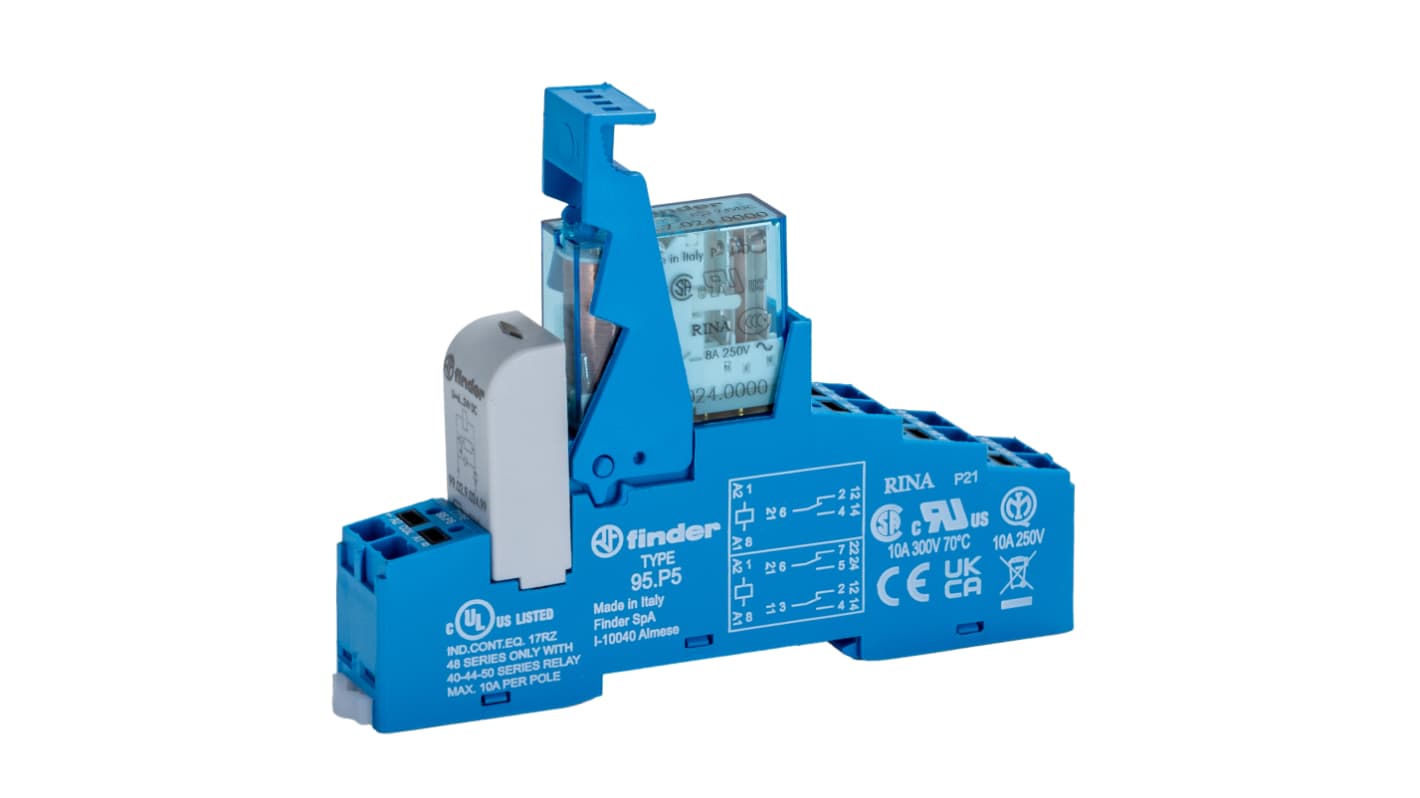

Finder 48 Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT-2C/0, 2-Pole, 8A Load

N° de stock RS:: 123-2811
Numéro d'article Distrelec:: 301-08-828
Référence fabricant:: 48.P5.7.024.0050SPA
Fabricant:: Finder

Finder 48 Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT-2C/0, 2-Pole, 8A Load

Sous-total (1 unité)*

16,86 €

(TVA exclue)

20,40 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

En stock

100 unité(s) prête(s) à être expédiée(s)
Plus 10 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	16,86 €

*Prix donné à titre indicatif

N° de stock RS:: 123-2811
Numéro d'article Distrelec:: 301-08-828
Référence fabricant:: 48.P5.7.024.0050SPA
Fabricant:: Finder

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Finder
	Coil Voltage	24V dc
	Contact Configuration	DPDT-2C/0
	Mounting Type	DIN Rail
	Series	48
	Number of Poles	2
	Load Current Rating	8A
	Maximum Input Voltage	400V ac
	Minimum Input Voltage	250V ac
	Terminal Type	Push In
	Switching Voltage	250/400V ac
	Depth	75.3mm
	Height	95.5mm
	Length	15.8mm
	Contact Material	Silver Alloy
	Input Current	22.2mA
	Special Features	AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
	Life	100000 Cycles
	Turn On Time	12ms
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Turn Off Time	12ms
	Operating Temperature Range	-40 → +70°C
	Standards Met	CE, EAC
	Relay Switching Classification	Interface Relay Module
	Relay Type	Interface Relay
	Dimensions	15.8 x 75.3 x 95.5mm

	Sélectionner tout
	Marque Finder
	Coil Voltage 24V dc
	Contact Configuration DPDT-2C/0
	Mounting Type DIN Rail
	Series 48
	Number of Poles 2
	Load Current Rating 8A
	Maximum Input Voltage 400V ac
	Minimum Input Voltage 250V ac
	Terminal Type Push In
	Switching Voltage 250/400V ac
	Depth 75.3mm
	Height 95.5mm
	Length 15.8mm
	Contact Material Silver Alloy
	Input Current 22.2mA
	Special Features AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
	Life 100000 Cycles
	Turn On Time 12ms
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Turn Off Time 12ms
	Operating Temperature Range -40 → +70°C
	Standards Met CE, EAC
	Relay Switching Classification Interface Relay Module
	Relay Type Interface Relay
	Dimensions 15.8 x 75.3 x 95.5mm

Pays d'origine :: IT

Finder Series 48 Interface Relay, DIN Rail Mount, 2 Poles - 48.P5.7.024.0050SPA

This interface relay is an important component for automation and control systems, providing dependable switching for various applications. Its compact dimensions are 15.8x75.3x95.5mm, and it is capable of handling loads up to 8A. Designed for a coil voltage of 24V DC, it is compatible with a wide range of electronic systems.

Features & Benefits

• DPDT configuration offers enhanced versatility
• Push-in terminal design facilitates installation and maintenance
• Load current rating of 8A caters to diverse applications
• AgNi contact material provides durability

Applications

• Well-suited for building automation systems
• Utilised in control panels for elevators and lifts
• Applicable for electrical distribution panels
• Used in medical and dental equipment
• Employed in hoists and cranes for effective operation

Can it operate in extreme temperatures?

Yes, it performs well from -40°C to +70°C.

Will it handle high voltage applications?

It supports a maximum input voltage of up to 400V AC.

Is it easy to install?

The push-in terminal design allows for straightforward installation.
