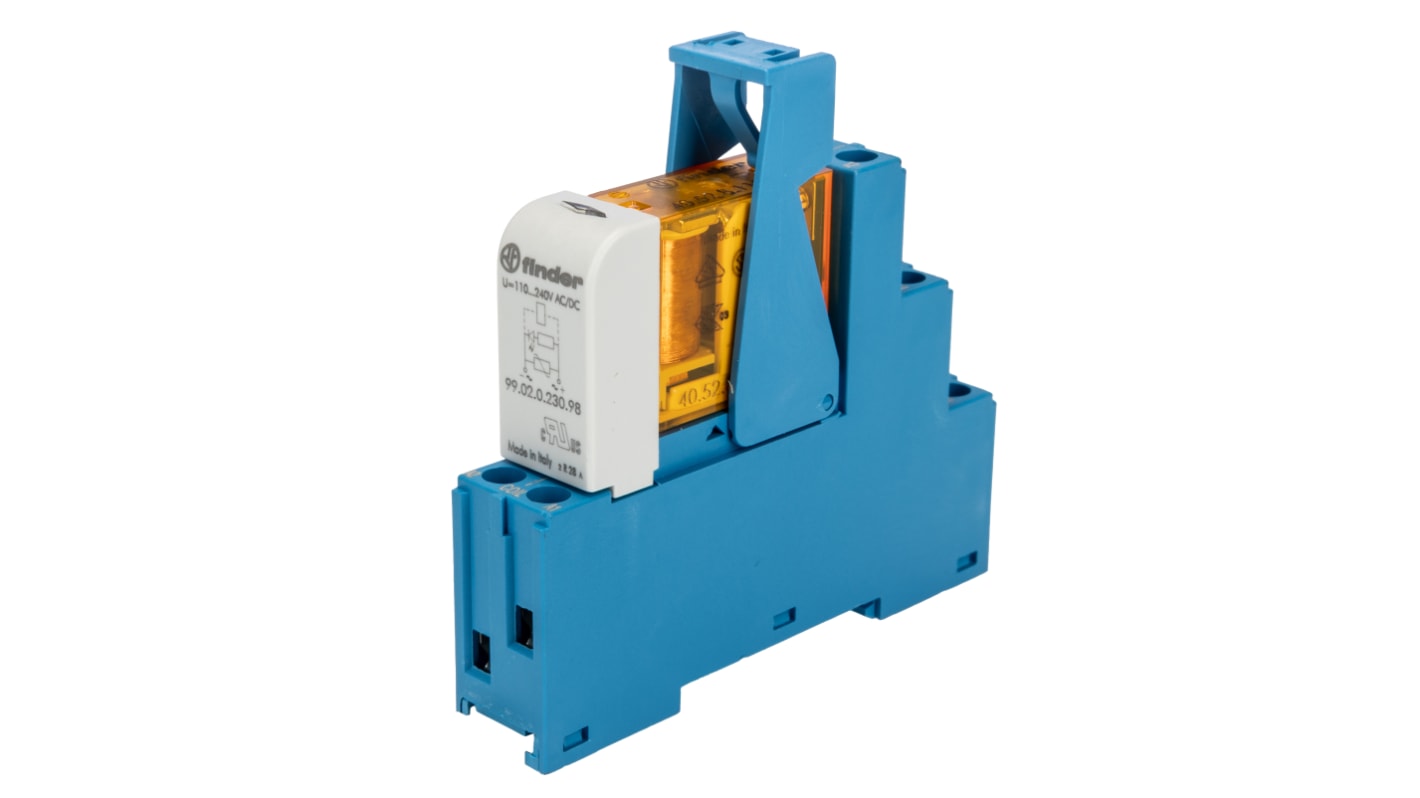

Finder 48 Series Interface Relay, DIN Rail, 110V ac Coil, DPDT, 10.1mA
- N° de stock RS:
- 623-7179
- Référence fabricant:
- 48.52.8.110.0060SPA
- Fabricant:
- Finder
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
20,73 €
(TVA exclue)
25,08 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 16 unité(s) prête(s) à être expédiée(s)
- Plus 65 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 20 unité(s) expédiée(s) à partir du 10 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 20,73 € |
| 5 - 11 | 20,10 € |
| 12 + | 19,44 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 623-7179
- Référence fabricant:
- 48.52.8.110.0060SPA
- Fabricant:
- Finder
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Coil Voltage | 110V ac | |
| Product Type | Interface Relay | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | 48 | |
| Terminal Type | Screw | |
| Switching Current | 8A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 10.1mA | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Alloy | |
| Length | 15.8mm | |
| Standards/Approvals | EAC, CE | |
| Width | 75.3mm | |
| Height | 78.6mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Coil Voltage 110V ac | ||
Product Type Interface Relay | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series 48 | ||
Terminal Type Screw | ||
Switching Current 8A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Current 10.1mA | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Alloy | ||
Length 15.8mm | ||
Standards/Approvals EAC, CE | ||
Width 75.3mm | ||
Height 78.6mm | ||
- Pays d'origine :
- IT
Finder Series 48 Interface Relay, 110V AC Coil Voltage, DPDT Contact Configuration - 48.52.8.110.0060SPA
This interface relay is designed for reliable performance in automation and electrical applications. With a coil voltage of 110V AC, it controls circuits efficiently. Its compact design allows for standard DIN rail mounting, facilitating integration into existing systems.
Features & Benefits
• Supports a maximum switching voltage of 250V
• Utilises silver alloy contacts for enhanced durability
• 15ms response time ensures prompt activation
• Screw terminal connections provide secure wiring
• Mechanical life rated at 10 million cycles
Applications
• Used in medical and dental equipment
• Employed in building automation systems
• Suitable for control panels in shipyards and elevators
• Ideal for electrical distribution and carousel warehouses
• Utilised for hoists and cranes
What is the typical response time when activating this relay?
The relay has a response time of 15ms for swift operation.
Is it suitable for outdoor installation or extreme environments?
Yes, it operates effectively between -40°C and +70°C.
How can I connect this relay within my electrical system?
It features screw terminals for straightforward connections.
What maintenance is required for optimal performance?
Regular inspections of connections and periodic functionality tests are recommended.
Can it be used in industrial automation projects?
Yes, it is suitable for a variety of industrial automation applications.
Approvals
BBJ; BEAB; CSA; DEMKO; FIMKO; GOST; IMQ; NEMKO; RINA; SEMKO; SEV; UL recognised component for Canada and US; UTE; VDE
