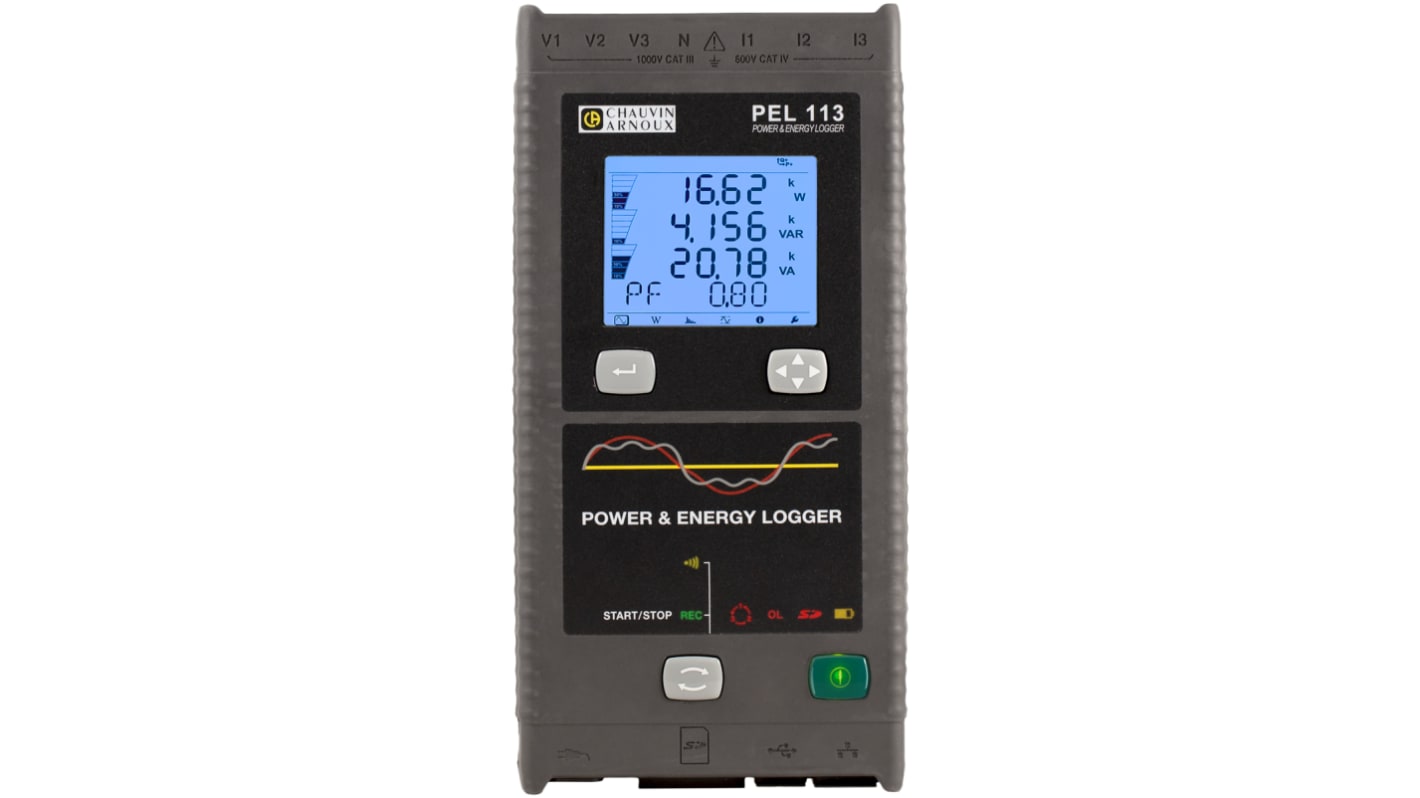

Chauvin Arnoux PEL113 Power & Energy Data Logger, IR, USB, WiFi, Ethernet, 8 Channel

Voir l’ensemble des Data Loggers

Sous-total (1 unité)*

2 018,99 €

(TVA exclue)

2 442,98 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 3 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +2 018,99 €

*Prix donné à titre indicatif

N° de stock RS:
142-512
Référence fabricant:
P01157157
Fabricant:
Chauvin Arnoux
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Chauvin Arnoux

Product Type

Data Logger

Accuracy

± 0.2% R ± 0.2 V

Model Number

PEL113

Number of Channels

8

Measurement Parameters

Power, Voltage, Harmonic, Energy, Frequency, Current

Interface Type

IR, USB, WiFi, Ethernet

Data Logger Type

Power & Energy

Power Source

110/250 V

IP Rating

IP54

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Width

125mm

Hazardous Area Certification

No

Length

256mm

Height

37mm

Standards/Approvals

RoHS, IEC 61010 1000 V CAT IV for PEL113 and PEL115, IEC 61010 600 V CA T IV and 1 000 V CA T III for PEL112

Display Type

LCD

Alarm

Yes

Number of Readings per Channel

5

Battery Type

Rechargeable Nickel-Metal Hydride

Pays d'origine :
FR
Whether you want to monitor and map all your electrical installations, optimise your energy efficiency and energy savings, control your consumption and improve the performance of your facilities, the PEL 110 series of portable power and energy loggers guarantees you optimum performance.

Practical, economical and modern, the PEL 113 makes it easy to collect electrical data and can be installed without interrupting the mains supply. Its compact magnetised casing means the PEL 113 can be installed even where space is at a premium.

The PEL 113 power and energy logger has a wide measurement range for collecting and calculating all key parameters such as voltage, current, power, energy, phase shift, power factor and harmonic levels. The PEL 113 logger also has an alarm mode for setting limits and refining your analyses.

Equipped with an SD card, the power logger is capable of storing millions of readings, collected automatically over a representative period depending on your application (from a few minutes to several months).

Ultra-communicative, all data can be monitored in real time and retrieved locally or remotely via USB, Ethernet or WiFi. In addition, a secure IRD DataView Synch server is available for you to consult your data from anywhere in the world.

The PEL Transfer software with the energy logger allow to analyse the recorded data. Based on the power measurement campaigns carried out, the software automatically breaks down the losses detected and directly calculates the cost of the energy consumed; it displays the result in the local currency selected. Energy consumption reports can be easily generated.

A dedicated ANDROID application can also be used to check that the PEL 113 is working properly and to change its configuration.

The PEL113 is delivered with : 1 carrying bag, 4 voltage cables, 4 crocodile clips, 1 set of inserts/ rings, 1 SD card, 1 SD Card-USB adapter, 1 USB cable, 1 main cable, PEL TRANSFER PC software & User’s Manual downloadable from our website, 1 Quick Start Guide.

  • Compact magnetised case

  • Quadruple backlit digital display

  • Communication via Wifi, LAN (Ethernet) and USB

  • ANDROID application

  • Self-powered by phase

  • Recording over several months (SD card)

  • Automatic recognition of sensor type

  • 4 voltage inputs and 3 current inputs

  • Wide measurement range

  • Breakdown of energy losses

  • Frequency, cos φ, tan Φ, PF

  • Useful, active, reactive and apparent powers and energies,

  • THD calculation for currents and voltages
