Chauvin Arnoux PEL51 Power & Energy Energy Monitor & Logger, WiFi, USB, Bluetooth - RSCAL
- N° de stock RS:
- 255-2926
- Référence fabricant:
- P01157166
- Fabricant:
- Chauvin Arnoux
Sous-total (1 unité)*
1 153,94 €
(TVA exclue)
1 396,27 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- 1 unité(s) expédiée(s) à partir du 26 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 1 153,94 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 255-2926
- Référence fabricant:
- P01157166
- Fabricant:
- Chauvin Arnoux
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Chauvin Arnoux | |
| Product Type | Energy Monitor & Logger | |
| Model Number | PEL51 | |
| Accuracy | ± 0.2% R ± 0.2 V | |
| Measurement Parameters | Voltage, Frequency, Current, Harmonic, Power, Energy | |
| Interface Type | WiFi, USB, Bluetooth | |
| Data Logger Type | Power & Energy | |
| Power Source | Battery | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 88 mm | |
| Hazardous Area Certification | No | |
| Length | 180mm | |
| Height | 37mm | |
| Standards/Approvals | RoHS | |
| Display Type | LCD Backlight | |
| Resolution | 1 mA | |
| Number of Readings per Channel | 1 | |
| Alarm | Yes | |
| Battery Type | Nickel-Metal Hydride | |
| Calibrated | RSCAL | |
| Battery Life | 1h | |
| Maximum Measurement | 600 V | |
| Sélectionner tout | ||
|---|---|---|
Marque Chauvin Arnoux | ||
Product Type Energy Monitor & Logger | ||
Model Number PEL51 | ||
Accuracy ± 0.2% R ± 0.2 V | ||
Measurement Parameters Voltage, Frequency, Current, Harmonic, Power, Energy | ||
Interface Type WiFi, USB, Bluetooth | ||
Data Logger Type Power & Energy | ||
Power Source Battery | ||
IP Rating IP54 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Width 88 mm | ||
Hazardous Area Certification No | ||
Length 180mm | ||
Height 37mm | ||
Standards/Approvals RoHS | ||
Display Type LCD Backlight | ||
Resolution 1 mA | ||
Number of Readings per Channel 1 | ||
Alarm Yes | ||
Battery Type Nickel-Metal Hydride | ||
Calibrated RSCAL | ||
Battery Life 1h | ||
Maximum Measurement 600 V | ||
- Pays d'origine :
- FR

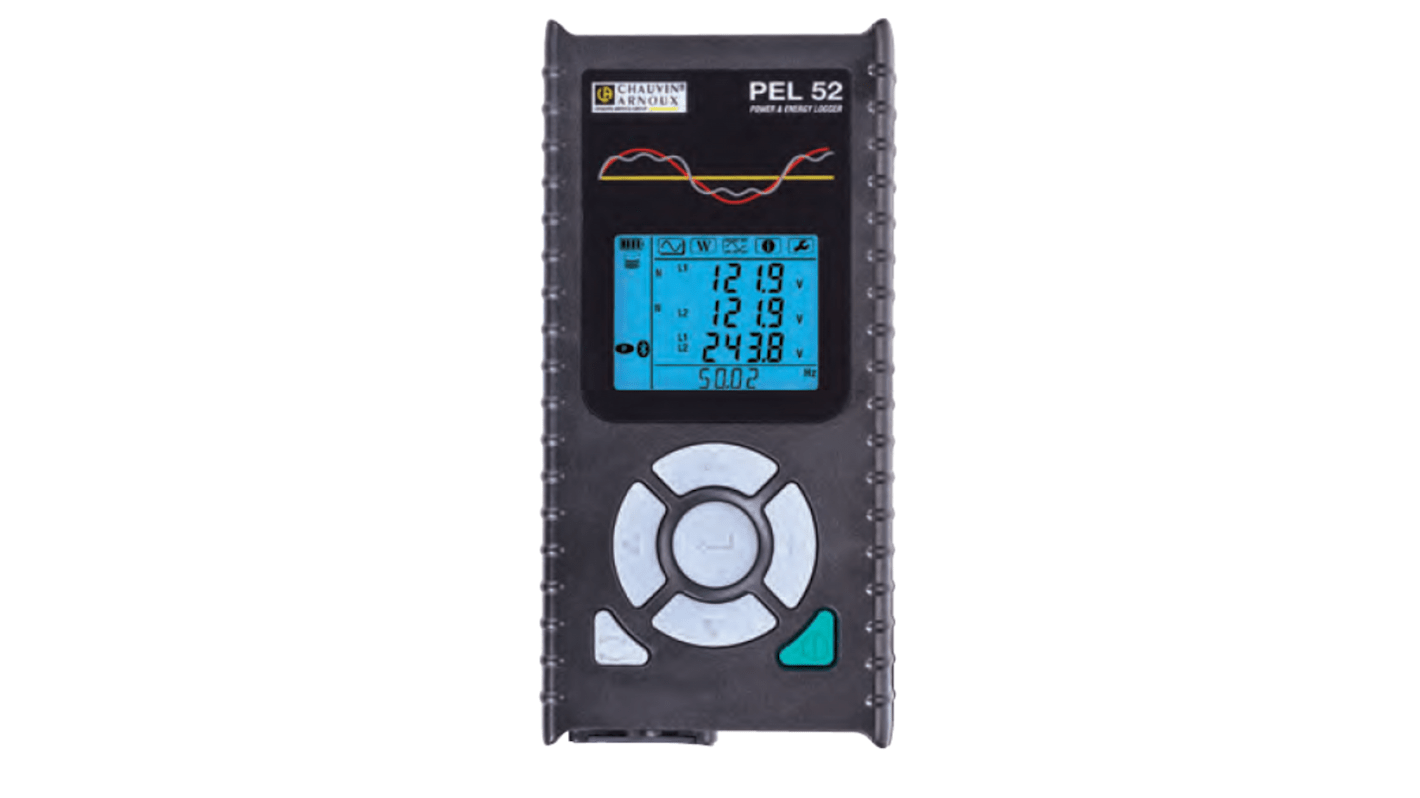

The Chauvin Arnoux power & energy logger are single-phase power & energy logger, it is use to record voltage, current, power and energy on alternating current distribution grids (50 Hz or 60 Hz). It is designed to operate in 690 V, logger has 1V / 1I channel. The logger has backlit LCD (blue) with double display. It can measure up to 690 V. data can store on device.
Network frequencies DC, 50 Hz, 60 Hz
Voltage 10 Vac to 690 Vac
Mounting magnet
Phase cos ϕ, tan Φ, PF
