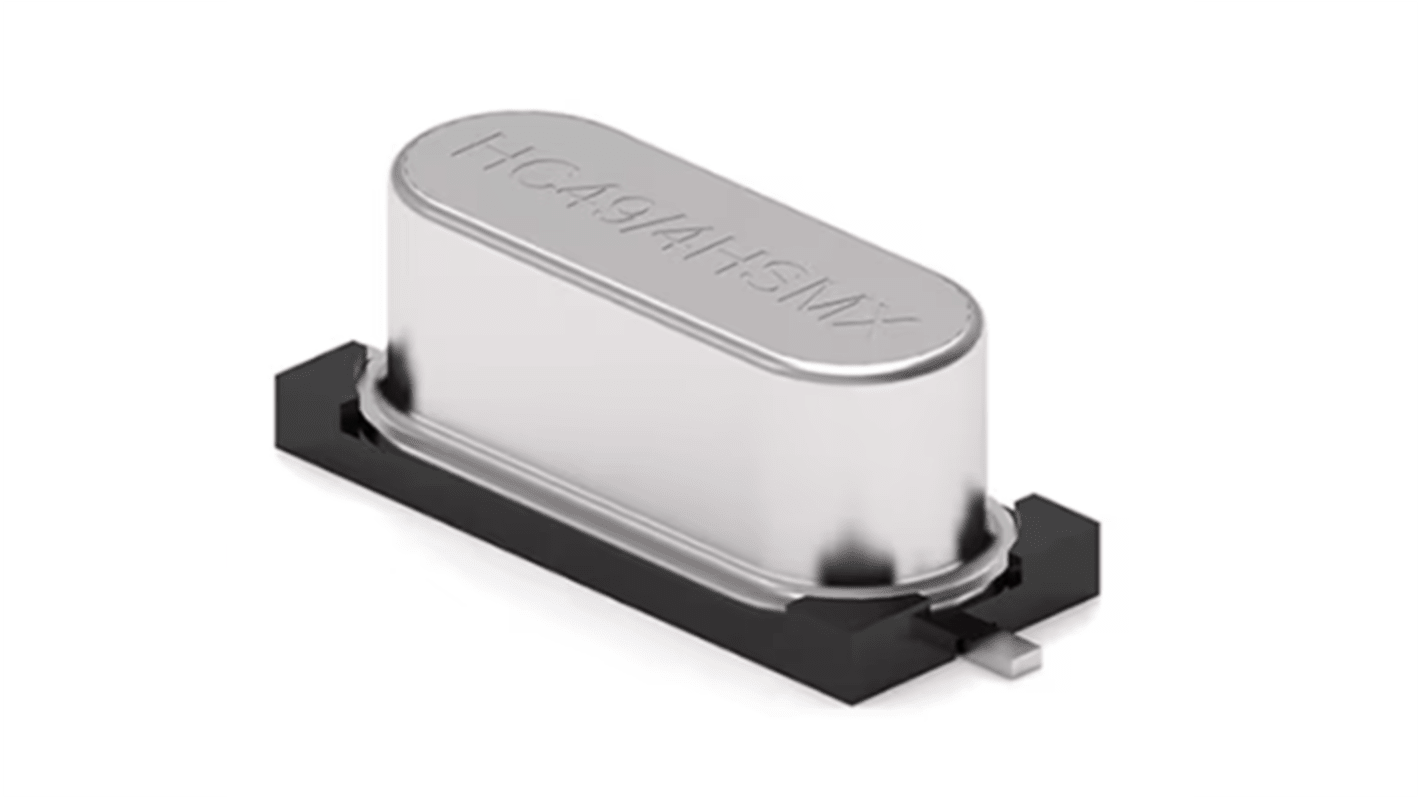

Wurth Elektronik 20 MHz Crystal ±30.00 ppm SMT 2-Pin 4.9 mm 13.4 mm 4.3mm
- N° de stock RS:
- 197-698
- Référence fabricant:
- 830003181
- Fabricant:
- Wurth Elektronik
Sous-total (1 bobine de 1000 unités)*
281,00 €
(TVA exclue)
340,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 11 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 1000 + | 0,281 € | 281,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 197-698
- Référence fabricant:
- 830003181
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Product Type | Crystal | |
| Standard Frequency | 20MHz | |
| Mount Type | Surface | |
| Load Capacitance | 16pF | |
| Package Type | SMT | |
| Packaging | Tape & Reel | |
| Pin Count | 2 | |
| Length | 13.4mm | |
| Width | 4.3mm | |
| Height | 4.9mm | |
| Frequency Tolerance | ±30.00 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -10.00°C | |
| Maximum Operating Temperature | 60.00°C | |
| Series Resistance | 40Ω | |
| Standards/Approvals | REACH, RoHS | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Product Type Crystal | ||
Standard Frequency 20MHz | ||
Mount Type Surface | ||
Load Capacitance 16pF | ||
Package Type SMT | ||
Packaging Tape & Reel | ||
Pin Count 2 | ||
Length 13.4mm | ||
Width 4.3mm | ||
Height 4.9mm | ||
Frequency Tolerance ±30.00 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -10.00°C | ||
Maximum Operating Temperature 60.00°C | ||
Series Resistance 40Ω | ||
Standards/Approvals REACH, RoHS | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
The Wurth Elektronik Industry Standard SMD crystal is designed to meet the high demands of modern electronic applications. Manufactured with precision, it combines robust construction through resistance welding and hermetic sealing in an inert atmosphere. The crystal features glass to metal Seals on leads, ensuring enhanced reliability and performance over extended use. The gull wing mount configuration allows for ease of integration into various PCB designs.
Resistant to mechanical stress due to robust construction techniques
Hermetically sealed to ensure long term performance and reliability
Wide operating temperature range for versatile application across environments
Optimized for low ageing effects to maintain performance stability
Reflow compliant with RoHS standards for environmentally friendly production
Flexible packaging options available to suit different manufacturing needs
