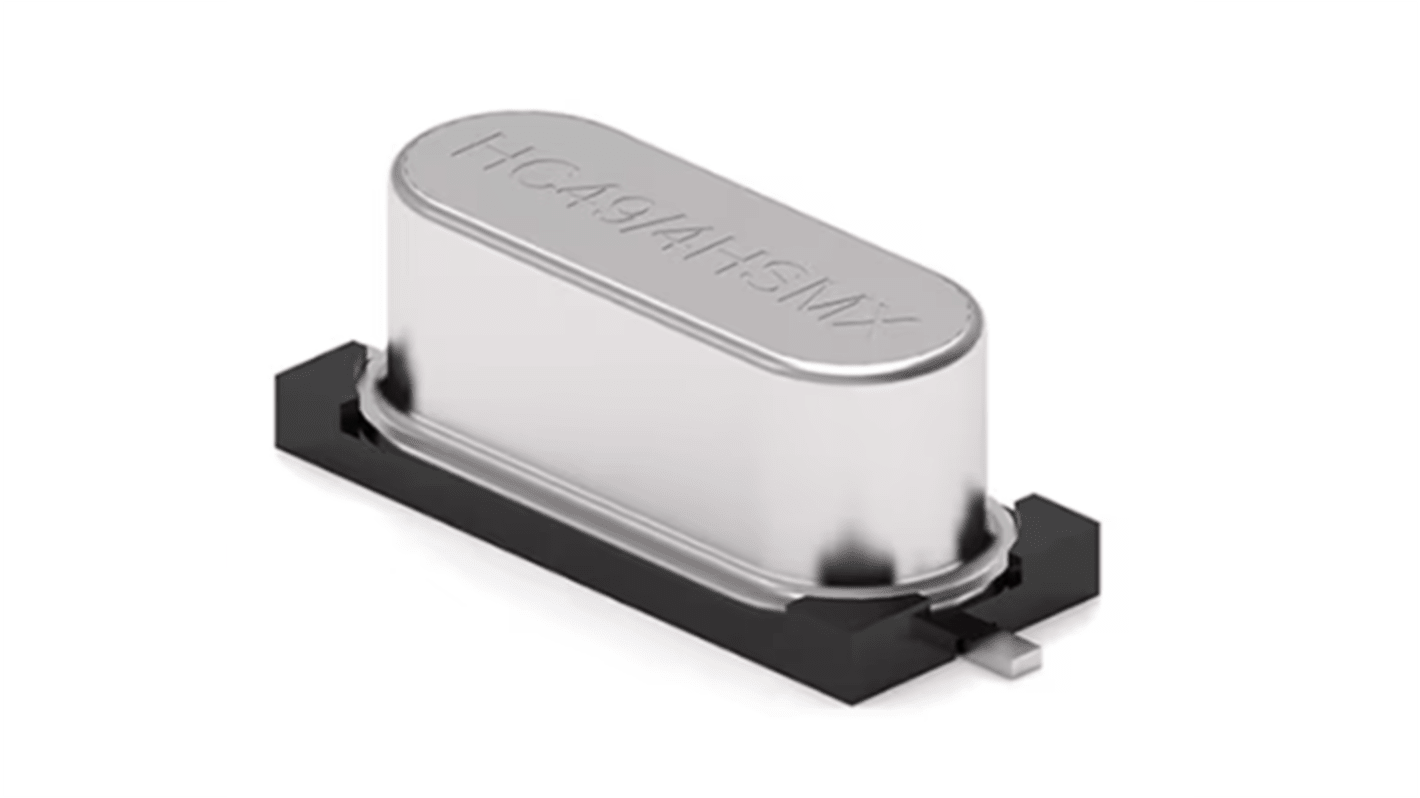

Wurth Elektronik 5 MHz Crystal ±30.00 ppm SMT 2-Pin 4.9 mm 13.4 mm 4.3mm
- N° de stock RS:
- 197-677
- Référence fabricant:
- 830012312
- Fabricant:
- Wurth Elektronik
Sous-total (1 bobine de 1000 unités)*
195,00 €
(TVA exclue)
236,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 28 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 1000 + | 0,195 € | 195,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 197-677
- Référence fabricant:
- 830012312
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Standard Frequency | 5MHz | |
| Product Type | Crystal | |
| Mount Type | Surface | |
| Load Capacitance | 30pF | |
| Package Type | SMT | |
| Packaging | Tape & Reel | |
| Pin Count | 2 | |
| Length | 13.4mm | |
| Width | 4.3mm | |
| Height | 4.9mm | |
| Frequency Tolerance | ±30.00 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -10.00°C | |
| Series Resistance | 130Ω | |
| Maximum Operating Temperature | 60.00°C | |
| Standards/Approvals | RoHS (2011/65/EU), REACH Status | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Standard Frequency 5MHz | ||
Product Type Crystal | ||
Mount Type Surface | ||
Load Capacitance 30pF | ||
Package Type SMT | ||
Packaging Tape & Reel | ||
Pin Count 2 | ||
Length 13.4mm | ||
Width 4.3mm | ||
Height 4.9mm | ||
Frequency Tolerance ±30.00 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -10.00°C | ||
Series Resistance 130Ω | ||
Maximum Operating Temperature 60.00°C | ||
Standards/Approvals RoHS (2011/65/EU), REACH Status | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
The Wurth Elektronik Quartz Crystal presents an industry standard SMD crystal engineered for exceptional performance. With its unique construction, featuring resistance welding and hermetically sealed packaging in an inert atmosphere, it ensures reliable functionality even in demanding conditions. Its gull wing mount facilitates straightforward installation, optimizing space while maintaining connectivity.
Shock and vibration resistant for added durability
Compact gull wing mount design ensures easy integration
Compatibility with multiple applications across different industries
RoHS compliant materials promote environmental sustainability
Offers a typical ageing rate for reliable long term use
