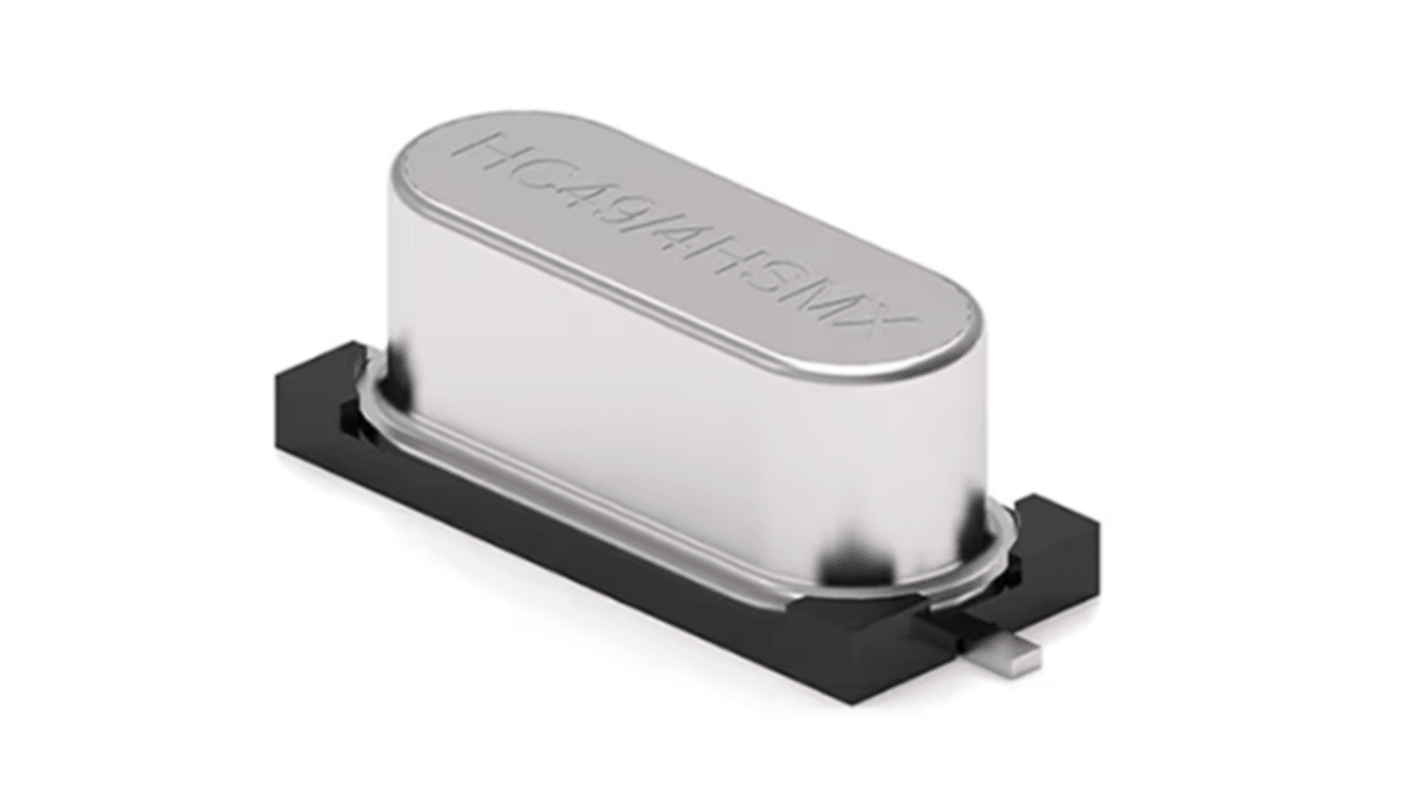

Wurth Elektronik 3.2768 MHz Crystal ±30.00 ppm SMT 2-Pin 4.9 mm 13.4 mm 4.3mm
- N° de stock RS:
- 197-670
- Référence fabricant:
- 830028430
- Fabricant:
- Wurth Elektronik
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 ruban de 10 unités)*
4,14 €
(TVA exclue)
5,01 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 450 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 10 - 90 | 0,414 € | 4,14 € |
| 100 - 240 | 0,395 € | 3,95 € |
| 250 - 490 | 0,365 € | 3,65 € |
| 500 + | 0,336 € | 3,36 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 197-670
- Référence fabricant:
- 830028430
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Product Type | Crystal | |
| Standard Frequency | 3.2768MHz | |
| Mount Type | Surface | |
| Load Capacitance | 18pF | |
| Package Type | SMT | |
| Packaging | Tape & Reel | |
| Pin Count | 2 | |
| Length | 13.4mm | |
| Width | 4.3mm | |
| Height | 4.9mm | |
| Frequency Tolerance | ±30.00 ppm | |
| Frequency Stability | ±30 ppm | |
| Minimum Operating Temperature | -20.00°C | |
| Maximum Operating Temperature | 70.00°C | |
| Series Resistance | 300Ω | |
| Standards/Approvals | EU, REACH, RoHS 2011 | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Product Type Crystal | ||
Standard Frequency 3.2768MHz | ||
Mount Type Surface | ||
Load Capacitance 18pF | ||
Package Type SMT | ||
Packaging Tape & Reel | ||
Pin Count 2 | ||
Length 13.4mm | ||
Width 4.3mm | ||
Height 4.9mm | ||
Frequency Tolerance ±30.00 ppm | ||
Frequency Stability ±30 ppm | ||
Minimum Operating Temperature -20.00°C | ||
Maximum Operating Temperature 70.00°C | ||
Series Resistance 300Ω | ||
Standards/Approvals EU, REACH, RoHS 2011 | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
The Wurth Elektronik Industry Standard SMD crystal combines precision and reliability, making it an Ideal choice for various electronic applications. Resiliently designed, it features resistance welded and hermetically sealed components, ensuring exceptional performance in diverse atmospheric conditions. The crystal leverages glass to metal Seals on leads, providing robust protection against environmental challenges.
Gull wing mount offers ease of integration into Compact circuit designs
Optimized ageing characteristics minimize performance drift over time
Compliant with RoHS promoting environmentally conscious manufacturing
Capacitance specifications cater to a variety of load requirements
Exceptional vibration and shock resistance promotes operational reliability
