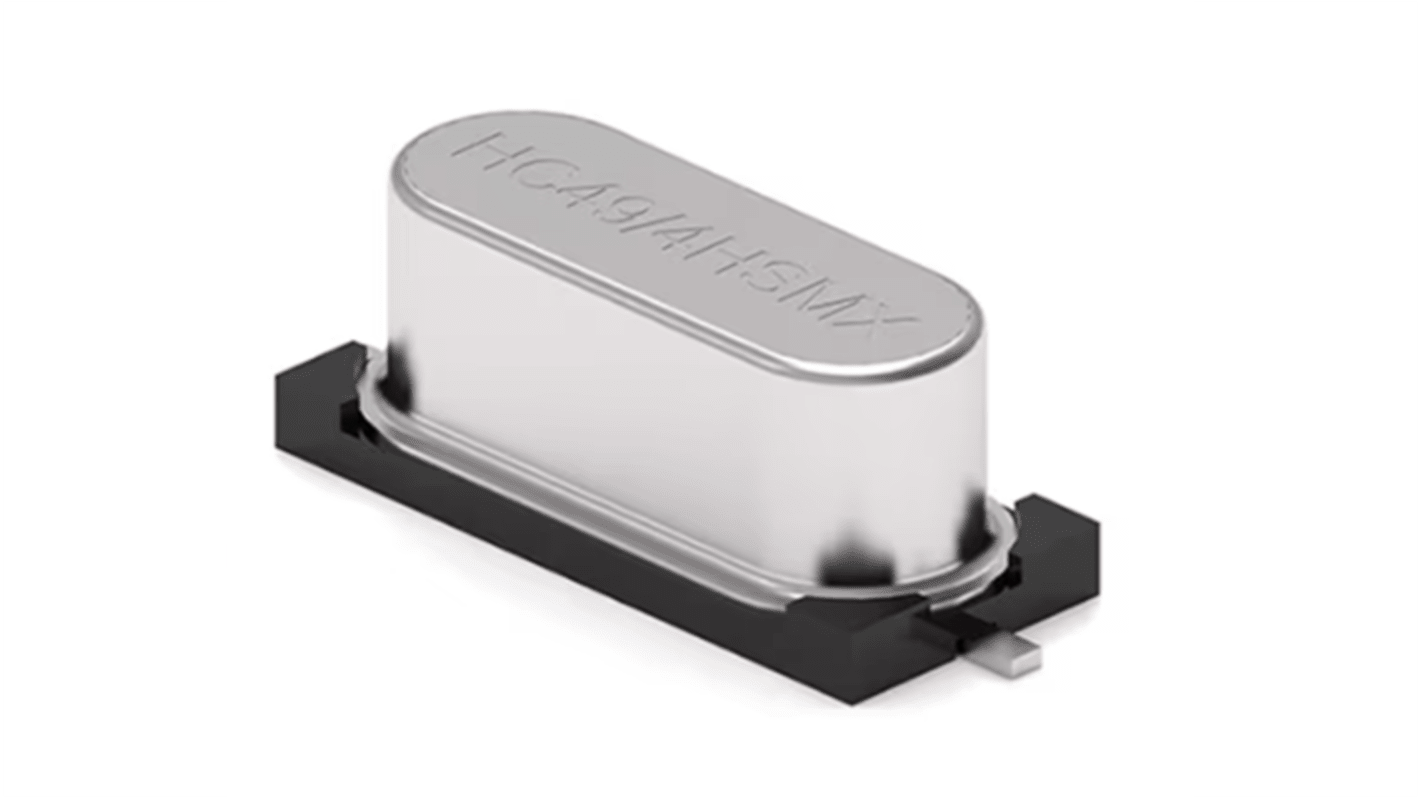

Wurth Elektronik 3.6864 MHz Crystal ±30.00 ppm SMT 2-Pin 4.9 mm 13.4 mm 4.3mm
- N° de stock RS:
- 197-689
- Référence fabricant:
- 830003260
- Fabricant:
- Wurth Elektronik
Sous-total (1 bobine de 1000 unités)*
254,00 €
(TVA exclue)
307,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 000 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 1000 + | 0,254 € | 254,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 197-689
- Référence fabricant:
- 830003260
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Standard Frequency | 3.6864MHz | |
| Product Type | Crystal | |
| Mount Type | Surface | |
| Load Capacitance | 16pF | |
| Package Type | SMT | |
| Packaging | Tape & Reel | |
| Pin Count | 2 | |
| Length | 13.4mm | |
| Width | 4.3mm | |
| Height | 4.9mm | |
| Frequency Tolerance | ±30.00 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -10.00°C | |
| Series Resistance | 300Ω | |
| Maximum Operating Temperature | 60.00°C | |
| Standards/Approvals | RoHS, REACH | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Standard Frequency 3.6864MHz | ||
Product Type Crystal | ||
Mount Type Surface | ||
Load Capacitance 16pF | ||
Package Type SMT | ||
Packaging Tape & Reel | ||
Pin Count 2 | ||
Length 13.4mm | ||
Width 4.3mm | ||
Height 4.9mm | ||
Frequency Tolerance ±30.00 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -10.00°C | ||
Series Resistance 300Ω | ||
Maximum Operating Temperature 60.00°C | ||
Standards/Approvals RoHS, REACH | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
The Wurth Elektronik Quartz Crystal presented here is quintessential for applications requiring precise frequency stability. This industry standard SMD crystal boasts a robust construction, with resistance welding and hermetic sealing ensuring reliability in various environments. Its unique gull wing mount facilitates easy integration into circuit designs, while the fundamental overtone order caters to a multitude of electronic uses.
Facilitates straightforward mounting with its gull wing design
Offers excellent frequency stability to ensure accurate timing
Satisfies rigorous industry standards for reliability and quality
Ideal for various electronic applications from consumer to industrial use
Complies with RoHS requirements for environmentally friendly operation
