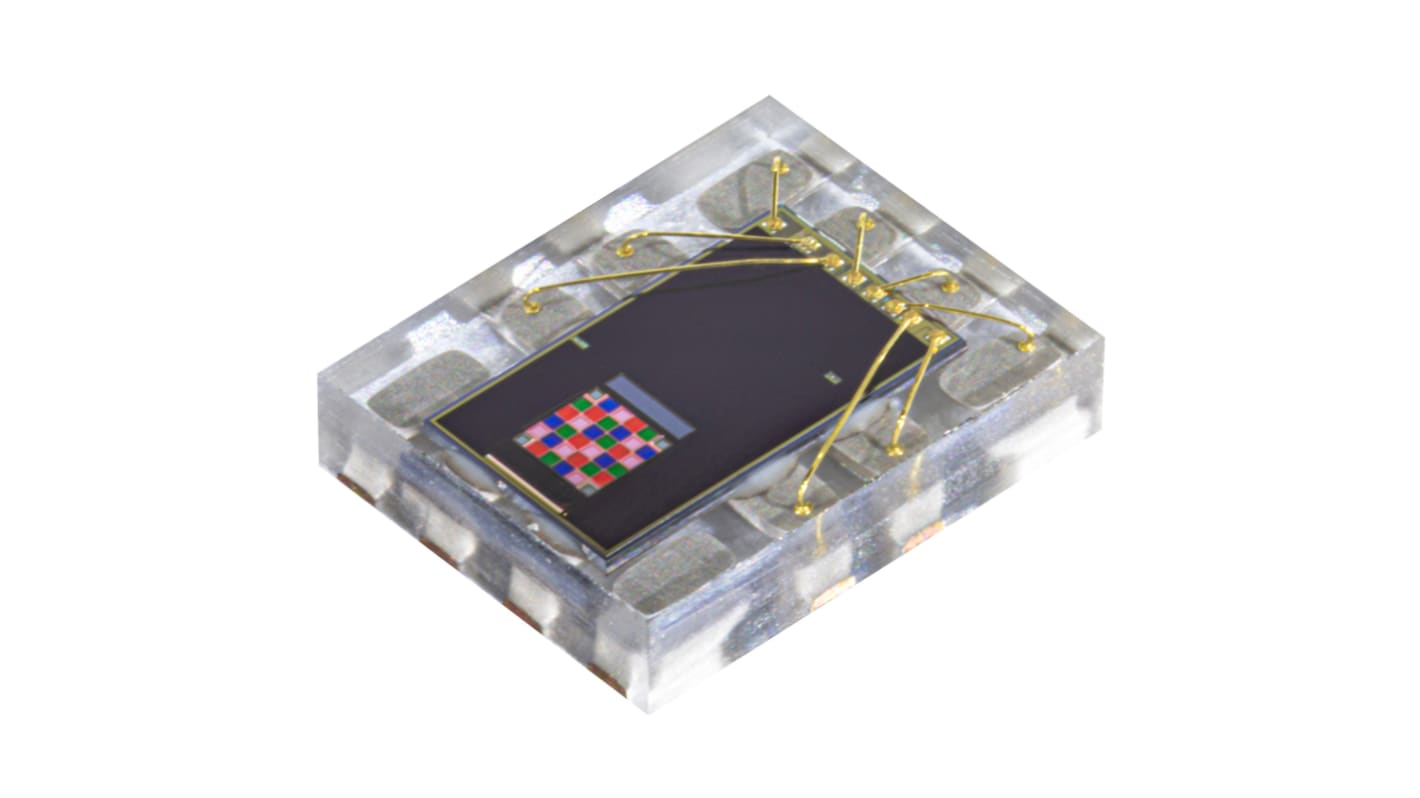

TCS37073M ams OSRAM Colour & Light Sensor 615 nm I2C 12-Pin 12-QFN
- N° de stock RS:
- 232-9727
- Référence fabricant:
- TCS37073M
- Fabricant:
- ams OSRAM
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
3,97 €
(TVA exclue)
4,805 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Dernier stock RS
- 1 895 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 20 | 0,794 € | 3,97 € |
| 25 - 45 | 0,77 € | 3,85 € |
| 50 - 120 | 0,752 € | 3,76 € |
| 125 - 495 | 0,732 € | 3,66 € |
| 500 + | 0,714 € | 3,57 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 232-9727
- Référence fabricant:
- TCS37073M
- Fabricant:
- ams OSRAM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ams OSRAM | |
| Product Type | Colour & Light Sensor | |
| Peak Wavelength | 615nm | |
| Mount Type | Surface | |
| Maximum Frequency | 400kHz | |
| Package Type | 12-QFN | |
| Pin Count | 12 | |
| Interface Type | I2C | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 2V | |
| Minimum Operating Temperature | -30°C | |
| Width | 2 mm | |
| Height | 500μm | |
| Standards/Approvals | No | |
| Series | TCS3707 | |
| Length | 2.50mm | |
| Maximum Operating Temperature | 70°C | |
| Automotive Standard | No | |
| Technology | Digital | |
| Supply Current | 280μA | |
| Sélectionner tout | ||
|---|---|---|
Marque ams OSRAM | ||
Product Type Colour & Light Sensor | ||
Peak Wavelength 615nm | ||
Mount Type Surface | ||
Maximum Frequency 400kHz | ||
Package Type 12-QFN | ||
Pin Count 12 | ||
Interface Type I2C | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 2V | ||
Minimum Operating Temperature -30°C | ||
Width 2 mm | ||
Height 500μm | ||
Standards/Approvals No | ||
Series TCS3707 | ||
Length 2.50mm | ||
Maximum Operating Temperature 70°C | ||
Automotive Standard No | ||
Technology Digital | ||
Supply Current 280μA | ||
- Pays d'origine :
- TW
The ams TCS3707 series is a very-high sensitivity light-to-digital converter that features ambient light and colour sensing, proximity and flicker detection. The ambient light and colour sensing function provide five concurrent ambient light sensing channels as red, green, blue, clear, and wideband. The RGB and clear channels have a UV/IR blocking filter. This architecture accurately measures ambient light and enables the calculation of illuminance, chromaticity, and colour temperature to manage display appearance.
Ultra-high ALS and colour sensitivity
1024x dynamic range
50/60 Hz ambient light flicker detection channel
Clear, IR, and wideband reference channels
High proximity crosstalk compensation
0.18μm process technology with 1.8V I²C
