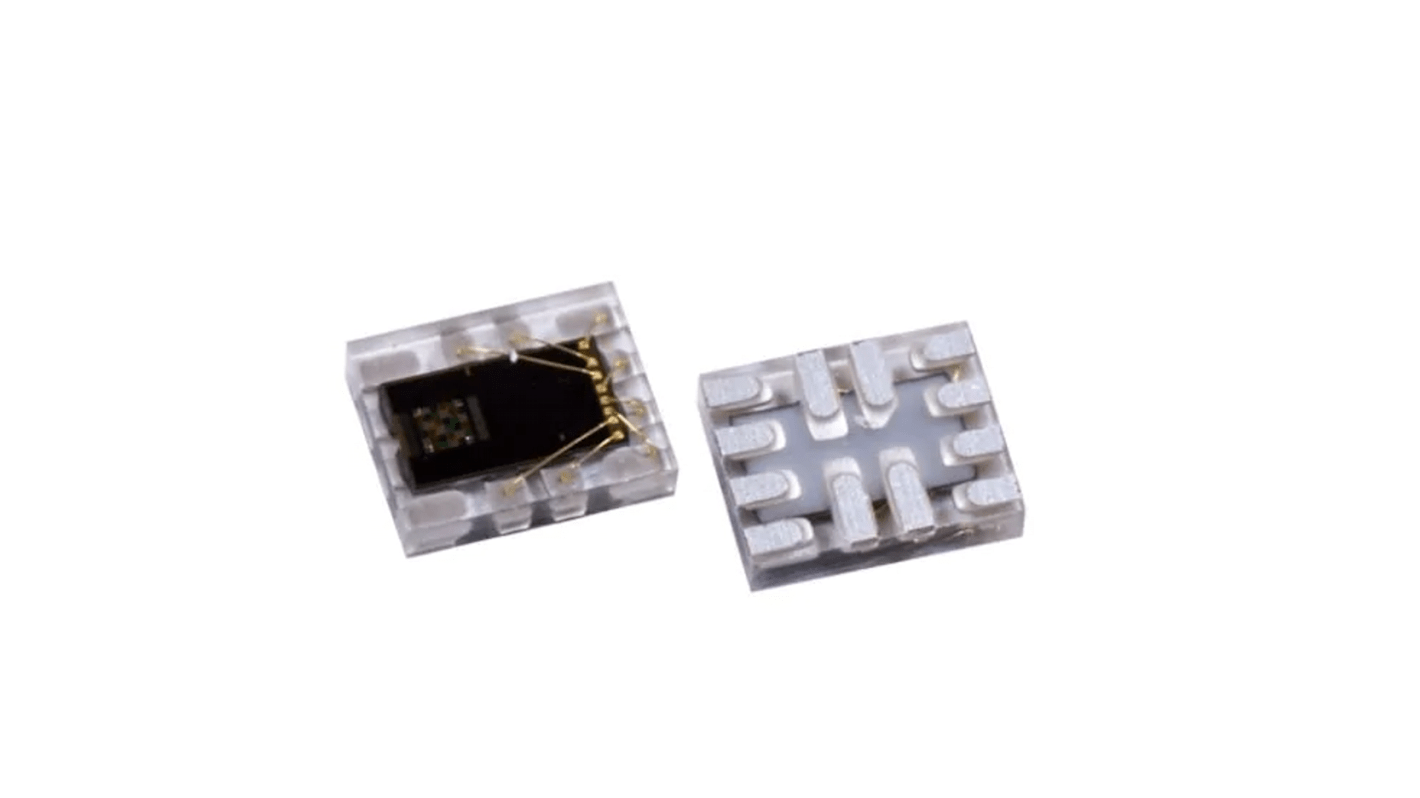

TCS34083M ams OSRAM Colour & Light Sensor 615 nm I2C 12-Pin QFN

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
Options de conditionnement :
N° de stock RS:
232-9718
Référence fabricant:
TCS34083M
Fabricant:
ams OSRAM
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

ams OSRAM

Product Type

Colour & Light Sensor

Peak Wavelength

615nm

Mount Type

Surface

Package Type

QFN

Maximum Frequency

400kHz

Interface Type

I2C

Pin Count

12

Minimum Supply Voltage

1.7V

Maximum Supply Voltage

2V

Minimum Operating Temperature

-30°C

Series

TCS3408

Standards/Approvals

No

Height

500μm

Length

2.50mm

Width

2 mm

Maximum Operating Temperature

70°C

Technology

Digital

Supply Current

280μA

Automotive Standard

No

Pays d'origine :
TW
The ams TCS3408 series is an ultra-high sensitivity light-to-digital converter that features ambient light and colour sensing and selective flicker detection. The ambient light and colour sensing function provide five concurrent ambient light sensing channels as red, green, blue, clear, and wideband. The RGB and clear channels have a UV/IR blocking filter. This architecture accurately measures ambient light and enables the calculation of illuminance, chromaticity, and colour temperature to manage display appearance.

Ultra-high ALS and colour sensitivity

Dual 50/60 Hz ambient light flicker detection channel

Improved RGBC and doubling of flicker gain

Enables accurate stable measurement behind inked materials

Enables dark room to sunlight operation

Minimizes Camera flic
