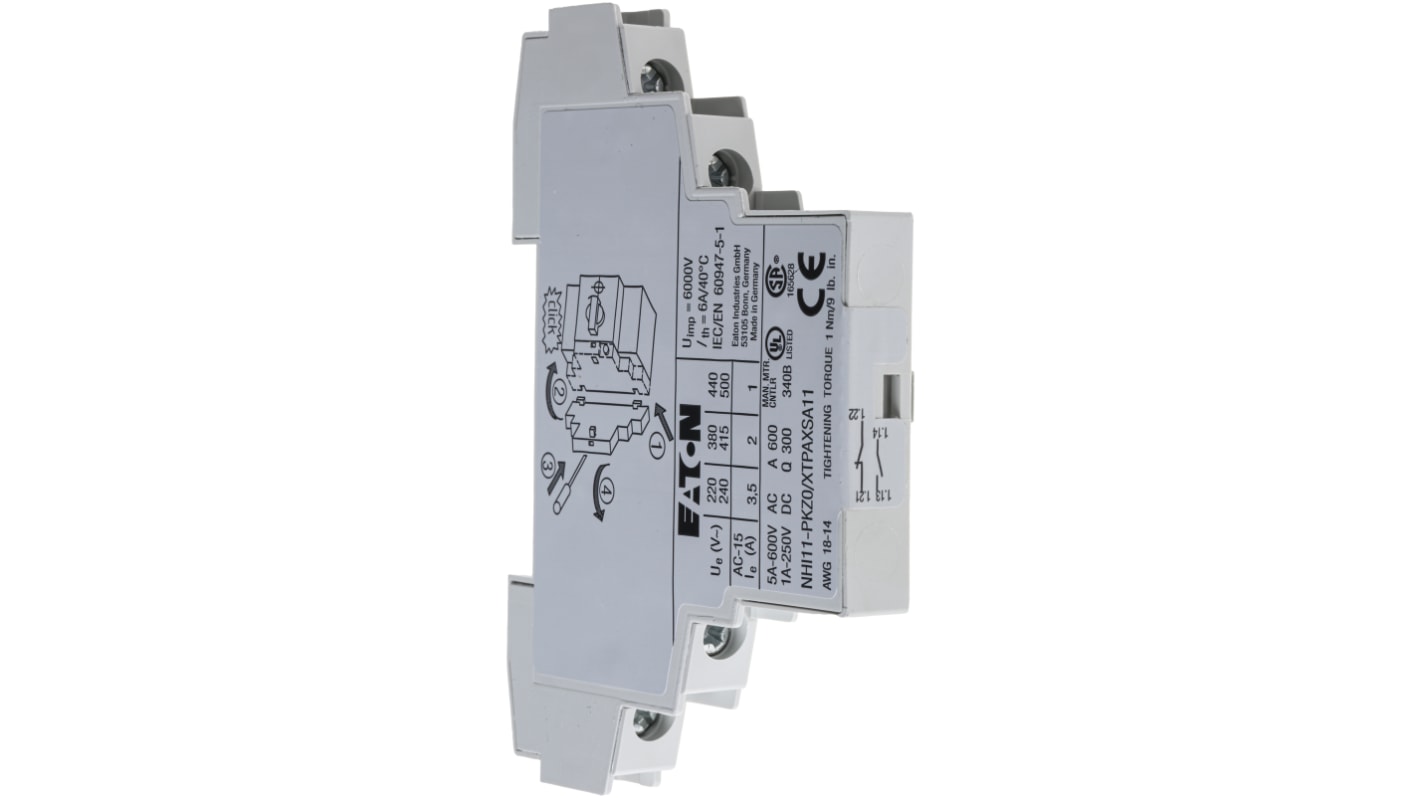

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, PKZ0, Top, 3.5 A ac, 220 V dc, 500V ac, 072896 NHI11-PKZ0
- N° de stock RS:
- 818-277
- Numéro d'article Distrelec:
- 136-22-518
- Référence fabricant:
- 072896 NHI11-PKZ0
- Fabricant:
- Eaton
Sous-total (1 unité)*
11,72 €
(TVA exclue)
14,18 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 243 unité(s) prête(s) à être expédiée(s)
- Plus 141 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 11,72 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 818-277
- Numéro d'article Distrelec:
- 136-22-518
- Référence fabricant:
- 072896 NHI11-PKZ0
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | PKZ0 | |
| Contact Current | 3.5A ac | |
| Mount Type | Top | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | DPST | |
| Contact Voltage | 220, 500V dc | |
| Mechanical Durability | 0.1Mcycles | |
| Mounting Location | Side Mounting | |
| Rated Insulation Voltage Ui | 690V | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 3.5A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL, IEC6094741, CSAC. . 14, CE | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NO/1 NC | ||
Series PKZ0 | ||
Contact Current 3.5A ac | ||
Mount Type Top | ||
Terminal Type Screw | ||
Pole and Throw Configuration DPST | ||
Contact Voltage 220, 500V dc | ||
Mechanical Durability 0.1Mcycles | ||
Mounting Location Side Mounting | ||
Rated Insulation Voltage Ui 690V | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 3.5A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL, IEC6094741, CSAC. . 14, CE | ||
- Pays d'origine :
- DE
Eaton Auxiliary Contact, 6kV AC Impulse Withstand Voltage, Screw Termination - 072896 NHI11-PKZ0
For improved motor circuit protection, count on this auxiliary contact from Eaton. It's designed to work with circuit breakers and control secondary functions like trip indication or signal transmission to your equipment's PLC. The component's thermoplastic housing braves impacts and abrasion without breaking a sweat, so you can rest assured it'll stay on shift, even in harsh environments. It loses just 0.04W to heat during operation, making this your energy-efficient workmate. As it's DIN-rail mounted, you don't need specialised tools to set it up, saving time and effort. You'll find it used on assembly lines.
Features & Benefits
• Wide operating temperature range between -25°C and +55°C for use in extreme climates
• Narrow width of 9mm means it doesn't take up a lot of space, making it suitable for confined settings
• Impulse withstand voltage rating of 6kV to handle high power surges without damage
What's the service life of this auxiliary contact?
This unit has a mechanical lifespan of 100,000 operating cycles and an electrical lifespan of 50,000 cycles, so you can be sure of long-term performance.
