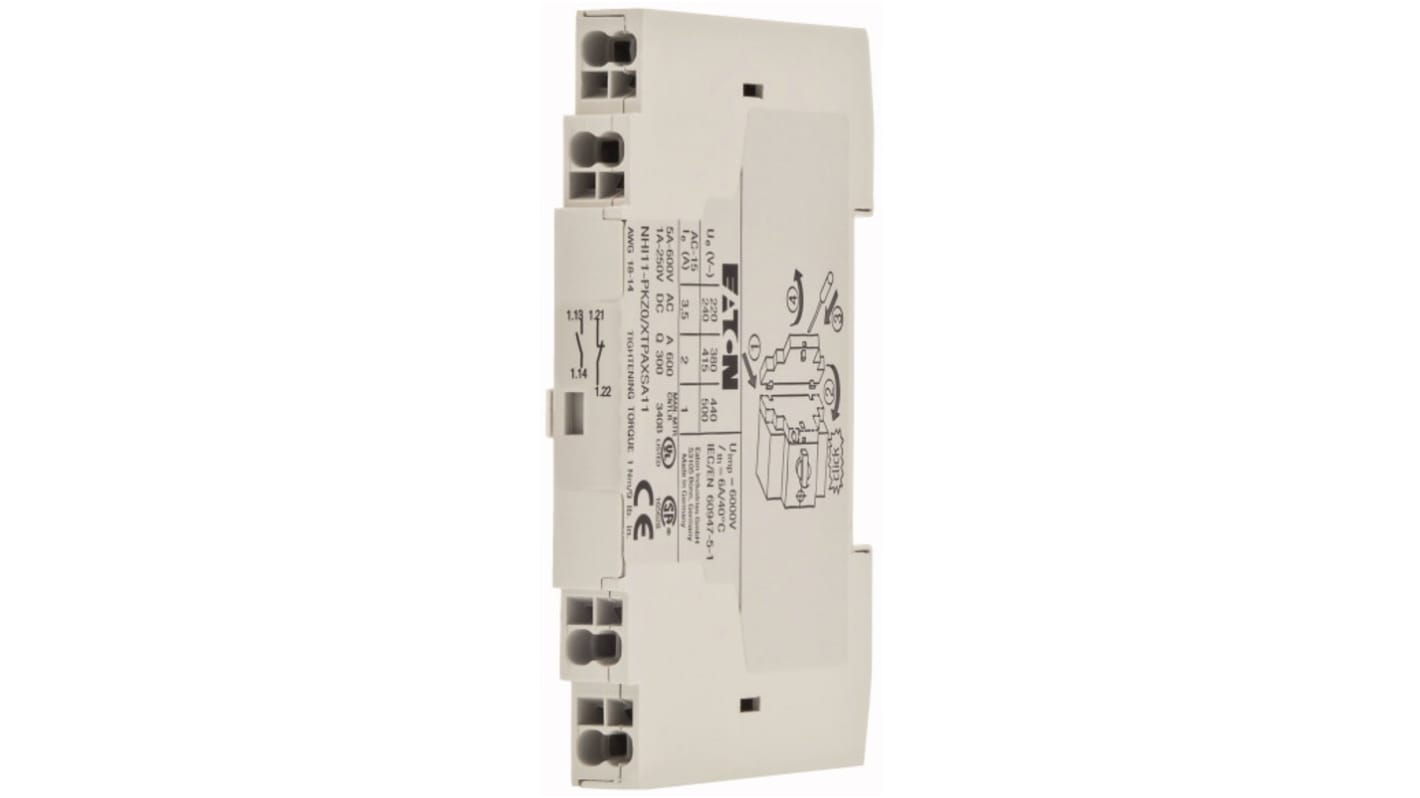

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, NHI, Front Fixing, 16 A, 199328 NHI11-PKZ0-PI
- N° de stock RS:
- 240-2867
- Référence fabricant:
- 199328 NHI11-PKZ0-PI
- Fabricant:
- Eaton
Sous-total (1 unité)*
11,94 €
(TVA exclue)
14,45 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 4 unité(s) expédiée(s) à partir du 17 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 11,94 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 240-2867
- Référence fabricant:
- 199328 NHI11-PKZ0-PI
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | NHI | |
| Contact Current | 16A | |
| Mount Type | Front Fixing | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 3.5A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NO/1 NC | ||
Series NHI | ||
Contact Current 16A | ||
Mount Type Front Fixing | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 3.5A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- DE
199328
The Eaton Standard Auxiliary contact with interlocked opposing contacts is rated for operational voltage of 500 VAC and 250 VDC. The device is available with Push-in terminals connection. It has an operating temperature range of -25°C to 55°C. It can be fitted into Motor protective circuit-breakers, Transformer-protective circuit-breakers, Motor protective circuit breakers for starter combinations, although cannot be used for motor starter combinations type MSC-R.
It has 1 N/O and 1 NC contact
It has a IP20 degree of protection
The device can be retrofitted on the right side of motor-protective circuit-breakers
Note
Eaton formerly known as Moeller
