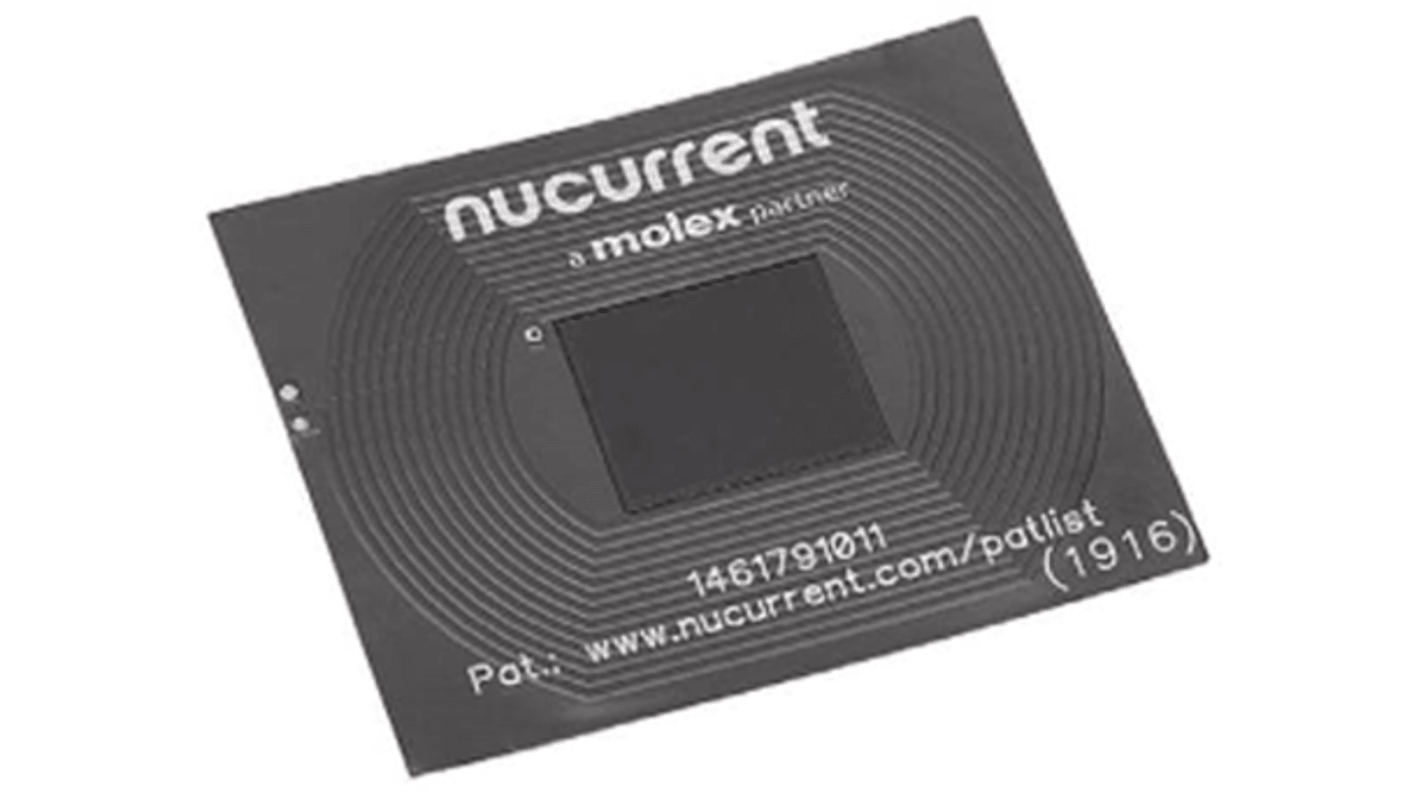

Molex 146179 Wireless Charging Coil Receiver, Transmitter, 9.6 μH, 27 mm dia.
- N° de stock RS:
- 124-5146
- Numéro d'article Distrelec:
- 302-97-255
- Référence fabricant:
- 146179-4011
- Fabricant:
- Molex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
11,44 €
(TVA exclue)
13,84 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 3 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 11,44 € |
| 10 - 49 | 10,38 € |
| 50 - 99 | 9,44 € |
| 100 - 249 | 9,19 € |
| 250 + | 8,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 124-5146
- Numéro d'article Distrelec:
- 302-97-255
- Référence fabricant:
- 146179-4011
- Fabricant:
- Molex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Molex | |
| Inductance | 9.6μH | |
| Product Type | Wireless Charging Coil | |
| Function | Receiver, Transmitter | |
| Maximum DC Resistance | 550mΩ | |
| Minimum Quality Factor | 18 | |
| Series | 146179 | |
| Core Material | Copper | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Inductance Tolerance | ±2 % | |
| Width | 0.54mm | |
| Standards/Approvals | RoHS | |
| Length | 25.3mm | |
| Termination Style | Solder | |
| Height | 3.7mm | |
| Diameter | 27mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Molex | ||
Inductance 9.6μH | ||
Product Type Wireless Charging Coil | ||
Function Receiver, Transmitter | ||
Maximum DC Resistance 550mΩ | ||
Minimum Quality Factor 18 | ||
Series 146179 | ||
Core Material Copper | ||
Pin Count 2 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Inductance Tolerance ±2 % | ||
Width 0.54mm | ||
Standards/Approvals RoHS | ||
Length 25.3mm | ||
Termination Style Solder | ||
Height 3.7mm | ||
Diameter 27mm | ||
- Pays d'origine :
- CN
Molex Wireless Charging Coils with NuCurrent Technology
Molex wireless charging coils support low,high and proprietry frequencies.The compact coils are ideal for a varied range of applications and are ideal for space constrained devices.The coils are produced on standard PCB or copper flex which withstands enviroments with high vibration, heat and humidity.
Applications
Smartphones
Personal Computers
Digital Cameras
Bluetooth Headsets
Keyboards
Gaming Systems
Low Power Applications
