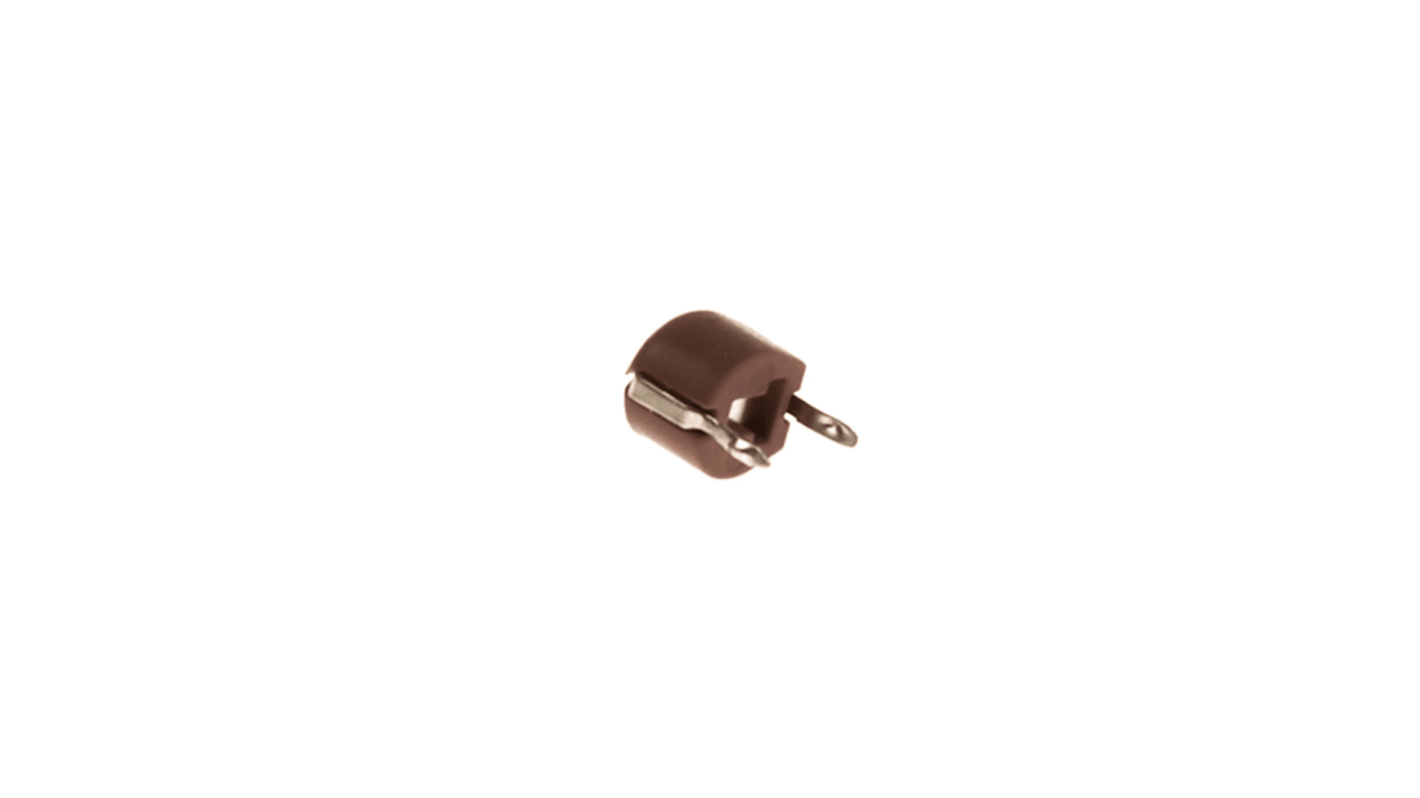

RS PRO Variable Trimmer Capacitor Ceramic 10 pF 50 pF 100 V dc
- N° de stock RS:
- 175-3548
- Fabricant:
- RS PRO
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 175-3548
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Variable Trimmer Capacitor | |
| Series | CVN | |
| Dielectric | Ceramic | |
| Rated AC Voltage | 100V ac | |
| Mount Type | Through Hole | |
| Tolerance | 0 to 50 % | |
| Rated DC Voltage | 100V dc | |
| Lead Pitch | 5.3mm | |
| Lead Diameter | 0.2mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 6mm | |
| Height | 6mm | |
| Width | 5mm | |
| Standards/Approvals | No | |
| Maximum Capacitance | 50pF | |
| Minimum Capacitance | 10pF | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Variable Trimmer Capacitor | ||
Series CVN | ||
Dielectric Ceramic | ||
Rated AC Voltage 100V ac | ||
Mount Type Through Hole | ||
Tolerance 0 to 50 % | ||
Rated DC Voltage 100V dc | ||
Lead Pitch 5.3mm | ||
Lead Diameter 0.2mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Length 6mm | ||
Height 6mm | ||
Width 5mm | ||
Standards/Approvals No | ||
Maximum Capacitance 50pF | ||
Minimum Capacitance 10pF | ||
- Pays d'origine :
- CN
RS PRO Ceramic Trimmer Capacitor
The RS PRO through-hole mount ceramic trimmer capacitor is a new age device. It comes with a voltage rating of 100V and capacitive range between 10pF and 50pF.
Features and Benefits
• Lead pitch is 5.3mm
• Operating temperature ranges between -25°C to 85°C
Applications
• Electric and electronic apparatus
• Communication equipment
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
