SMC for use with Nylon, FEP, PFA, Soft Nylon, Polyurethane Vacuum Generator

Voir la catégorie
Offre groupée disponible

Sous-total (1 unité)*

90,78 €

(TVA exclue)

109,84 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • Plus 10 unité(s) expédiée(s) à partir du 07 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité
Prix par unité
1 - 490,78 €
5 - 987,21 €
10 +83,55 €

*Prix donné à titre indicatif

N° de stock RS:
176-5421
Référence fabricant:
ZH20DSA-03-04-04
Fabricant:
SMC
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

SMC

Product Type

Vacuum Generator

For Use With

Nylon, FEP, PFA, Soft Nylon, Polyurethane

Standards/Approvals

RoHS

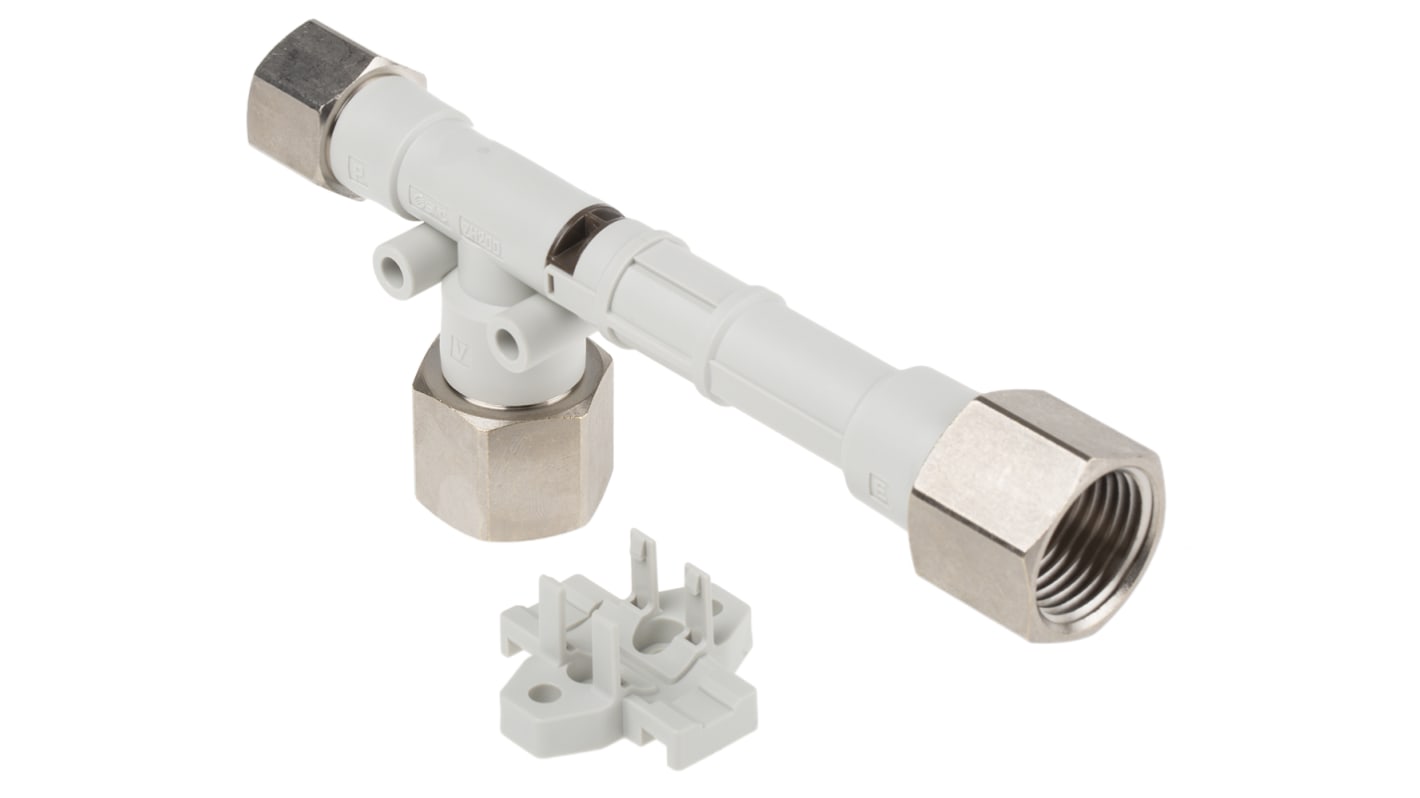

SMC Vacuum Generator, Compatible Media Nylon/FEP/PFA/Soft Nylon/Polyurethane - ZH20DSA-03-04-04


This vacuum generator provides compact, pneumatic suction for automation and pick-and-place tasks. It operates with compressed Air to produce a controlled negative pressure for handling a variety of plastic and polymer tubing, and is configured in a body-ported box style suitable for panel or manifold integration. The unit is supplied with a mounting bracket and omits a silencer in the box configuration, making it readily adaptable for confined assembly or robotic end‑of‑arm tooling environments.

Features & Benefits


• Nozzle dia 2.0mm delivers focused suction for small pick‑ups
• Maximum vacuum −90 kPa enables secure part retention
• Flow rate 90 l/min (ANR) supports moderate cycle speeds
• Pneumatic inlet R3/8 allows standard screw‑in supply connection
• Exhaust and vacuum ports R1/2 facilitate simple piping
• Operates between −5 °C and 50 °C for typical production settings

Applications


• Suitable for pick‑and‑place of electronic components using plastic tubing
• Ideal for vacuum handling in assembly cells with soft nylon hose
• Used with FEP or PFA tubing in clean manufacturing processes
• Can be used for sheet or foil lifting where Compact suction is required
• Suitable for robotic end‑of‑arm tooling in light industrial automation

What tubing materials are compatible with the unit?


It accepts soft nylon, nylon, polyurethane, FEP and PFA tubing for versatile connection choices.

How is the unit connected to plant Air and vacuum lines?


The supply uses a screw‑in R3/8 connection while vacuum and exhaust use screw‑in R1/2 fittings for secure piping.

What accessory configuration is supplied in the box style?


The product is delivered with a bracket and excludes a silencer in the box configuration to suit confined installations.

What operational temperatures should be observed during use?


Both the pressure medium and ambient temperatures must be kept within −5 °C to 50 °C to maintain proper function.
