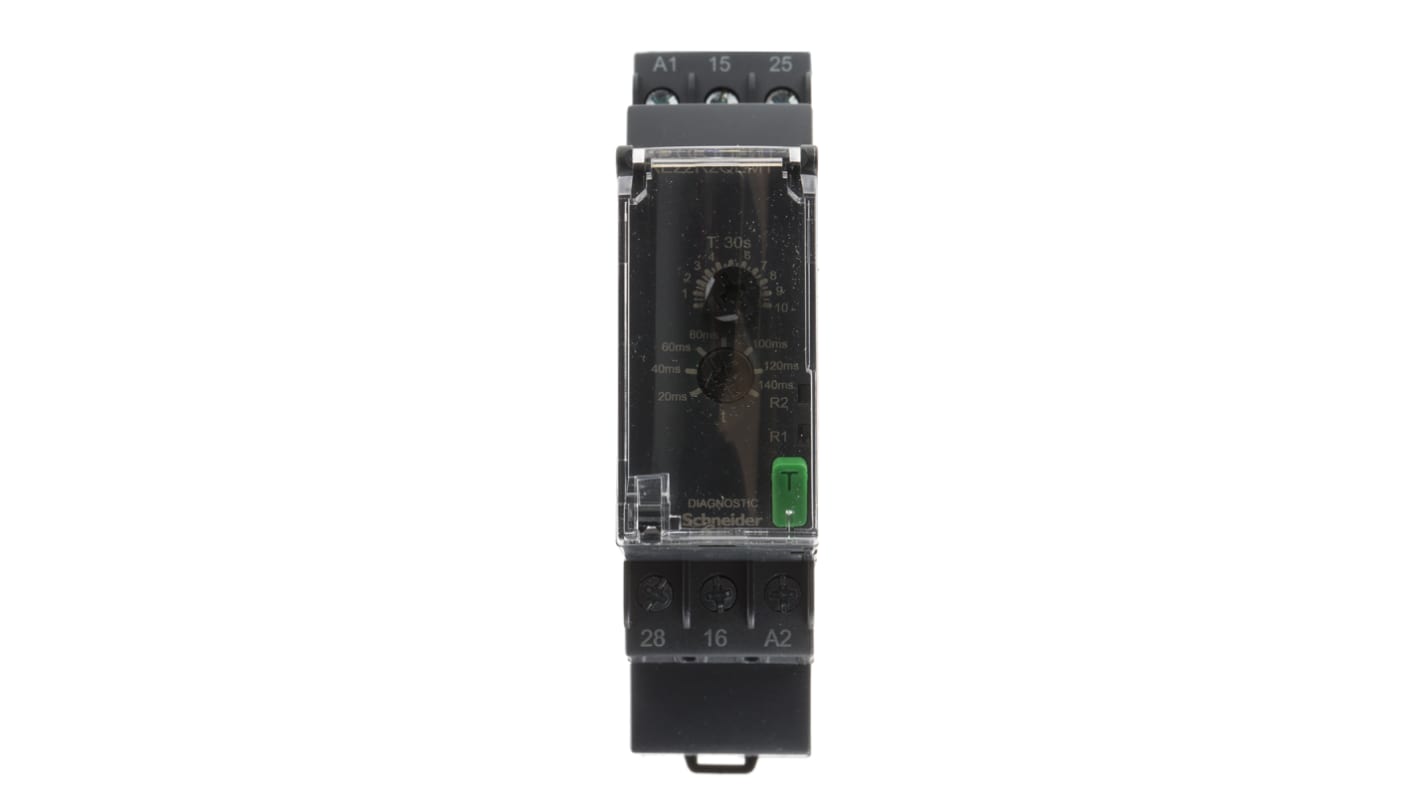

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 380 → 415V ac, 2-Contact, 0.3 → 30s,
- N° de stock RS:
- 897-6744
- Numéro d'article Distrelec:
- 303-02-800
- Référence fabricant:
- RE22R2QEMT
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
82,43 €
(TVA exclue)
99,74 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
- 3 unité(s) prête(s) à être expédiée(s)
- Plus 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Unité | Prix par unité |
|---|---|
| 1 - 9 | 82,43 € |
| 10 + | 70,06 € |
*Prix donné à titre indicatif
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 897-6744
- Numéro d'article Distrelec:
- 303-02-800
- Référence fabricant:
- RE22R2QEMT
- Fabricant:
- Schneider Electric
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Supply Voltage | 380 → 415V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Star Delta | |
| Time Range | 0.3 → 30s | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Single | |
| Contact Configuration | DPDT | |
| Time Increment | Seconds | |
| Maximum Current | 8A | |
| Maximum Voltage | 415V ac | |
| Switch Configuration | DPCO | |
| Terminal Type | Screw | |
| Width | 90mm | |
| Power Supply | External | |
| Minimum Voltage | 380V ac | |
| Series | Harmony Time | |
| Maximum Operating Temperature | +60°C | |
| Minimum Current | 10mA | |
| Depth | 79.5mm | |
| Length | 22.9mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Minimum Operating Temperature | -20°C | |
| Time Delay | <100ms | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Supply Voltage 380 → 415V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation Star Delta | ||
Time Range 0.3 → 30s | ||
Number of Contacts 2 | ||
Number of Timer Functions Single | ||
Contact Configuration DPDT | ||
Time Increment Seconds | ||
Maximum Current 8A | ||
Maximum Voltage 415V ac | ||
Switch Configuration DPCO | ||
Terminal Type Screw | ||
Width 90mm | ||
Power Supply External | ||
Minimum Voltage 380V ac | ||
Series Harmony Time | ||
Maximum Operating Temperature +60°C | ||
Minimum Current 10mA | ||
Depth 79.5mm | ||
Length 22.9mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Minimum Operating Temperature -20°C | ||
Time Delay <100ms | ||
- Pays d'origine :
- ID
Zelio Star Delta Timers- RE22 Series
Screw terminals connection
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Available option of supplying a load in parallel
Operating temperature of -20 → 60 °C
Self extinguishing housing material
Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
