Name: Idec Plug In Timer Relay, 200 → 240V ac, 14-Contact, 0.1 s → 1 s, 0.2 s → 10 s, 1.2 s →
Brand: Idec
SKU: 832-5534
Price: 46.81 EUR
Availability: Discontinued

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Marque	Idec
	Supply Voltage	200 → 240V ac
	Mounting Type	Plug In
	Mode of Operation	ON Delay
	Time Range	0.1 s → 1 s, 0.2 s → 10 s, 1.2 s → 1 min, 12 s → 10min
	Number of Contacts	14
	Number of Timer Functions	Single
	Contact Configuration	4NO/4NC
	Time Increment	Minutes, Seconds
	Maximum Current	3A
	Switch Configuration	4PDT
	Terminal Type	Plug In
	Width	27.5mm
	Power Supply	External
	Depth	58.6mm
	Maximum Operating Temperature	+50°C
	Length	21mm
	Minimum Operating Temperature	-10°C
	Time Delay	(Reset) 0.1 s, (Reset) 1s

	Select all
	Marque Idec
	Supply Voltage 200 → 240V ac
	Mounting Type Plug In
	Mode of Operation ON Delay
	Time Range 0.1 s → 1 s, 0.2 s → 10 s, 1.2 s → 1 min, 12 s → 10min
	Number of Contacts 14
	Number of Timer Functions Single
	Contact Configuration 4NO/4NC
	Time Increment Minutes, Seconds
	Maximum Current 3A
	Switch Configuration 4PDT
	Terminal Type Plug In
	Width 27.5mm
	Power Supply External
	Depth 58.6mm
	Maximum Operating Temperature +50°C
	Length 21mm
	Minimum Operating Temperature -10°C
	Time Delay (Reset) 0.1 s, (Reset) 1s

Brochure - IDEC

Non Compliant

COO (Country of Origin):: TW

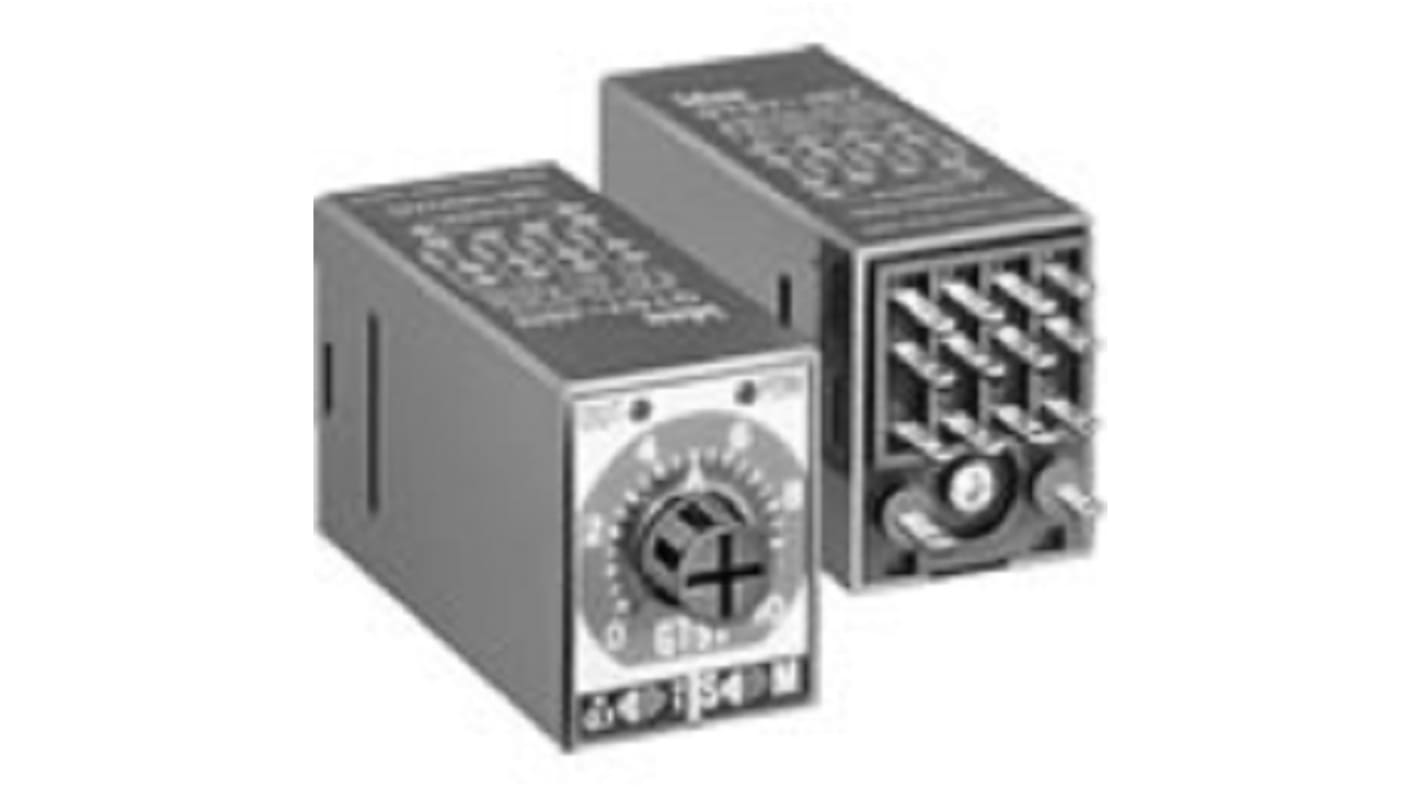

The IDEC GT5Y series, GT5Y-4SN1A200 is a timer blade, plug-in 4PDT contact miniature timer. It has 200-240V AC operating voltage, time range between 0.1s to 10 hours and output of 30V DC, 3A.

3A or DPDT
5A contacts
4 time ranges
Repeat error ±0.2% maximum
Control settings by hand or screwdriver
Power ON and timing out LED indicators
Uses the same sockets and hold-down clips as IDEC’s RY4S and RU series relays
ON Delay 4PDT 200-240VAC 1s/10s/1m/10m
