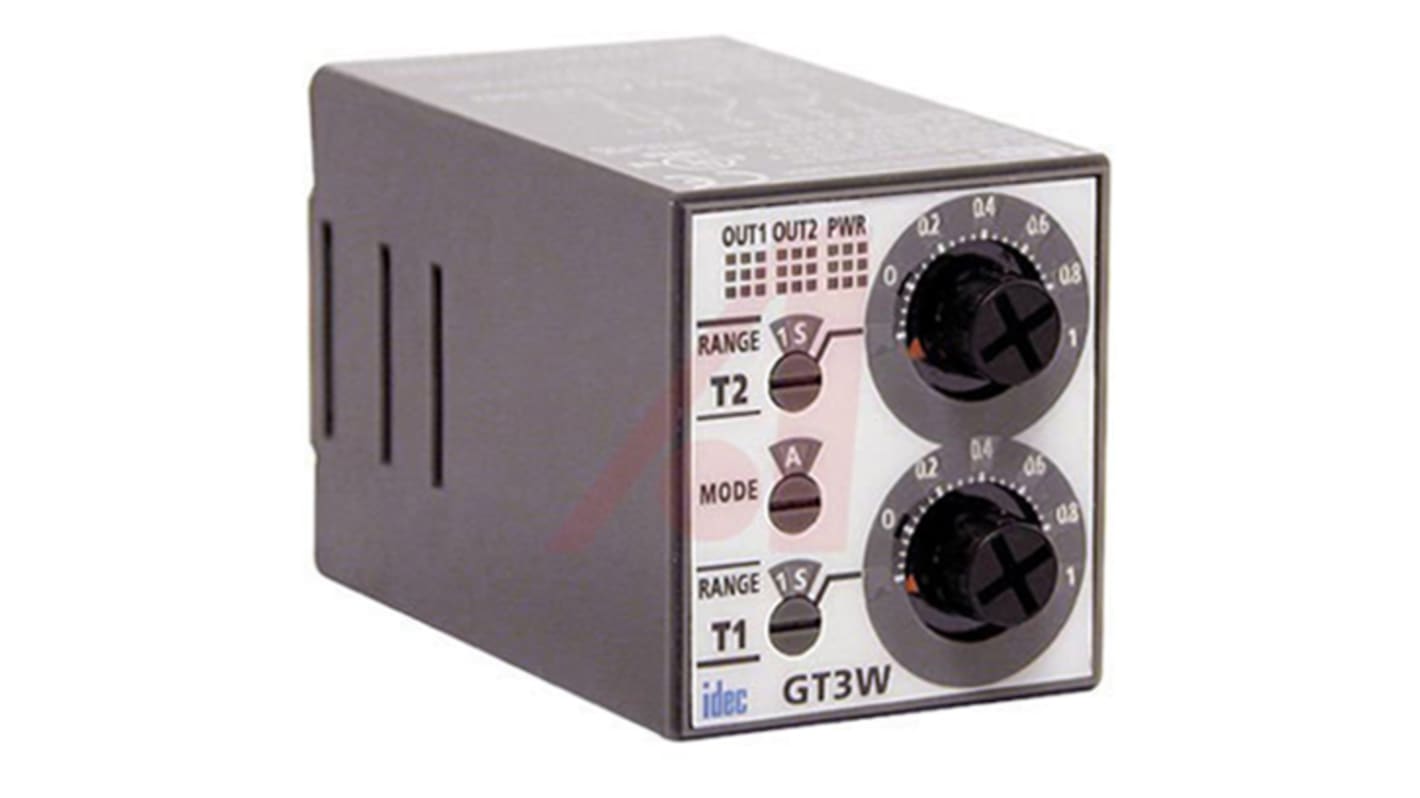

Idec Plug In Timer Relay, 100 → 240V ac, 8-Contact, 0.1 s → 6h, DPDT

Voir l’ensemble des Timer Relays
Indisponible
RS n'aura plus ce produit en stock.
N° de stock RS:
832-5489
Référence fabricant:
GT3W-A11AF20N
Fabricant:
Idec
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Idec

Supply Voltage

100 → 240V ac

Mounting Type

Plug In

Mode of Operation

Interval ON, Interval ON Delay, ON delay with Course and Fine, Recycler and Instaneous, Recycler Outputs (OFF Start), Recycler Outputs (ON Start), Sequential Interval, Sequential Start

Time Range

0.1 s → 6h

Number of Contacts

8

Number of Timer Functions

Multi Function

Contact Configuration

DPDT

Time Increment

Hours, Minutes, Seconds

Maximum Current

3A

Switch Configuration

SPDT

Terminal Type

Plug In

Width

40mm

Power Supply

External

Length

36mm

Depth

70mm

Maximum Operating Temperature

+50°C

Time Delay

(Reset) 60ms

Minimum Operating Temperature

-10°C

Pays d'origine :
TW
The IDEC GT3W series, GT3W-A11AF20N is a 8 pin, plug-in, delayed DPDT (delayed SPDT + delayed SPDT) contact, multi-function timer having 100-240V AC operating voltage. It has time range between 0.1s - 6 hours and output of 240V AC, 3A, 120V AC/ 30V, 5A.

Large variety of timing functions
Power and output status indicating LEDs
Mountable in sockets or flush panels
Twin-Timer 100-240VAC T1 & T2: 01.s-6h
