Omron H3YN Series DIN Track Solid State Timer, 4-Contact, 125 V dc 200V ac, 230 V ac, 0.1 min to 10 h,

N° de stock RS:: 106-6265
Référence fabricant:: H3YN-41-B AC200-230
Fabricant:: Omron

Omron H3YN Series DIN Track Solid State Timer, 4-Contact, 125 V dc 200V ac, 230 V ac, 0.1 min to 10 h,

Sous-total (1 unité)*

81,96 €

(TVA exclue)

99,17 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

Temporairement en rupture de stock

Expédition à partir du 19 octobre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	81,96 €

*Prix donné à titre indicatif

N° de stock RS:: 106-6265
Référence fabricant:: H3YN-41-B AC200-230
Fabricant:: Omron

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Solid State Timer
	Mount Type	DIN Track
	Function	Timer
	Time Range	0.1 min to 10 h
	Number of Contacts	4
	Switching Voltage	250V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	4 NO/4 NC
	IP Rating	IP40
	Supply DC Voltage	125 V dc
	Minimum Operating Temperature	-10°C
	Contact Current	3A
	Supply AC Voltage	200, 230V ac
	Mode	Multifunction
	Maximum Operating Temperature	55°C
	Terminal Type	Push-in
	Standards/Approvals	CE, IEC 60664-1, CSA C22.2 No. 14, Lloyds, CCC, EN 61812-1, UL 508
	Width	56.6mm
	Length	21.5mm
	Height	28mm
	Series	H3YN

	Sélectionner tout
	Marque Omron
	Product Type Solid State Timer
	Mount Type DIN Track
	Function Timer
	Time Range 0.1 min to 10 h
	Number of Contacts 4
	Switching Voltage 250V ac
	Number of Timer Functions Multifunction
	Contact Configuration 4 NO/4 NC
	IP Rating IP40
	Supply DC Voltage 125 V dc
	Minimum Operating Temperature -10°C
	Contact Current 3A
	Supply AC Voltage 200, 230V ac
	Mode Multifunction
	Maximum Operating Temperature 55°C
	Terminal Type Push-in
	Standards/Approvals CE, IEC 60664-1, CSA C22.2 No. 14, Lloyds, CCC, EN 61812-1, UL 508
	Width 56.6mm
	Length 21.5mm
	Height 28mm
	Series H3YN

Se connecter pour voir les modèles CAO

Pays d'origine :: CN

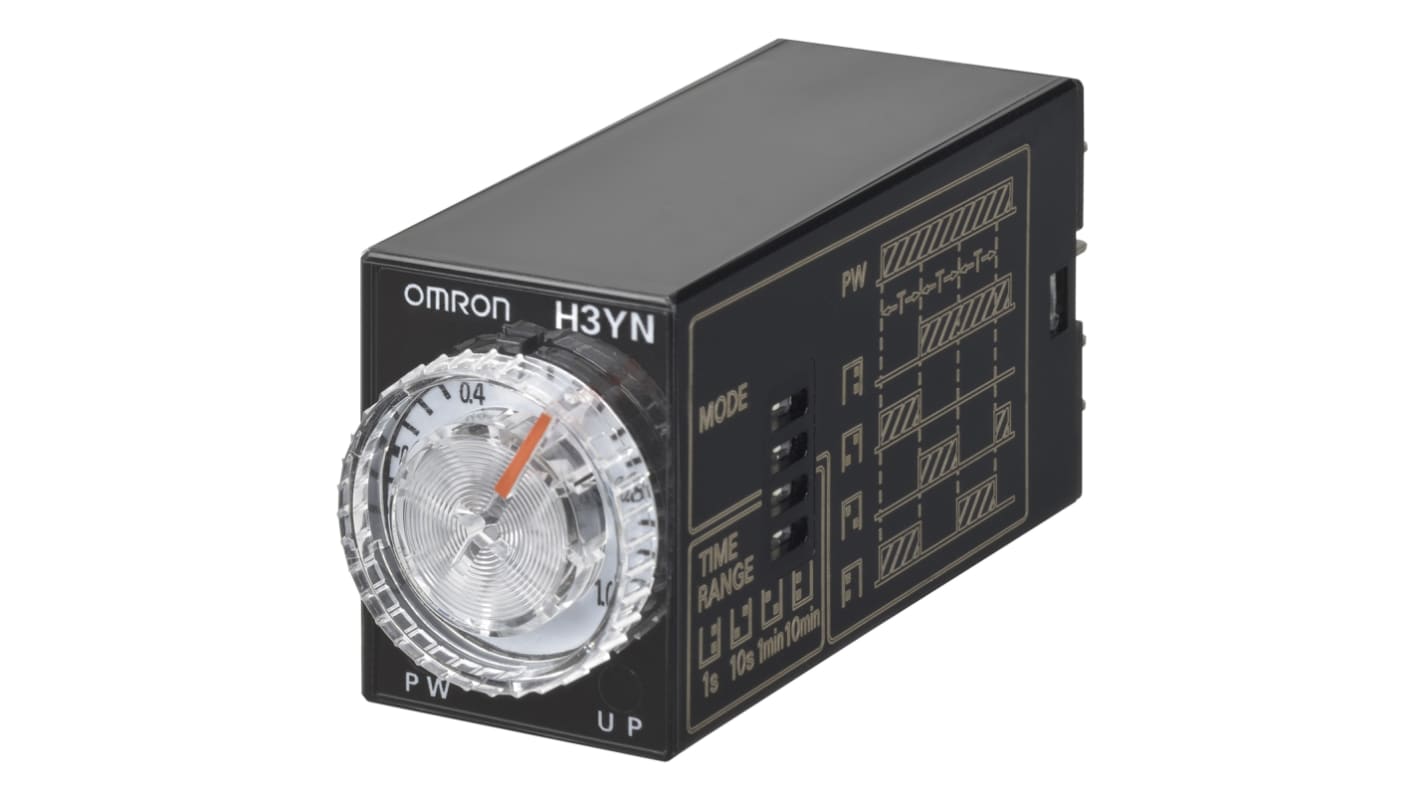

Omron H3YN Series Solid State Timer, 0.1min-10h Time Range, 200V-230V Supply Voltage - H3YN-41-B AC200-230

This solid-state timer is a Compact electronic timing device designed for control panels and industrial automation. It provides selectable timing functions over a broad range and accepts AC and DC supply voltages, enabling integration into varied electrical systems where precise delay or sequencing is required.

Features and Benefits:

• Multifunction timing supports multiple control behaviours for flexibility
• Time setting range from 0.1 min to 10 h for fine adjustment
• Four changeover contacts delivering 3 A each for multiple outputs
• Push-in terminals simplify connection and reduce wiring time
• DIN-rail mounting for Rapid installation in control cabinets
• IP40 enclosure rating suitable for protected indoor environments

Applications

• Suitable for sequence control in conveyor and material-handling systems
• Ideal for delay and repeat timing in machine control panels
• Used with industrial relays to manage staged power switching
• Can be used for timed lighting and signalling in production areas
• Used for process timing where a Compact footprint is required

What supply voltages can it accept for different installations?

It operates from AC supplies at 200V or 230V and can also accept a DC supply at 125V for installations requiring DC timing.

How many outputs are available and what is their switching capability?

It provides four contacts with a configuration of four normally open and four normally closed paths, each rated for a 3 A switching current at up to 250V AC.

What mounting and connection methods are available for panel fitment?

The unit is designed for DIN-rail installation and uses push-in style terminals to allow secure, tool-free conductor insertion.

What environmental temperature range and protection does it offer for indoor use?

It is specified for operation between -10 °C and 55 °C and has an IP40 rating, making it suitable for indoor control panels with Basic dust protection.
