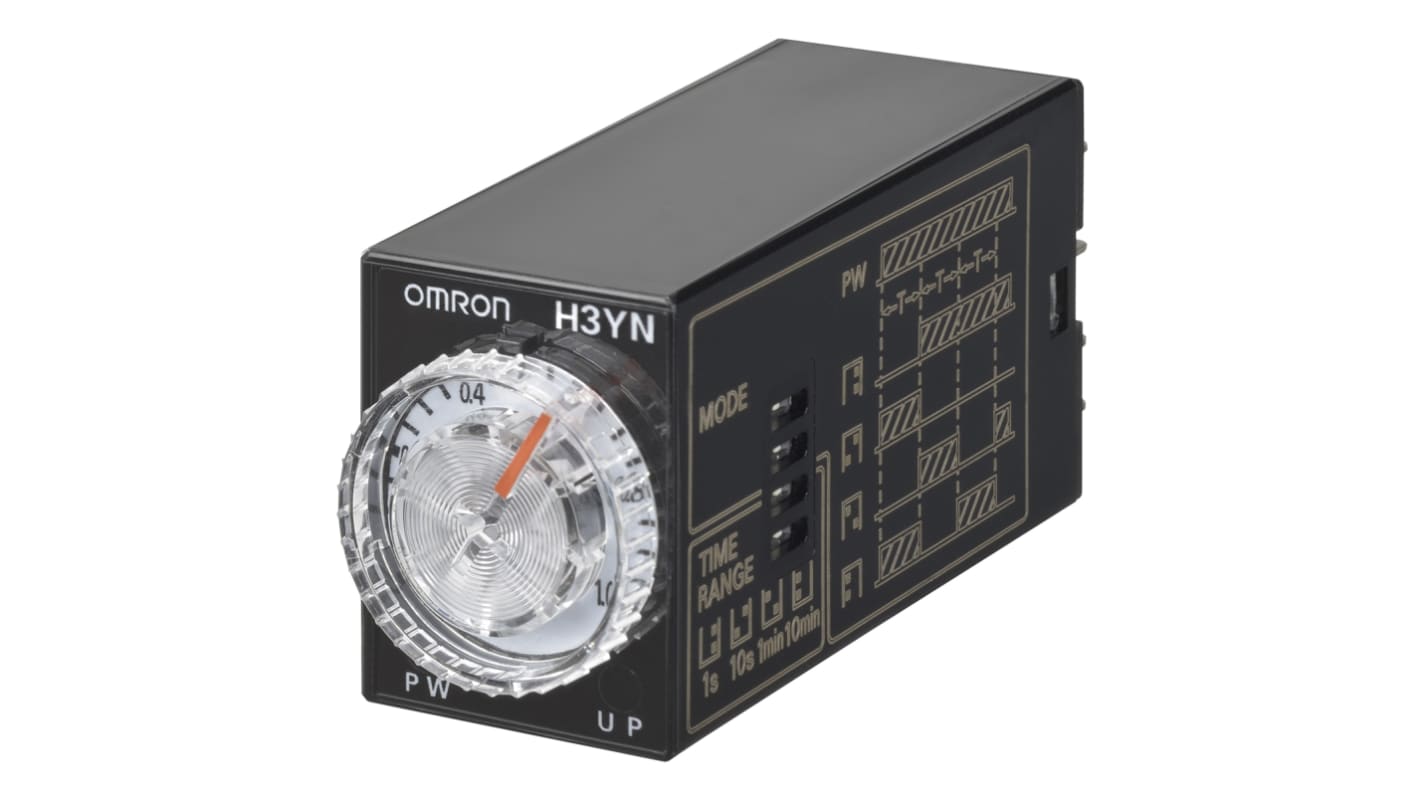

Omron H3YN Series Panel Timer Relay, 4-Contact, 125 V 200V ac, 230 V ac, 0.1 s to 10 min, Multifunction-Function, 4 NO/4
- N° de stock RS:
- 106-6260
- Référence fabricant:
- H3YN-4-B AC200-230
- Fabricant:
- Omron
Sous-total (1 unité)*
81,96 €
(TVA exclue)
99,17 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 1 unité(s) expédiée(s) à partir du 20 juillet 2026
- Plus 4 unité(s) expédiée(s) à partir du 08 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 81,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 106-6260
- Référence fabricant:
- H3YN-4-B AC200-230
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Product Type | Timer Relay | |
| Function | Multifunction | |
| Mount Type | Panel | |
| Time Range | 0.1 s to 10 min | |
| Number of Contacts | 4 | |
| Switching Voltage | 250V | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | 4 NO/4 NC | |
| IP Rating | IP40 | |
| Supply DC Voltage | 125 V | |
| Contact Current | 3A | |
| Supply AC Voltage | 200, 230V ac | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Push-in | |
| Mode | Multifunction | |
| Height | 28mm | |
| Length | 21.5mm | |
| Standards/Approvals | UL 508, CCC, IEC 60664-1, CE, EN 61812-1, CSA C22.2 No. 14, Lloyds | |
| Width | 56.6mm | |
| Series | H3YN | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Product Type Timer Relay | ||
Function Multifunction | ||
Mount Type Panel | ||
Time Range 0.1 s to 10 min | ||
Number of Contacts 4 | ||
Switching Voltage 250V | ||
Number of Timer Functions Multifunction | ||
Contact Configuration 4 NO/4 NC | ||
IP Rating IP40 | ||
Supply DC Voltage 125 V | ||
Contact Current 3A | ||
Supply AC Voltage 200, 230V ac | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Push-in | ||
Mode Multifunction | ||
Height 28mm | ||
Length 21.5mm | ||
Standards/Approvals UL 508, CCC, IEC 60664-1, CE, EN 61812-1, CSA C22.2 No. 14, Lloyds | ||
Width 56.6mm | ||
Series H3YN | ||
- Pays d'origine :
- CN
Omron H3YN Series Timer Relay, 200/230V AC Supply Voltage, 0.1 s to 10 min Time Range - H3YN-4-B AC200-230
This timer relay provides precise time control for industrial automation and electrical systems, delivering selectable delay functions and reliable switching in panel‑mounted installations. It is designed to work with alternating supply voltages and can also accept a DC supply for versatile deployment, offering multifunction timing across a broad interval suitable for sequencing, delayed starts and timed shutdowns in control panels.
Features and Benefits:
• 4NO4NC contact arrangement provides flexible circuit configuration
• 3A contact rating supports moderate load switching needs
• Multifunction timing covers multiple control modes for versatility
• Time range 0.1s to 10 min enables short to medium delays
• Push‑in terminals speed up wiring and reduce installation time
• IP40 rating protects internal mechanisms in enclosed panels
• 3A contact rating supports moderate load switching needs
• Multifunction timing covers multiple control modes for versatility
• Time range 0.1s to 10 min enables short to medium delays
• Push‑in terminals speed up wiring and reduce installation time
• IP40 rating protects internal mechanisms in enclosed panels
Applications
• Suitable for sequencing motors and solenoids in control cabinets
• Ideal for delayed start of conveyor sections in manufacturing lines
• Used for timed energisation of indicator circuits and alarms
• Can be used for automated testing rigs requiring repeatable delays
• Used with relay logic for staged power distribution in panels
• Ideal for delayed start of conveyor sections in manufacturing lines
• Used for timed energisation of indicator circuits and alarms
• Can be used for automated testing rigs requiring repeatable delays
• Used with relay logic for staged power distribution in panels
What supply voltages can it accept for control circuits?
It operates from 200/230V AC and can also accept 125V DC for control supply.
How does the relay handle thermal conditions during operation?
It is rated to operate reliably up to a maximum ambient of 55 °C and down to −10 °C.
What is the maximum switching voltage and contact endurance?
Contacts are specified for switching up to 250V and are rated for 3A continuous load per contact.
How is the unit mounted and secured in control equipment?
It is intended for panel mounting and connects via push‑in terminals for a secure electrical connection.
Which approvals and standards does the product conform to?
It meets multiple industry standards including UL, IEC, CE and additional national approvals.
