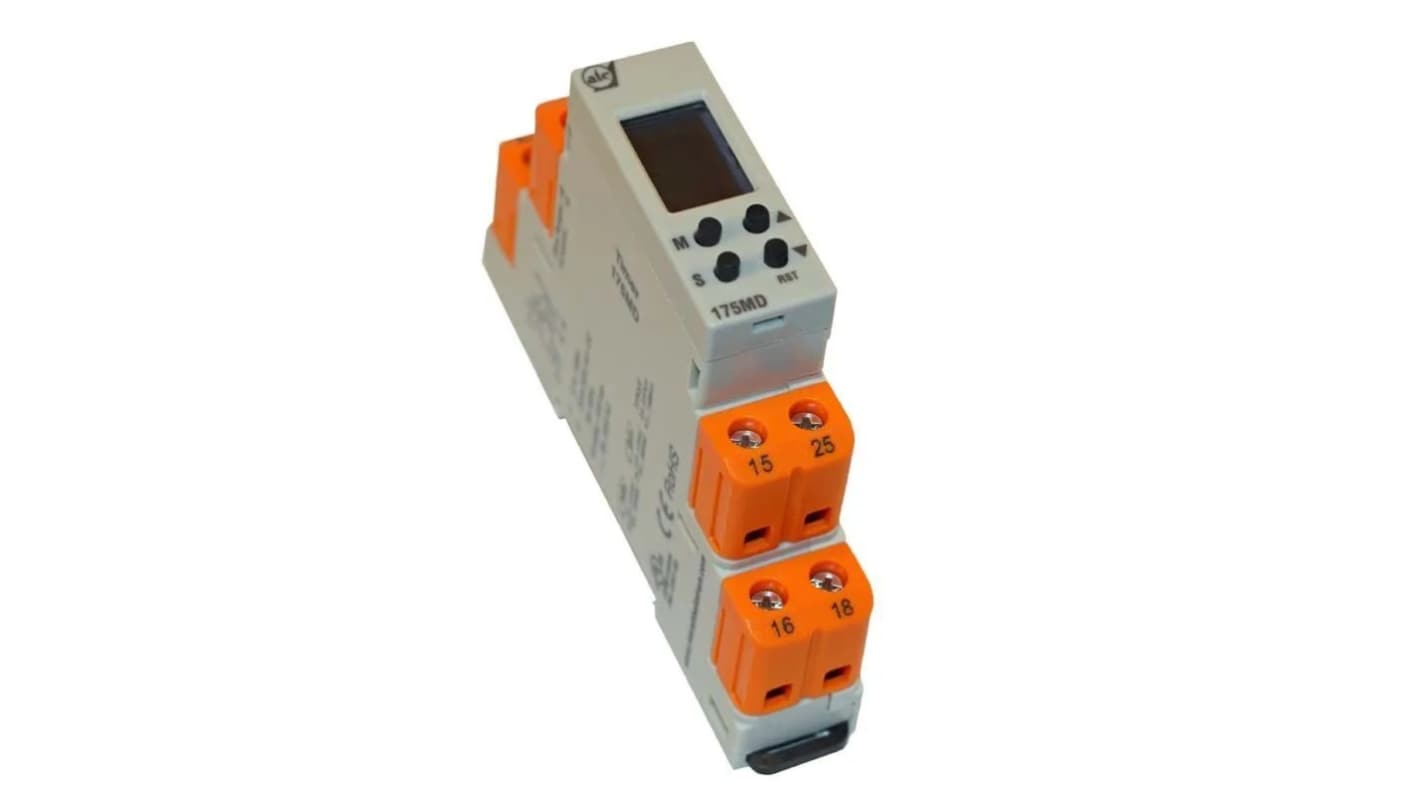

ATC 175MD Series DIN Rail Multi-Timer, 1-Contact, 20 to 240 V ac/dc 20V ac, 240 V ac, 0 s to 99.0 h,
- N° de stock RS:
- 286-786
- Référence fabricant:
- 175MD
- Fabricant:
- ATC
Sous-total (1 unité)*
71,40 €
(TVA exclue)
86,39 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 + | 71,40 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 286-786
- Référence fabricant:
- 175MD
- Fabricant:
- ATC
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ATC | |
| Product Type | Multi-Timer | |
| Mount Type | DIN Rail | |
| Time Range | 0 s to 99.0 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPDT | |
| IP Rating | IP20, IP40 | |
| Supply AC Voltage | 20, 240V ac | |
| Minimum Operating Temperature | 0°C | |
| Supply DC Voltage | 20 to 240 V ac/dc | |
| Contact Current | 8A | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS | |
| Series | 175MD | |
| Sélectionner tout | ||
|---|---|---|
Marque ATC | ||
Product Type Multi-Timer | ||
Mount Type DIN Rail | ||
Time Range 0 s to 99.0 h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPDT | ||
IP Rating IP20, IP40 | ||
Supply AC Voltage 20, 240V ac | ||
Minimum Operating Temperature 0°C | ||
Supply DC Voltage 20 to 240 V ac/dc | ||
Contact Current 8A | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS | ||
Series 175MD | ||
- Pays d'origine :
- IN
The ATC Timer offers an accuracy of ±0.1% of set time or ±50mSec and repeatability of ±0.1%. It features a SPDT contact with a rating of 8A at the rate 250V AC. Multiple modes are available including on delay, interval, cyclic, pulse output, and more. Time ranges from 0 to 99.9 sec/min/hr. up to 9 hr. and 59 min.
Power 4 VA max consumption
Reset time is less than 100 msec
