ATC 409B Series Surface Timer Relay, 2-Contact, 24 V dc 24V ac, 240 V ac, 1 s to 50 h, 2-Function, DPDT Switch
- N° de stock RS:
- 286-808
- Référence fabricant:
- 409B500F2X
- Fabricant:
- ATC
Sous-total (1 unité)*
418,09 €
(TVA exclue)
505,89 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 418,09 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 286-808
- Référence fabricant:
- 409B500F2X
- Fabricant:
- ATC
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ATC | |
| Product Type | Timer Relay | |
| Mount Type | Surface | |
| Time Range | 1 s to 50 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 2 | |
| Contact Configuration | DPDT | |
| Minimum Operating Temperature | -18°C | |
| Supply AC Voltage | 24, 240V ac | |
| Supply DC Voltage | 24 V dc | |
| Contact Current | 10A | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | Crlus, RoHS, CE | |
| Series | 409B | |
| Sélectionner tout | ||
|---|---|---|
Marque ATC | ||
Product Type Timer Relay | ||
Mount Type Surface | ||
Time Range 1 s to 50 h | ||
Number of Contacts 2 | ||
Number of Timer Functions 2 | ||
Contact Configuration DPDT | ||
Minimum Operating Temperature -18°C | ||
Supply AC Voltage 24, 240V ac | ||
Supply DC Voltage 24 V dc | ||
Contact Current 10A | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals Crlus, RoHS, CE | ||
Series 409B | ||

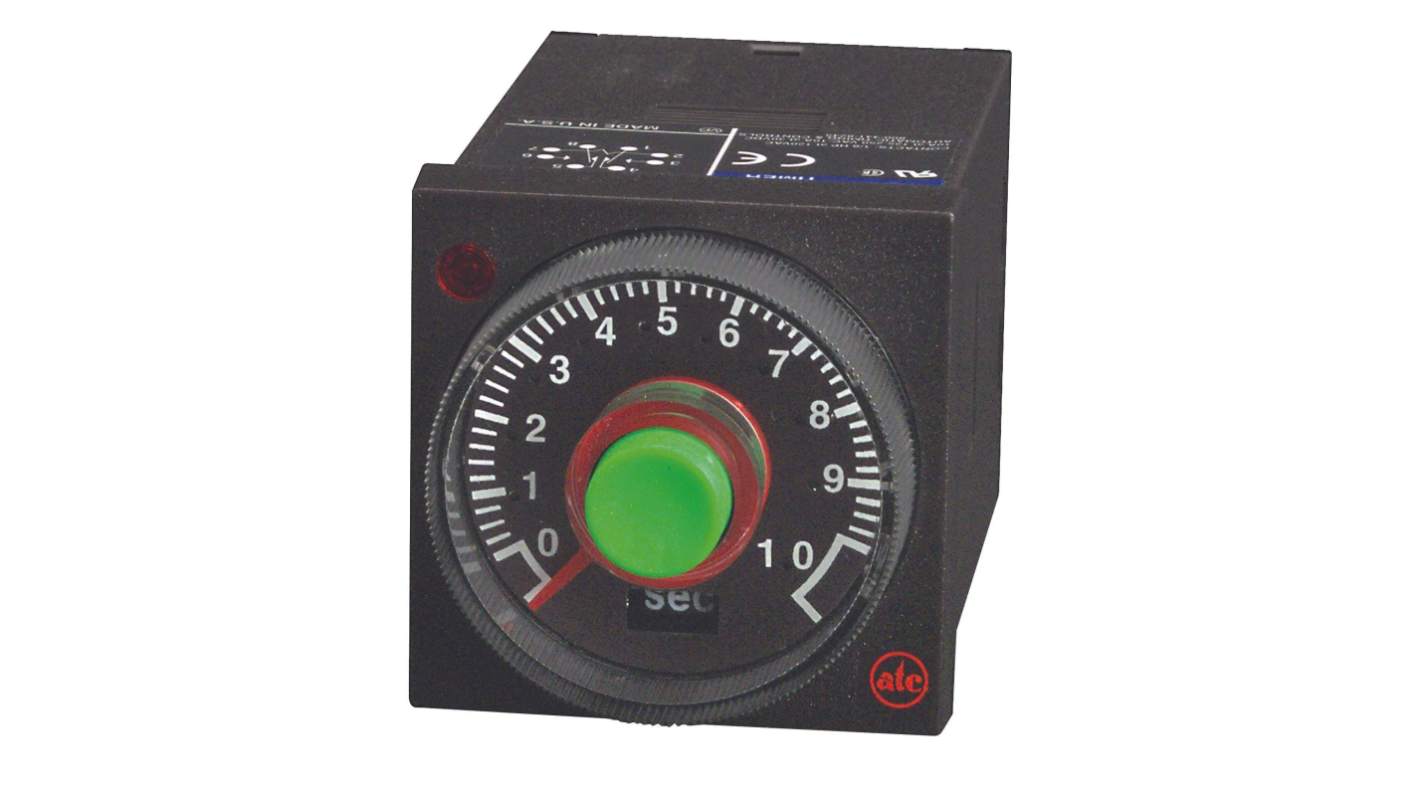

The ATC 1/16 DIN Push-Button Timer has a Push Button built into its front dial. When pressed, the timer starts and provides an interval time delay. The 409 has a set of DPDT output contacts. When the Push Button is pressed with power applied, the contacts immediately transfer. After the timer has timed out, the contacts release. Unit timing will reset with power loss. It provides six Timing Ranges in a single unit 1 and 10 SEC, MIN, and HRS and 5 and 50 SEC, MIN, and HRS.
Large and easy to read dial shows decimal points
Push Button Integral to front dial
