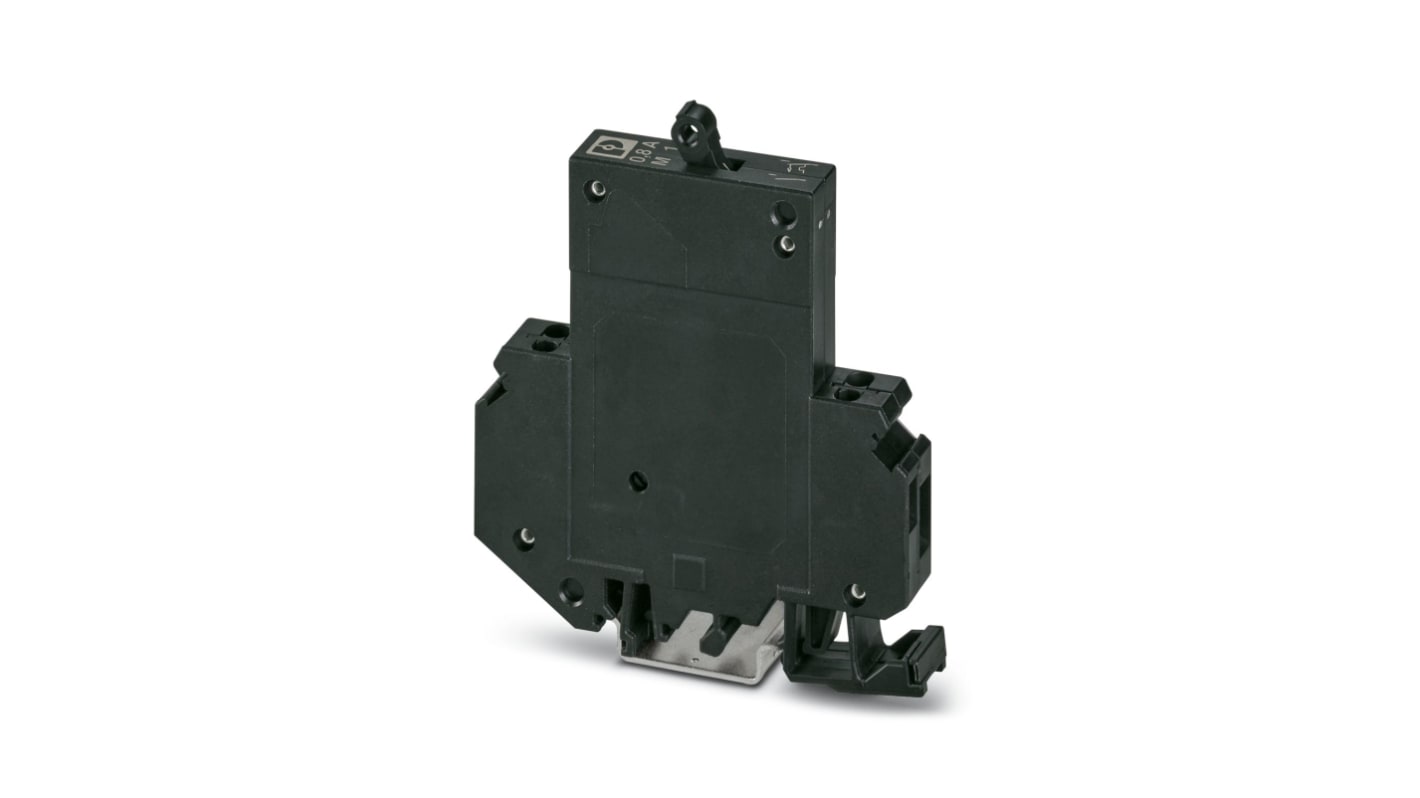

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker -, 800mA Current Rating 1-Pole, DIN Rail
- N° de stock RS:
- 135-896
- Référence fabricant:
- 0914426
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-896
- Référence fabricant:
- 0914426
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Current Rating | 800mA | |
| Series | TMC | |
| Number of Poles | 1 | |
| Range | TMC | |
| Width | 12.5mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | EN 60934, RoHS, VDE Zeichengenehmigung, EAC, CSA, UL 1077, UL | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Rated AC Voltage | 250V ac | |
| Break Time | Instantaneous | |
| Breaking Capacity | 2kA | |
| Rated DC Voltage | 65V dc | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Current Rating 800mA | ||
Series TMC | ||
Number of Poles 1 | ||
Range TMC | ||
Width 12.5mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals EN 60934, RoHS, VDE Zeichengenehmigung, EAC, CSA, UL 1077, UL | ||
Depth 96mm | ||
Height 82.5mm | ||
Rated AC Voltage 250V ac | ||
Break Time Instantaneous | ||
Breaking Capacity 2kA | ||
Rated DC Voltage 65V dc | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker designed for reliable circuit protection. With its compact design and universal foot, it can be easily mounted on NS 32 or NS 35. This circuit breaker features 1 N/O contact and a normal blow fuse type, making it suitable for various applications. It has a rated voltage of 250 V AC and 65 V DC, and a rated current of 0.8 A. The 100 0.8A has a high short-circuit switching capacity of 400 A and is insulated for overvoltage category II. It is made from durable and flame-resistant materials, ensuring safe and reliable performance.
Versatile with 250 V AC and 65 V DC
High short-circuit switching capacity of 400 A
Automatic device fuse and thermal-magnetic tripping
Excellent insulation with overvoltage category II
Reliable performance with compact design
