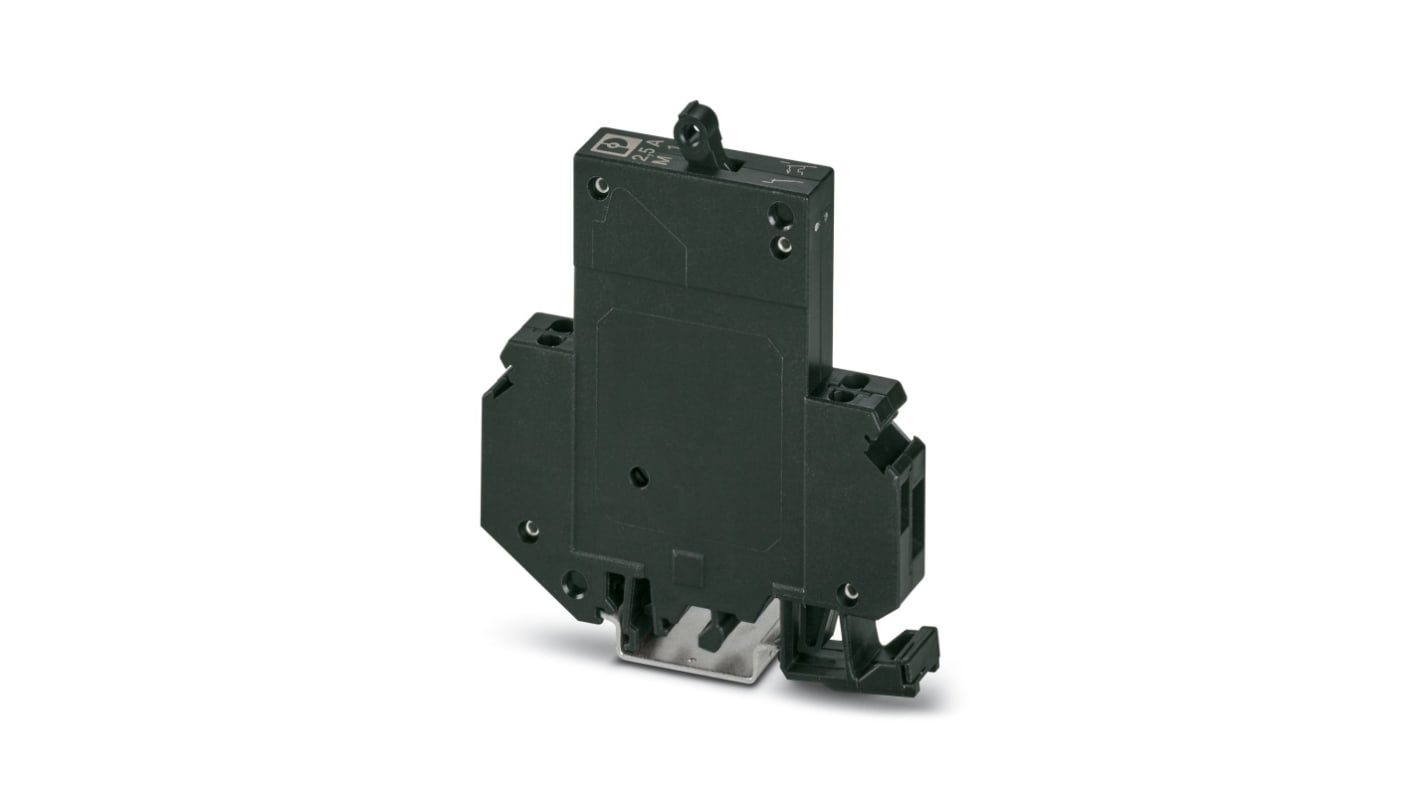

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 2.5A Current Rating, 2000 A, 250V ac, 65 V
- N° de stock RS:
- 135-488
- Référence fabricant:
- 0914646
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-488
- Référence fabricant:
- 0914646
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Current Rating | 2.5A | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Range | TMC | |
| Series | TMC | |
| Number of Poles | 1 | |
| Width | 12.5mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | UL 1077, VDE Zeichengenehmigung, UL, CSA, EN 60934, EAC, RoHS | |
| Depth | 96mm | |
| Rated AC Voltage | 250V ac | |
| Height | 82.5mm | |
| Rated DC Voltage | 65V dc | |
| Breaking Capacity | 2000A | |
| Break Time | Instantaneous | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Current Rating 2.5A | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Range TMC | ||
Series TMC | ||
Number of Poles 1 | ||
Width 12.5mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals UL 1077, VDE Zeichengenehmigung, UL, CSA, EN 60934, EAC, RoHS | ||
Depth 96mm | ||
Rated AC Voltage 250V ac | ||
Height 82.5mm | ||
Rated DC Voltage 65V dc | ||
Breaking Capacity 2000A | ||
Break Time Instantaneous | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker designed for various applications. This high-quality circuit breaker ensures reliable and safe operation, providing protection against overloads and short circuits. With its compact design and universal foot for mounting on NS 32 or NS 35, it offers easy installation and flexibility. The device is suitable for both AC and DC applications, with a rated current of 2.5A and a rated voltage of 250V AC and 65V DC. Its robust construction and excellent electrical properties make it an ideal choice for industrial and commercial environments.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
