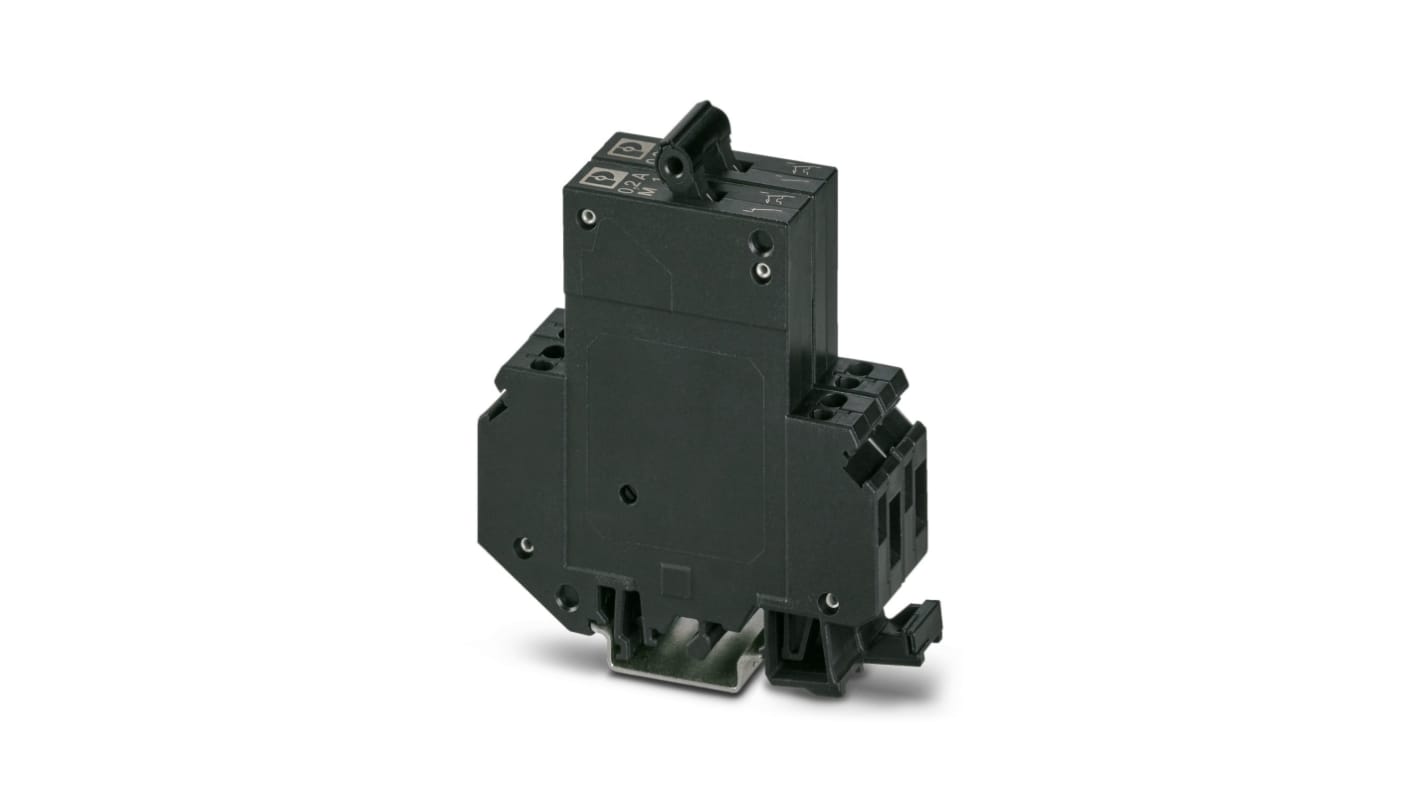

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 2-Pole, DIN Rail, 200mA Current Rating, 2000 A, 250V ac, 65 V
- N° de stock RS:
- 135-511
- Référence fabricant:
- 0914918
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-511
- Référence fabricant:
- 0914918
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Current Rating | 200mA | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Number of Poles | 2 | |
| Series | TMC | |
| Range | TMC | |
| Width | 25mm | |
| Mount Type | DIN Rail | |
| Mount Hole Size | 35 mm | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | EAC, EN 60934, CSA, VDE Zeichengenehmigung, UL 1077, UL, RoHS | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Rated AC Voltage | 250V ac | |
| Break Time | Instantaneous | |
| Breaking Capacity | 2000A | |
| Rated DC Voltage | 65V dc | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Current Rating 200mA | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Number of Poles 2 | ||
Series TMC | ||
Range TMC | ||
Width 25mm | ||
Mount Type DIN Rail | ||
Mount Hole Size 35 mm | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals EAC, EN 60934, CSA, VDE Zeichengenehmigung, UL 1077, UL, RoHS | ||
Depth 96mm | ||
Height 82.5mm | ||
Rated AC Voltage 250V ac | ||
Break Time Instantaneous | ||
Breaking Capacity 2000A | ||
Rated DC Voltage 65V dc | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker is designed for efficient protection of electrical circuits. With a rated current of 0.2A, it offers reliable performance in both AC and DC applications. The compact DIN rail module features two positions and four connections, allowing for easy installation. Its thermomagnetic tripping method ensures effective circuit interruption in case of overloads or short circuits. With a rated voltage of 250V AC and 65V DC, it provides reliable protection against voltage fluctuations. The circuit breaker has a high short-circuit switching capacity of 400A, making it suitable for demanding industrial environments. Its sturdy construction and adherence to international standards ensure safe operation and long-lasting performance.
Universal foot for mounting
Compact design for easy installation and integration
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
