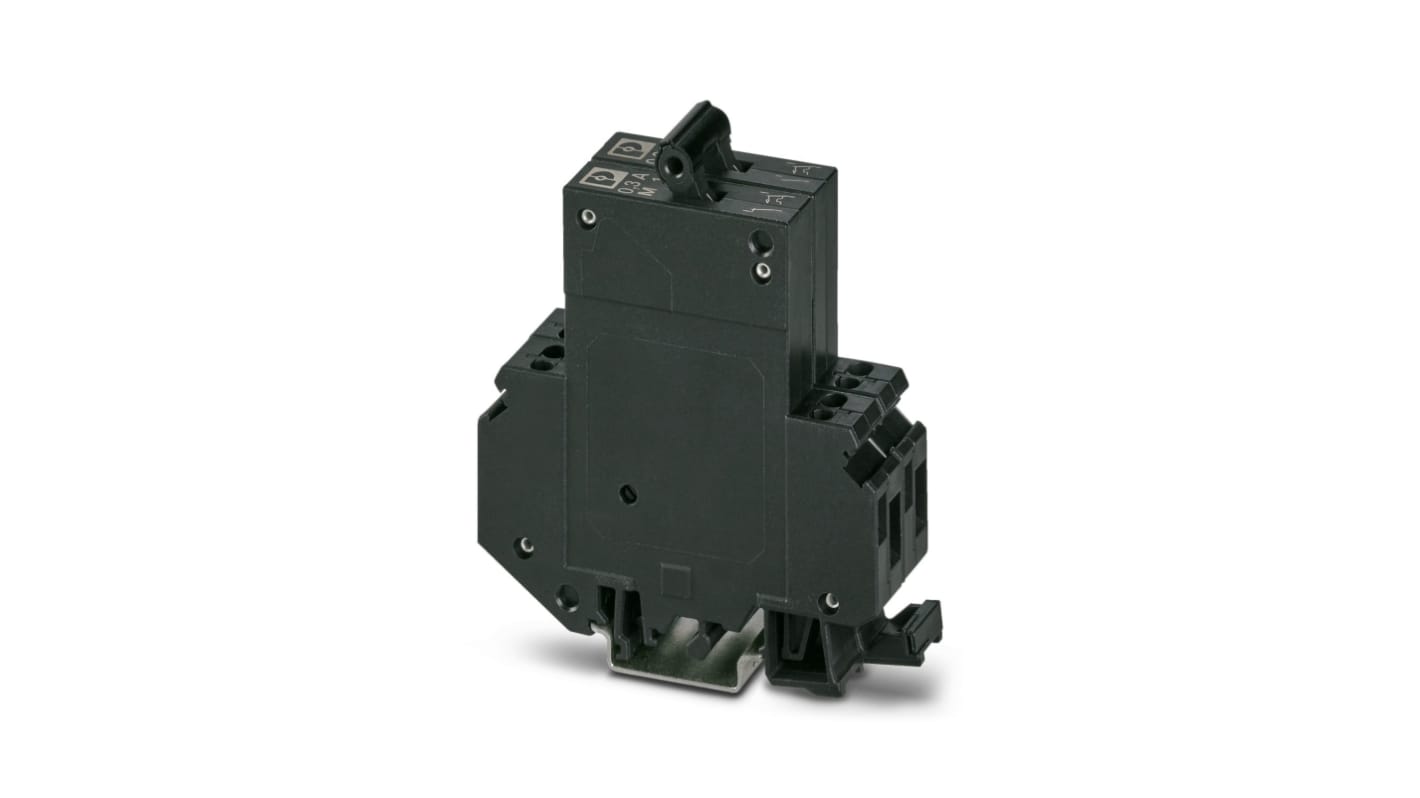

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 2-Pole, DIN Rail, 300mA Current Rating, 2000 A, 250V ac, 65 V
- N° de stock RS:
- 135-512
- Référence fabricant:
- 0914921
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-512
- Référence fabricant:
- 0914921
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Current Rating | 300mA | |
| Number of Poles | 2 | |
| Range | TMC | |
| Series | TMC | |
| Width | 25mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Rated AC Voltage | 250V ac | |
| Standards/Approvals | VDE Zeichengenehmigung, RoHS, EAC, EN 60934, UL, CSA, UL 1077 | |
| Height | 82.5mm | |
| Depth | 96mm | |
| Rated DC Voltage | 65V dc | |
| Breaking Capacity | 2000A | |
| Break Time | Instantaneous | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Current Rating 300mA | ||
Number of Poles 2 | ||
Range TMC | ||
Series TMC | ||
Width 25mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Rated AC Voltage 250V ac | ||
Standards/Approvals VDE Zeichengenehmigung, RoHS, EAC, EN 60934, UL, CSA, UL 1077 | ||
Height 82.5mm | ||
Depth 96mm | ||
Rated DC Voltage 65V dc | ||
Breaking Capacity 2000A | ||
Break Time Instantaneous | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker is a reliable and efficient solution for circuit protection. With a rated current of 0.3A and a rated voltage of 250V AC, it is suitable for a variety of applications. The circuit breaker features a thermal-magnetic tripping method and has a rated short-circuit switching capacity of 400A. With its compact and durable design, it provides reliable protection against overloads and short circuits. Whether you need to protect industrial equipment or electrical installations, this circuit breaker is the perfect choice.
Universal foot for mounting
Compact design for easy installation and integration
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
