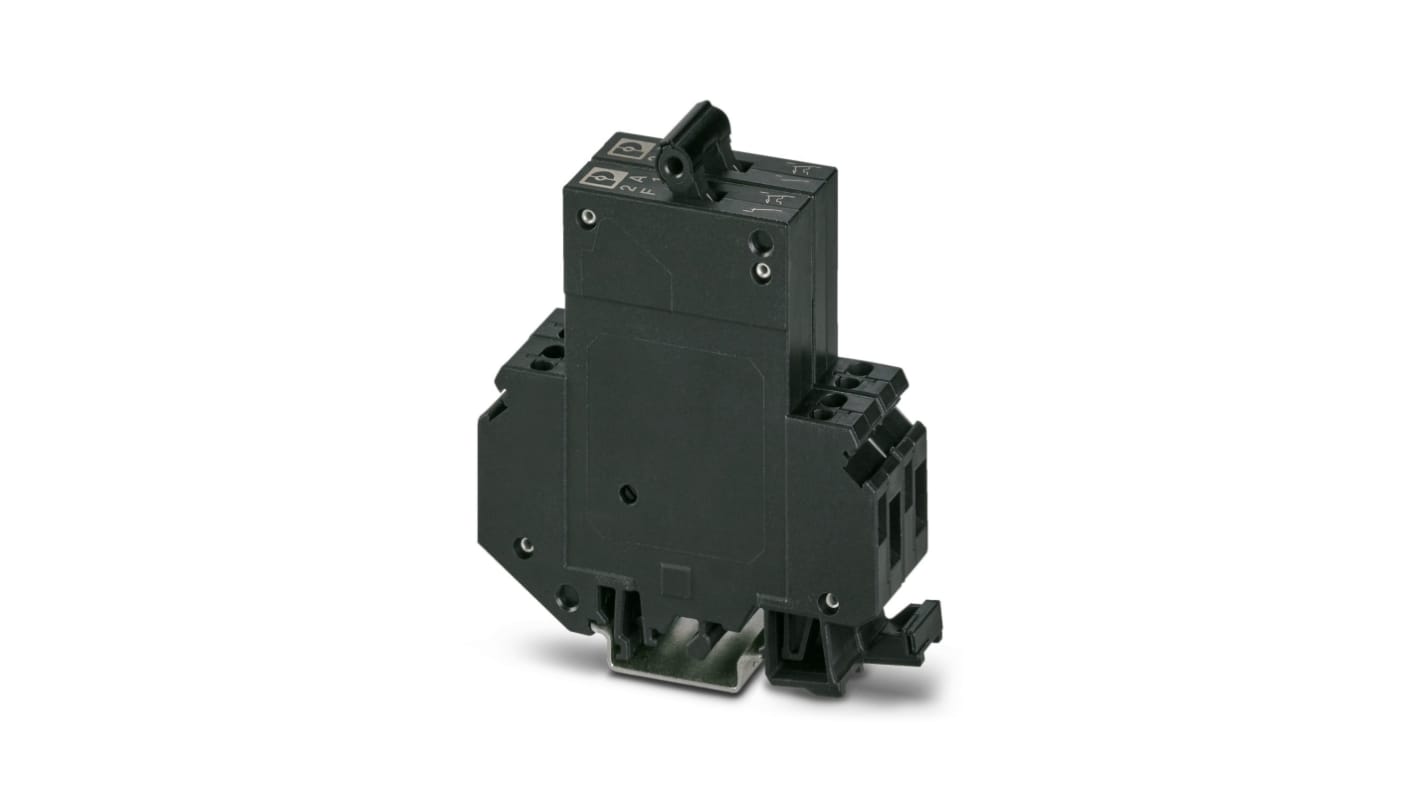

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 2-Pole, DIN Rail, 2A Current Rating, 2000 A, 65V ac, 65 V dc
- N° de stock RS:
- 135-502
- Référence fabricant:
- 0914811
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-502
- Référence fabricant:
- 0914811
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Current Rating | 2A | |
| Series | TMC | |
| Number of Poles | 2 | |
| Range | TMC | |
| Width | 25mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Rated AC Voltage | 65V ac | |
| Standards/Approvals | CSA, EAC, EN 60934, RoHS, UL 1077, UL, VDE Zeichengenehmigung | |
| Breaking Capacity | 2000A | |
| Rated DC Voltage | 65V dc | |
| Break Time | Instantaneous | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Current Rating 2A | ||
Series TMC | ||
Number of Poles 2 | ||
Range TMC | ||
Width 25mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Depth 96mm | ||
Height 82.5mm | ||
Rated AC Voltage 65V ac | ||
Standards/Approvals CSA, EAC, EN 60934, RoHS, UL 1077, UL, VDE Zeichengenehmigung | ||
Breaking Capacity 2000A | ||
Rated DC Voltage 65V dc | ||
Break Time Instantaneous | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker is designed for industrial applications, this circuit breaker ensures reliable and efficient protection for electrical circuits. With its fast blow feature, it quickly interrupts electrical currents to prevent overloads and short circuits. It features 1 normally open (N/O) contact and 1 normally closed (N/C) contact, providing versatility in circuit configurations. The device is suitable for mounting on NS 32 or NS 35 rails. With a rated voltage of 65V DC and a rated current of 2A, it offers excellent performance and durability. The compact design and universal foot make it easy to install and integrate into various systems.
Universal foot for mounting
Compact design for easy installation and integration
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
