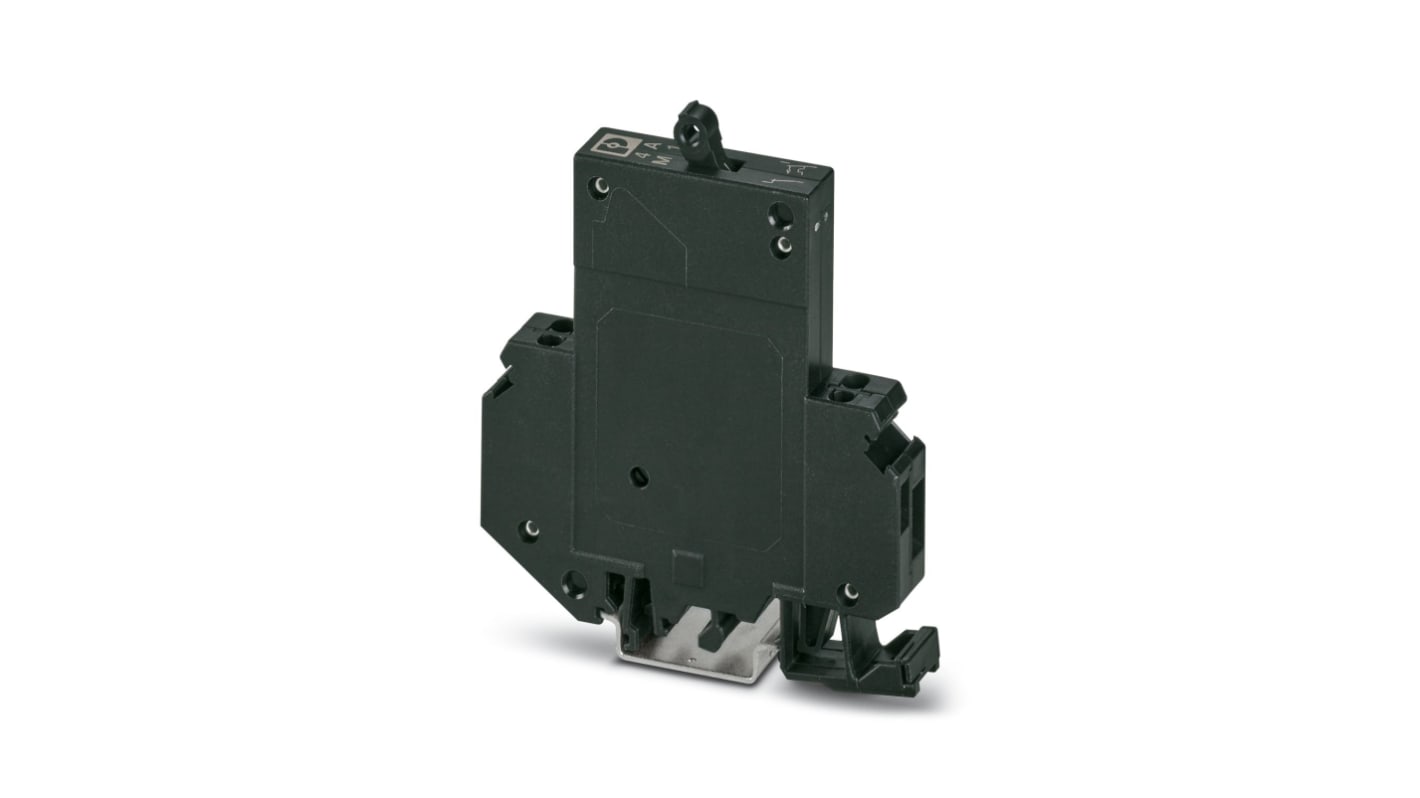

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 4 A Current Rating, 2000 A, 250 V ac, 65 V
- N° de stock RS:
- 135-491
- Référence fabricant:
- 0914662
- Fabricant:
- Phoenix Contact
Sous-total (1 paquet de 6 unités)*
338,82 €
(TVA exclue)
409,97 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Paquet(s) | le paquet | Prix par unité* |
|---|---|---|
| 1 + | 338,82 € | 56,47 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 135-491
- Référence fabricant:
- 0914662
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Current Rating | 4 A | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Series | TMC | |
| Range | TMC | |
| Number of Poles | 1 | |
| Width | 12.5 mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Mount Hole Size | 35 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Height | 82.5mm | |
| Standards/Approvals | EN 60934, UL 1077, CSA, EAC, RoHS, UL, VDE Zeichengenehmigung | |
| Rated AC Voltage | 250 V ac | |
| Depth | 96mm | |
| Break Time | Instantaneous | |
| Rated DC Voltage | 65 V dc | |
| Breaking Capacity | 2000A | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Current Rating 4 A | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Series TMC | ||
Range TMC | ||
Number of Poles 1 | ||
Width 12.5 mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Mount Hole Size 35 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Height 82.5mm | ||
Standards/Approvals EN 60934, UL 1077, CSA, EAC, RoHS, UL, VDE Zeichengenehmigung | ||
Rated AC Voltage 250 V ac | ||
Depth 96mm | ||
Break Time Instantaneous | ||
Rated DC Voltage 65 V dc | ||
Breaking Capacity 2000A | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker designed to provide reliable protection for your electrical systems. With a rated current of 4A, it is suitable for various applications. This circuit breaker features a thermal-magnetic tripping method, ensuring quick and effective circuit interruption in the event of overloads or short circuits. Its compact design and universal foot make it easy to mount on NS 32 or NS 35. With a rated voltage of 250V AC and 65V DC, this circuit breaker is built to handle various voltage levels. Its high short-circuit switching capacity of 400A ensures the safety of your electrical circuits.
Thermal-magnetic circuit breaker with 1 N/O contact
Versatile applications with 250 V AC and 65 V DC
Normal blow fuse type for reliable protection
High short-circuit switching capacity of 400 A
Insulated for overvoltage category II
Durable and flame-resistant construction
