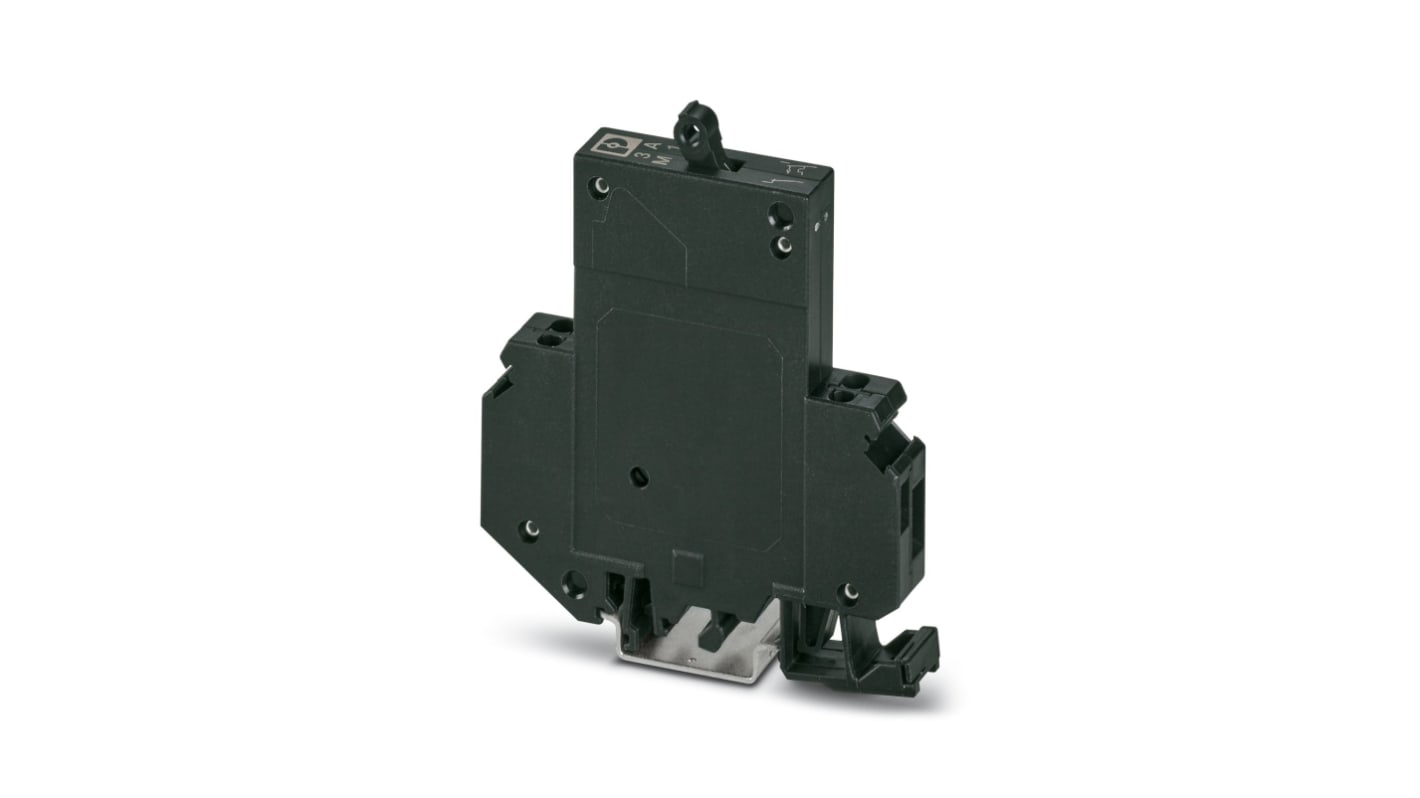

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 3A Current Rating, 2000 A, 250V ac, 65 V dc
- N° de stock RS:
- 135-489
- Référence fabricant:
- 0914659
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-489
- Référence fabricant:
- 0914659
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Current Rating | 3A | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Number of Poles | 1 | |
| Series | TMC | |
| Range | TMC | |
| Width | 12.5mm | |
| Mount Type | DIN Rail | |
| Mount Hole Size | 35 mm | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Standards/Approvals | EAC, VDE Zeichengenehmigung, EN 60934, UL, RoHS, UL 1077, CSA | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Rated AC Voltage | 250V ac | |
| Break Time | Instantaneous | |
| Breaking Capacity | 2000A | |
| Rated DC Voltage | 65V dc | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Current Rating 3A | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Number of Poles 1 | ||
Series TMC | ||
Range TMC | ||
Width 12.5mm | ||
Mount Type DIN Rail | ||
Mount Hole Size 35 mm | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Standards/Approvals EAC, VDE Zeichengenehmigung, EN 60934, UL, RoHS, UL 1077, CSA | ||
Depth 96mm | ||
Height 82.5mm | ||
Rated AC Voltage 250V ac | ||
Break Time Instantaneous | ||
Breaking Capacity 2000A | ||
Rated DC Voltage 65V dc | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker designed for reliable circuit protection. With a compact one-piece DIN rail module, it offers fast response for overcurrent and short-circuit conditions. The breaker features a normal blow, 1 N/C contact, and a universal foot for easy mounting on NS 32 or NS 35. It has a rated current of 3 A and can handle a rated voltage of 250 V AC and 65 V DC. With a rated surge voltage of 2.5 kV, it provides excellent insulation characteristics and reliable performance. The product is manufactured in Germany and complies with all relevant standards and regulations.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
