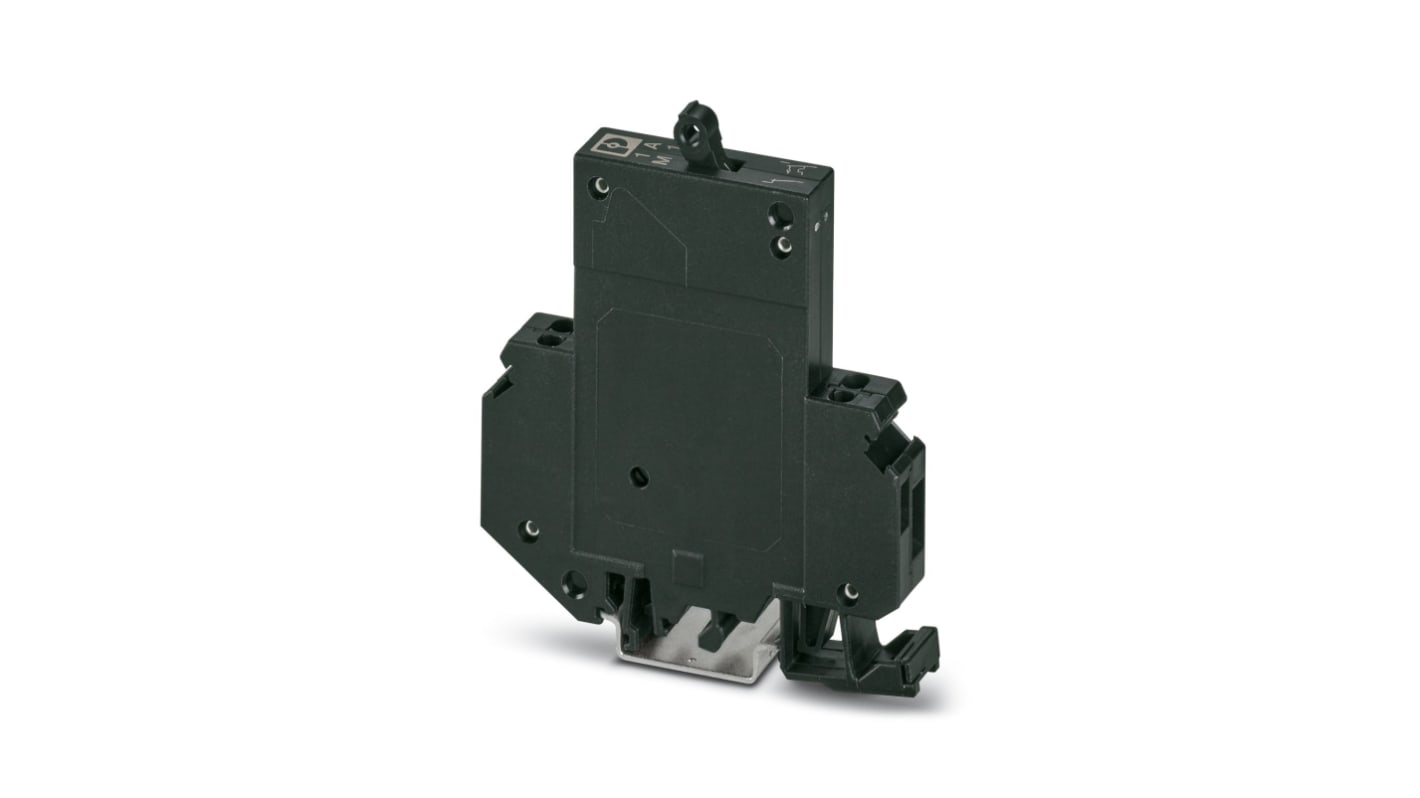

Phoenix Contact TMC TMC Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 1A Current Rating, 2000 A, 250V ac, 65 V dc
- N° de stock RS:
- 135-485
- Référence fabricant:
- 0914617
- Fabricant:
- Phoenix Contact
Sous-total (1 paquet de 6 unités)*
338,82 €
(TVA exclue)
409,97 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Paquet(s) | le paquet | Prix par unité* |
|---|---|---|
| 1 + | 338,82 € | 56,47 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 135-485
- Référence fabricant:
- 0914617
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Current Rating | 1A | |
| Range | TMC | |
| Series | TMC | |
| Number of Poles | 1 | |
| Width | 12.5mm | |
| Mount Type | DIN Rail | |
| Mount Hole Size | 35 mm | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Lever | |
| Tripping Characteristics | Type F1 | |
| Depth | 96mm | |
| Height | 82.5mm | |
| Standards/Approvals | CSA, RoHS, UL 1077, VDE Zeichengenehmigung, EAC, UL, EN 60934 | |
| Rated AC Voltage | 250V ac | |
| Rated DC Voltage | 65V dc | |
| Breaking Capacity | 2000A | |
| Break Time | Instantaneous | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Current Rating 1A | ||
Range TMC | ||
Series TMC | ||
Number of Poles 1 | ||
Width 12.5mm | ||
Mount Type DIN Rail | ||
Mount Hole Size 35 mm | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Lever | ||
Tripping Characteristics Type F1 | ||
Depth 96mm | ||
Height 82.5mm | ||
Standards/Approvals CSA, RoHS, UL 1077, VDE Zeichengenehmigung, EAC, UL, EN 60934 | ||
Rated AC Voltage 250V ac | ||
Rated DC Voltage 65V dc | ||
Breaking Capacity 2000A | ||
Break Time Instantaneous | ||
- Pays d'origine :
- DE
The Phoenix Contact thermomagnetic device circuit breaker is compact and reliable circuit breaker is designed for use in DIN rail modules and offers 1 position and 4 connections. It features a normal blow fuse type and a rated voltage of 250V AC and 65V DC. With a 1A rated current, it provides excellent surge voltage protection and a high short-circuit switching capacity. The device is easy to install, thanks to its universal foot for mounting on NS 32 or NS 35. It is an ideal solution for various applications that require reliable circuit protection.
Compact design for easy installation and integration
Universal foot for mounting
Thermal-magnetic circuit breaker for industrial applications
Provides efficient protection against overloads and short circuits
Complies with all necessary standards and regulations
Suitable for various applications that require reliable circuit protection
