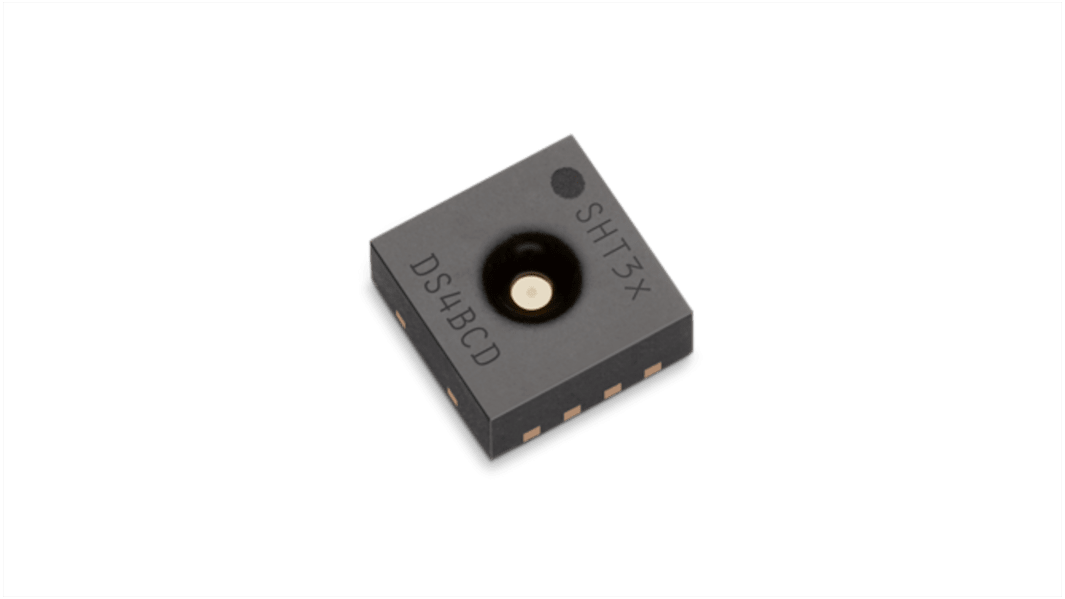

Sensirion SHT3xA-DIS Series, Digital Output Temperature & Humidity Sensor, Surface Mount, I2C, ±3 %, 8-Pin DFN
- N° de stock RS:
- 262-6166
- Référence fabricant:
- SHT30-DIS-B2.5kS
- Fabricant:
- Sensirion
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 2 unités)*
5,88 €
(TVA exclue)
7,12 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 078 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 2 - 8 | 2,94 € | 5,88 € |
| 10 - 98 | 2,06 € | 4,12 € |
| 100 - 498 | 2,00 € | 4,00 € |
| 500 - 998 | 1,95 € | 3,90 € |
| 1000 + | 1,91 € | 3,82 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 262-6166
- Référence fabricant:
- SHT30-DIS-B2.5kS
- Fabricant:
- Sensirion
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Sensirion | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Digital | |
| Sub Type | Sensor | |
| Interface Type | I2C | |
| Accuracy | ±3 % | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 2.4V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | DFN | |
| Series | SHT3xA-DIS | |
| Length | 2.5mm | |
| Height | 0.9mm | |
| Standards/Approvals | REACH, RoHS | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque Sensirion | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Digital | ||
Sub Type Sensor | ||
Interface Type I2C | ||
Accuracy ±3 % | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 2.4V | ||
Maximum Supply Voltage 5.5V | ||
Package Type DFN | ||
Series SHT3xA-DIS | ||
Length 2.5mm | ||
Height 0.9mm | ||
Standards/Approvals REACH, RoHS | ||
Automotive Standard AEC-Q100 | ||
- Pays d'origine :
- CH
The Sensirion is the next generation digital humidity and temperature sensor has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz.
Fully calibrated and temperature compensated digital output
Wide supply voltage range from 2.15 V to 5.5 V
I2C Interface
Typical accuracy of 1.5 %RH
Very fast start-up and measurement time
