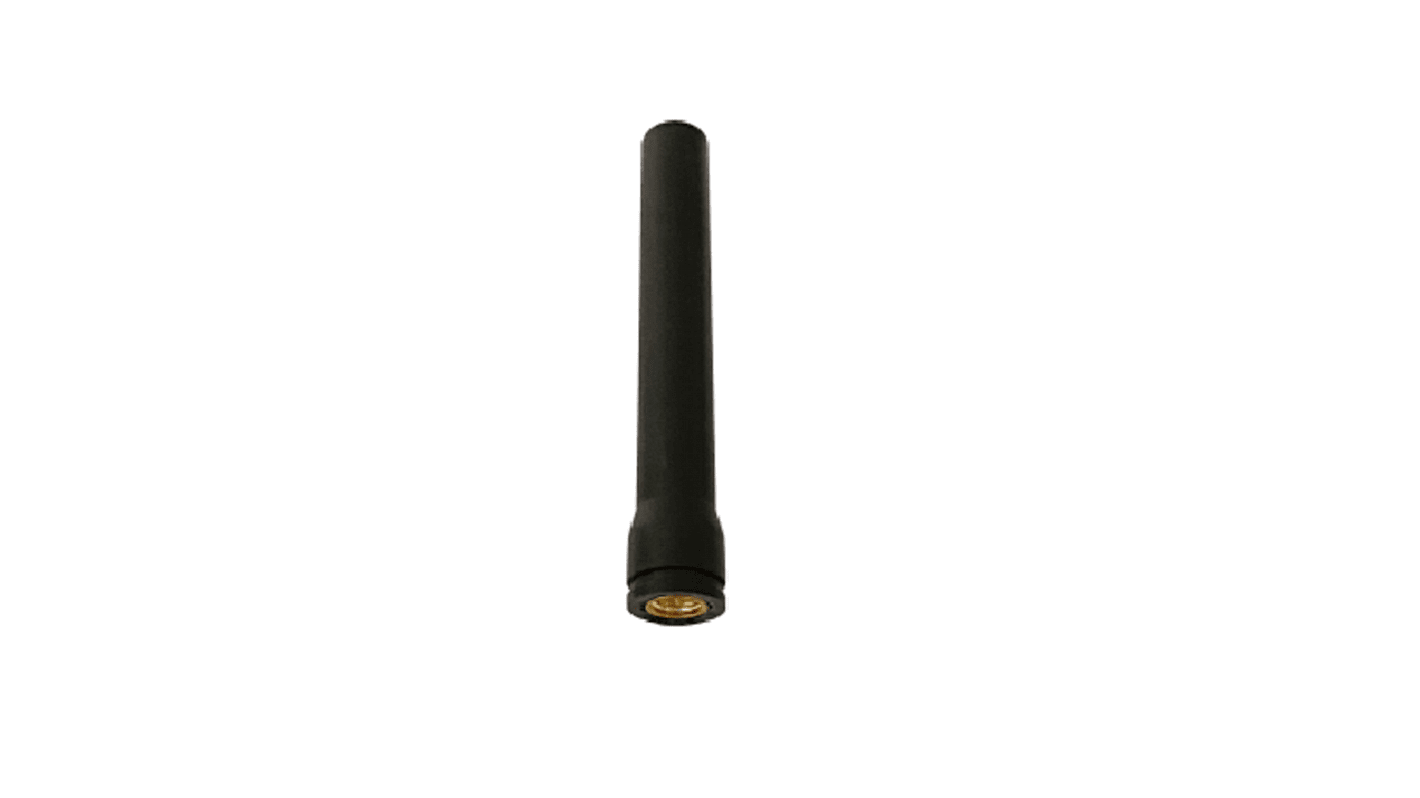

Siretta DELTA42/x/SMAM/S/S/17 Stubby Omni-Directional Antenna with SMA Connector, ISM Band
- N° de stock RS:
- 222-2683
- Référence fabricant:
- DELTA42/x/SMAM/S/S/17
- Fabricant:
- Siretta
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
15,37 €
(TVA exclue)
18,60 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 30 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 15,37 € |
| 10 - 24 | 14,14 € |
| 25 - 99 | 13,52 € |
| 100 - 249 | 11,93 € |
| 250 + | 11,34 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 222-2683
- Référence fabricant:
- DELTA42/x/SMAM/S/S/17
- Fabricant:
- Siretta
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siretta | |
| RF Protocols | ISM Band | |
| Product Type | Antenna | |
| Connector Type | SMA | |
| Antenna Physical Form | Stubby | |
| Antenna Mount Type | Direct | |
| Antenna Length | 78mm | |
| Gain | 2dBi | |
| Maximum Frequency | 480MHz | |
| Minimum Frequency | 400MHz | |
| Connector Gender | Male | |
| Directivity | Omni-Directional | |
| Standards/Approvals | EU, RoHS | |
| Series | REV1.0 | |
| Sélectionner tout | ||
|---|---|---|
Marque Siretta | ||
RF Protocols ISM Band | ||
Product Type Antenna | ||
Connector Type SMA | ||
Antenna Physical Form Stubby | ||
Antenna Mount Type Direct | ||
Antenna Length 78mm | ||
Gain 2dBi | ||
Maximum Frequency 480MHz | ||
Minimum Frequency 400MHz | ||
Connector Gender Male | ||
Directivity Omni-Directional | ||
Standards/Approvals EU, RoHS | ||
Series REV1.0 | ||
- Pays d'origine :
- TW
Siretta Antenna, 78mm Length, 2 dBi Gain - DELTA42/x/SMAM/S/S/17
This antenna provides Compact RF connectivity for devices operating within the ISM frequency range. It is a low-profile stub designed for direct attachment to equipment using an SMA male connector, offering omni-directional coverage for short- to medium-range wireless links in industrial and automation environments.
Features and Benefits:
• 400 to 480MHz frequency span for flexible band coverage
• 2dBi gain enhances uplink and downlink signal strength
• Omni-directional pattern supports uniform area coverage
• Direct-mount SMA male Interface simplifies installation
• 78mm overall length maintains a Compact footprint
• Complies with EU RoHS standards for regulated material content
• 2dBi gain enhances uplink and downlink signal strength
• Omni-directional pattern supports uniform area coverage
• Direct-mount SMA male Interface simplifies installation
• 78mm overall length maintains a Compact footprint
• Complies with EU RoHS standards for regulated material content
Applications
• Suitable for LPWAN sensor nodes in smart manufacturing
• Ideal for remote telemetry in electrical substations
• Used with ISM-band radio modules for automation control
• Can be used for IoT gateways requiring Compact antennas
• Used for vehicle-mounted RF links in mechanical testing rigs
• Ideal for remote telemetry in electrical substations
• Used with ISM-band radio modules for automation control
• Can be used for IoT gateways requiring Compact antennas
• Used for vehicle-mounted RF links in mechanical testing rigs
What connector type will mate with this antenna?
It uses an SMA male connector and mates with corresponding SMA female ports on transceivers and modules.
Which frequency range does it support for ISM applications?
It operates across a 400MHz to 480MHz span, covering typical sub-GHz ISM allocations for telemetry and control.
How does the antenna’s radiation pattern affect deployment?
The omni-directional pattern delivers near-uniform horizontal coverage, reducing the need for precise orientation during installation.
Is the antenna suited to installations with limited space?
Its stubby, low-profile form and 78mm length make it appropriate where clearance and compactness are required.
What protocols and use cases are compatible with this antenna?
It is intended for ISM band RF protocols and is appropriate for LPWAN and other sub-GHz IoT communications.
