Siretta DELTA43/x/SMAM/S/S/17 Whip Omni-Directional Antenna with SMA Connector, ISM Band
- N° de stock RS:
- 222-2685
- Référence fabricant:
- DELTA43/x/SMAM/S/S/17
- Fabricant:
- Siretta
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
16,66 €
(TVA exclue)
20,16 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 22 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 16,66 € |
| 10 - 24 | 15,25 € |
| 25 - 99 | 14,69 € |
| 100 - 249 | 12,86 € |
| 250 + | 12,17 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 222-2685
- Référence fabricant:
- DELTA43/x/SMAM/S/S/17
- Fabricant:
- Siretta
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siretta | |
| RF Protocols | ISM Band | |
| Product Type | Antenna | |
| Connector Type | SMA | |
| Antenna Physical Form | Whip | |
| Antenna Length | 205mm | |
| Antenna Mount Type | Direct | |
| Gain | 2.5dBi | |
| Maximum Frequency | 480MHz | |
| Connector Gender | Male | |
| Minimum Frequency | 400MHz | |
| Directivity | Omni-Directional | |
| Standards/Approvals | Meets all EU criteria for electronic goods | |
| Series | Delta 43 Rev 1.0 | |
| Sélectionner tout | ||
|---|---|---|
Marque Siretta | ||
RF Protocols ISM Band | ||
Product Type Antenna | ||
Connector Type SMA | ||
Antenna Physical Form Whip | ||
Antenna Length 205mm | ||
Antenna Mount Type Direct | ||
Gain 2.5dBi | ||
Maximum Frequency 480MHz | ||
Connector Gender Male | ||
Minimum Frequency 400MHz | ||
Directivity Omni-Directional | ||
Standards/Approvals Meets all EU criteria for electronic goods | ||
Series Delta 43 Rev 1.0 | ||
Siretta Delta 43 Rev 1.0 Series Antenna, 205mm Length, 2.50dBi Gain - DELTA43/x/SMAM/S/S/17

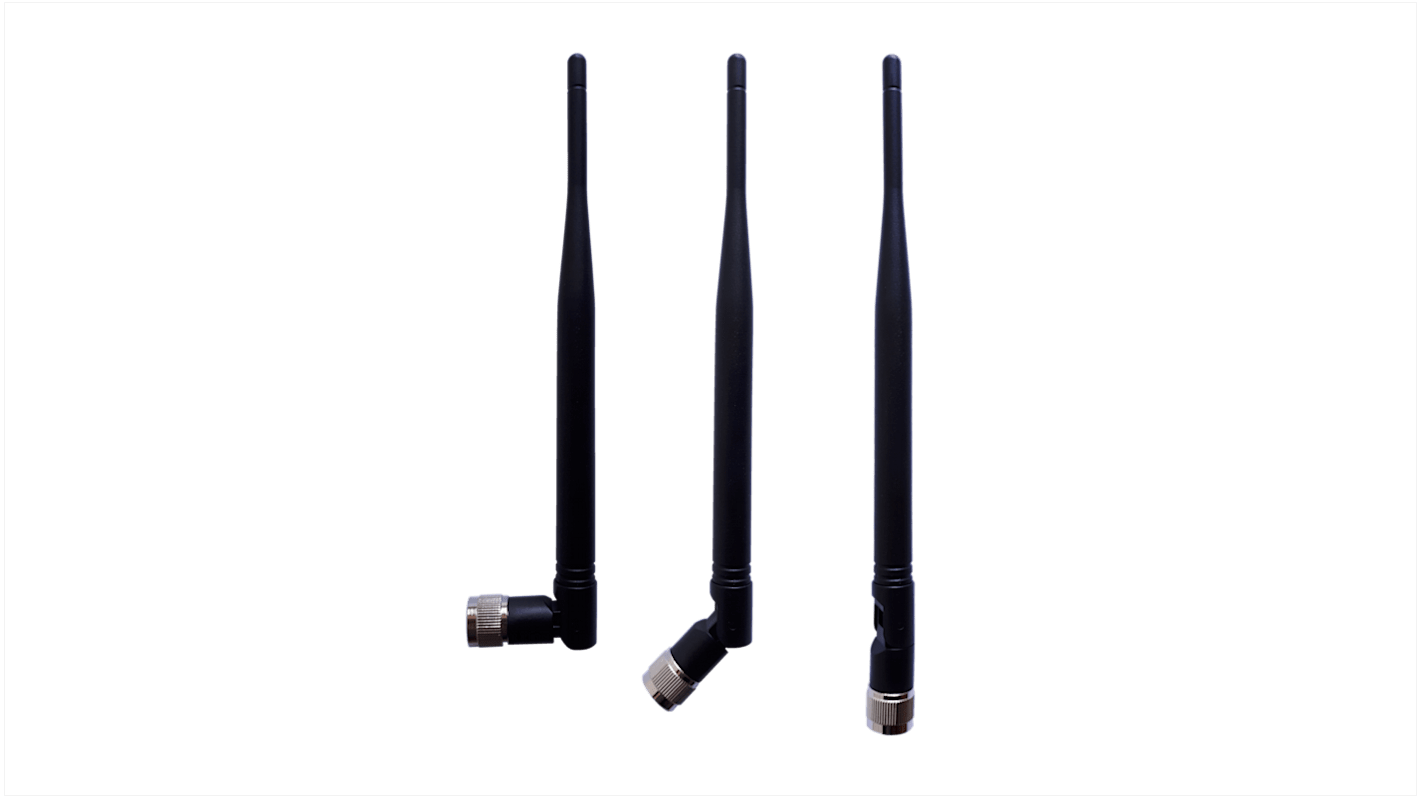

This Siretta DELTA43/x/SMAM/S/S/17 antenna is a Compact direct-mount whip designed for ISM band radio links operating across the 400–480 MHz range. It attaches directly via an SMA male connector and provides omnidirectional coverage with a swivel knuckle for adjustable orientation. The device is specified for typical deployments where a small form factor and configurable alignment aid signal reception in remote reading and Terminal applications.
Features and Benefits:
• 2.5 dBi Peak gain improves link margin and reception range
• 50 ohm impedance minimises mismatch loss for RF systems
• VSWR greater than or equal to 1.5:1 reduces reflected power and enhances efficiency
• Vertical polarisation aligns with common handheld receivers
• 50 W maximum input power supports moderate transmitter outputs
• 50 ohm impedance minimises mismatch loss for RF systems
• VSWR greater than or equal to 1.5:1 reduces reflected power and enhances efficiency
• Vertical polarisation aligns with common handheld receivers
• 50 W maximum input power supports moderate transmitter outputs
Applications
• Suitable for smart water meter remote-reading systems
• Ideal for Terminal devices requiring ISM connectivity
• Used with industrial telemetry and monitoring equipment
• Can be used for handheld receiver-linked data collection
• Suitable for OEM devices needing direct-attach antennas
• Ideal for Terminal devices requiring ISM connectivity
• Used with industrial telemetry and monitoring equipment
• Can be used for handheld receiver-linked data collection
• Suitable for OEM devices needing direct-attach antennas
What environmental temperatures can it operate within?
It operates reliably between -20°C and +65°C.
What is the antennas radiation pattern characteristic?
It provides omnidirectional radiation for uniform azimuth coverage.
How heavy is the antenna and what is its form factor?
It weighs 40 g and is supplied as a whip with a swivel knuckle.
What connector and mounting method are provided?
It uses an SMA male connector and a direct-connect mounting method.
