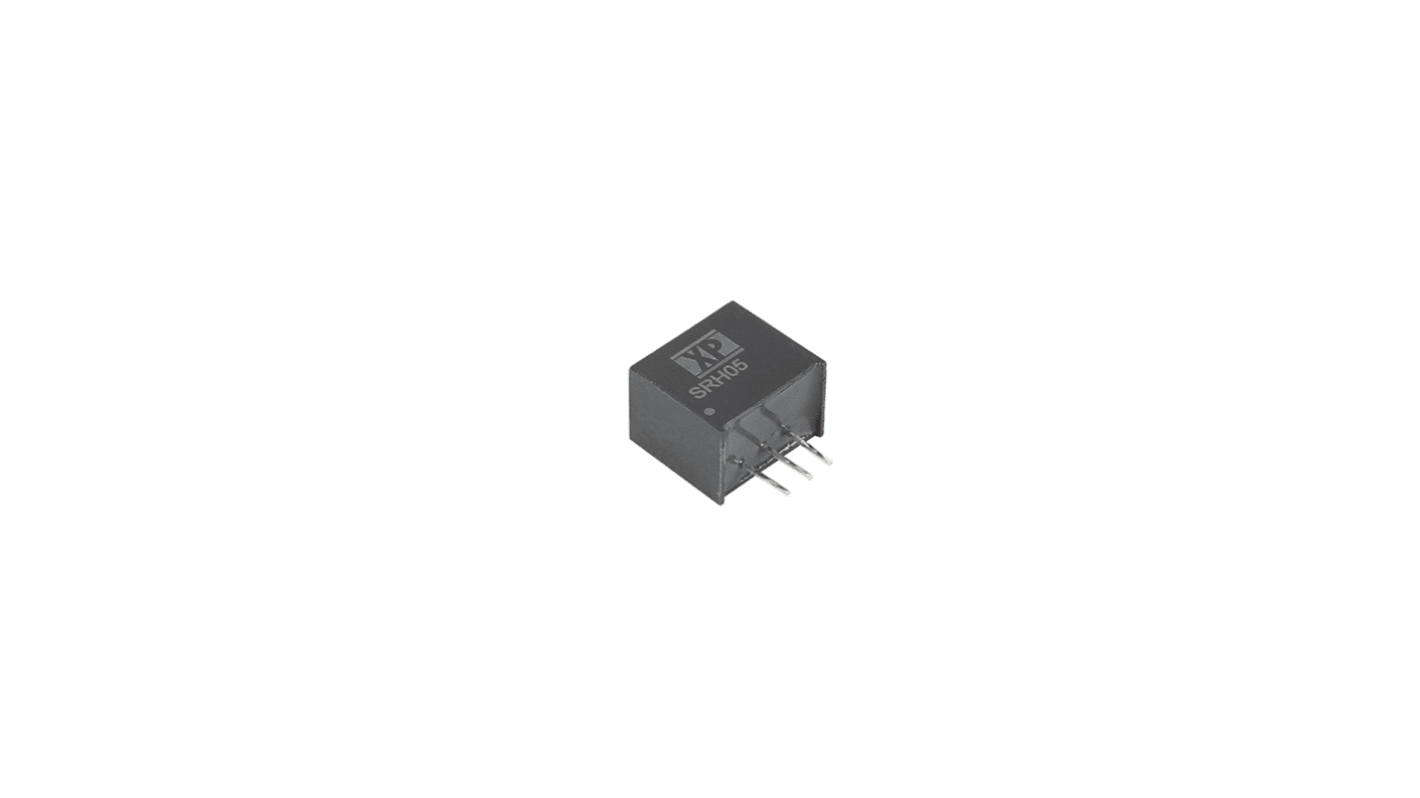

XP Power DC/DC Switching Regulator, Through Hole, 7.2 V dc Output Voltage 72V dc, 500 mA Output Current, 1 Outputs
- N° de stock RS:
- 174-4665
- Numéro d'article Distrelec:
- 304-31-070
- Référence fabricant:
- SRH05S7V2
- Fabricant:
- XP Power
Offre groupée disponible
Sous-total (1 tube de 40 unités)*
323,28 €
(TVA exclue)
391,17 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Tube(s) | le tube | Prix par unité* |
|---|---|---|
| 1 - 4 | 323,28 € | 8,082 € |
| 5 - 9 | 313,58 € | 7,84 € |
| 10 - 24 | 303,88 € | 7,597 € |
| 25 - 49 | 294,18 € | 7,355 € |
| 50 + | 284,49 € | 7,112 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 174-4665
- Numéro d'article Distrelec:
- 304-31-070
- Référence fabricant:
- SRH05S7V2
- Fabricant:
- XP Power
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | XP Power | |
| Output Voltage 1 | 7.2 V dc | |
| Product Type | DC/DC Switching Regulator | |
| Output Current | 500mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Efficiency | 91% | |
| Ripple and Noise | 75mV Pk-Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Number of Pins | 3 | |
| Series | SRH05 | |
| Line Regulation | 0.01 % | |
| Package Type | SIP | |
| Standards/Approvals | EN 61000-4-8, EN 55032, MIL-HDBK-217FSwitching Frequency Range, EN 61000-4-2, EN 61000-4-4, EN 61000-4-3, EN 61000-4-5, EN 61000-4-6 | |
| Weight | 2.1g | |
| Width | 10.16 mm | |
| Length | 11.68mm | |
| Depth | 7.5mm | |
| Maximum Input Voltage | 72V dc | |
| Load Regulation | 0.006 % | |
| Minimum Input Voltage | 14V | |
| MTBF | 4.5mH | |
| Sélectionner tout | ||
|---|---|---|
Marque XP Power | ||
Output Voltage 1 7.2 V dc | ||
Product Type DC/DC Switching Regulator | ||
Output Current 500mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Efficiency 91% | ||
Ripple and Noise 75mV Pk-Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Number of Pins 3 | ||
Series SRH05 | ||
Line Regulation 0.01 % | ||
Package Type SIP | ||
Standards/Approvals EN 61000-4-8, EN 55032, MIL-HDBK-217FSwitching Frequency Range, EN 61000-4-2, EN 61000-4-4, EN 61000-4-3, EN 61000-4-5, EN 61000-4-6 | ||
Weight 2.1g | ||
Width 10.16 mm | ||
Length 11.68mm | ||
Depth 7.5mm | ||
Maximum Input Voltage 72V dc | ||
Load Regulation 0.006 % | ||
Minimum Input Voltage 14V | ||
MTBF 4.5mH | ||
3 Pin Switching Regulator
SIP Package
Ultra Wide Input Range to 72 V
-40 °C to +85 °C Operation
Full Load to 60 °C Ambient
MTBF >4.5 MHrs
3 Year Warranty
