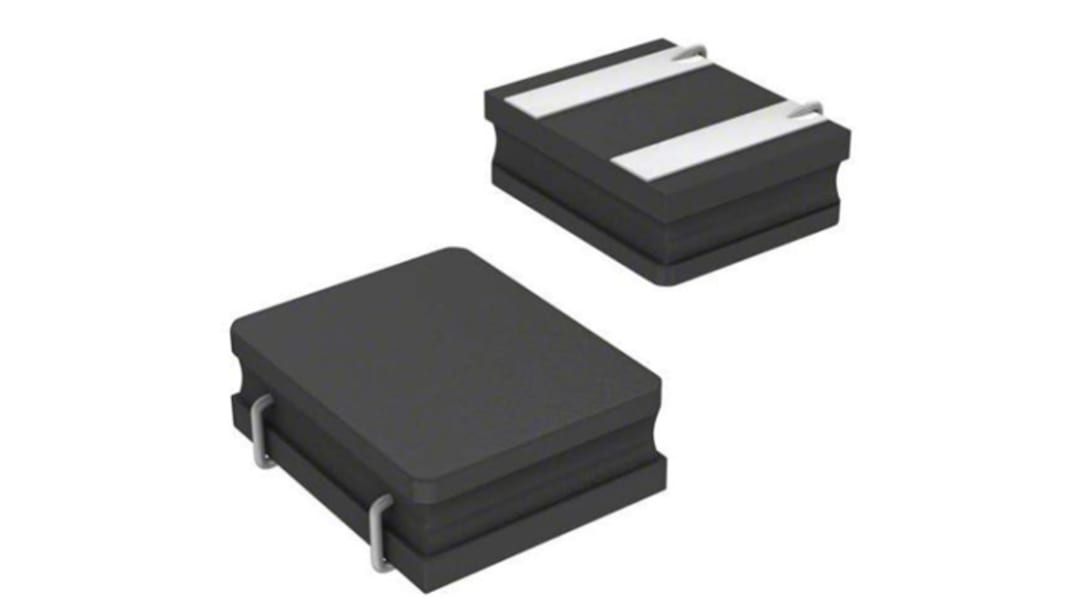

Murata, LQH, 2520 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 22 μH ±20 % 540 mA Idc
- N° de stock RS:
- 879-0723
- Référence fabricant:
- LQH2HPZ220MJRL
- Fabricant:
- Murata
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 sachet de 10 unités)*
4,30 €
(TVA exclue)
5,20 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 09 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Le Sachet* |
|---|---|---|
| 10 - 90 | 0,43 € | 4,30 € |
| 100 - 240 | 0,405 € | 4,05 € |
| 250 - 490 | 0,376 € | 3,76 € |
| 500 - 990 | 0,351 € | 3,51 € |
| 1000 + | 0,321 € | 3,21 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 879-0723
- Référence fabricant:
- LQH2HPZ220MJRL
- Fabricant:
- Murata
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Murata | |
| Inductance | 22μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 540mA | |
| Package/Case | 2520 | |
| Packaging | Embossed Tape | |
| Length | 2.5mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum DC Resistance | 1000mΩ | |
| Series | LQH | |
| Inductance Tolerance | ±20 % | |
| Height | 1.1mm | |
| Standards/Approvals | RoHS | |
| Depth | 2mm | |
| Termination Style | Solder | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 20MHz | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Sélectionner tout | ||
|---|---|---|
Marque Murata | ||
Inductance 22μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 540mA | ||
Package/Case 2520 | ||
Packaging Embossed Tape | ||
Length 2.5mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum DC Resistance 1000mΩ | ||
Series LQH | ||
Inductance Tolerance ±20 % | ||
Height 1.1mm | ||
Standards/Approvals RoHS | ||
Depth 2mm | ||
Termination Style Solder | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 20MHz | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
LQH2HP Series SMD Chip Inductors
Murata LQH Series Wirewound Inductors are used for their high inductance and low DC resistance features. The series is composed of a ferrite core around which a copper wire is wound. Many models are resin-coated for added strength. LQH inductors are Ideal for use in large current and high inductance applications such as mobile phones, TV, and digital cameras.
Murata Non Standard SMT Inductors (Chokes)
